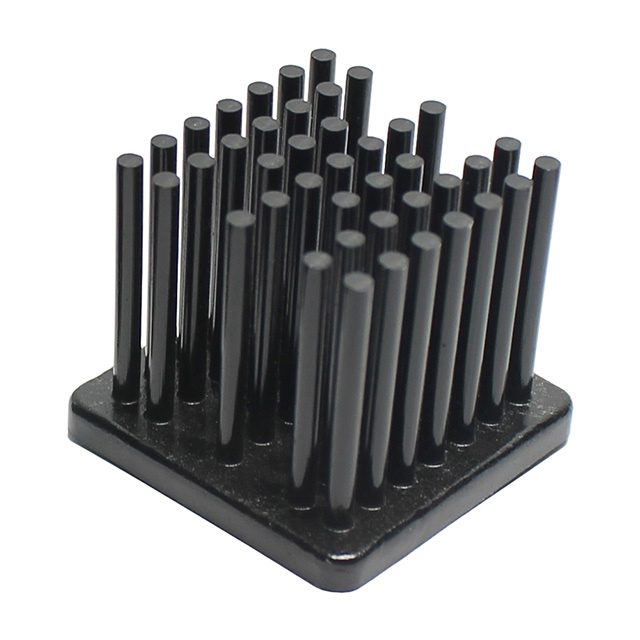

APR25 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Material Finish	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow	Package Cooled	Attachment Method	Length	Length	Fin Height [z]	Fin Height [z]	Type	Shape	Material	Width [y]	Width [y]	Fin Height	Fin Height	Fin Height [custom]	Fin Height [custom]	Fin Height [custom]	Fin Height [custom]
CTS Thermal Management Products APR25-25-28CB/A01	24 Months	Black Anodized	11.32 °C/W	3.77 °C/W	ASIC BGA CPU LGA	Thermal Tape Adhesive (Included)	0.969 in	24.61 mm	27.6 mm	1.087 in	Top Mount	Pin Fins Square	Aluminum Alloy	0.969 in	24.61 mm
CTS Thermal Management Products APR25-25-33CB/A01	24 Months	Black Anodized	10.78 °C/W	3.46 °C/W	ASIC BGA CPU LGA	Thermal Tape Adhesive (Included)	0.969 in	24.61 mm			Top Mount	Pin Fins Square	Aluminum Alloy	0.969 in	24.61 mm	1.283 in	32.6 mm
CTS Thermal Management Products APR25-25-18CB/A01	24 Months	Black Anodized	12.97 °C/W	4.78 °C/W	ASIC BGA CPU LGA	Thermal Tape Adhesive (Included)	0.969 in	24.61 mm			Top Mount	Pin Fins Square	Aluminum Alloy	0.969 in	24.61 mm	0.693 in	17.6 mm
CTS Thermal Management Products APR25-25-21CB/A01	24 Months	Black Anodized	12.61 °C/W	4.46 °C/W	ASIC BGA CPU LGA	Thermal Tape Adhesive (Included)	0.969 in	24.61 mm			Top Mount	Pin Fins Square	Aluminum Alloy	0.969 in	24.61 mm	0.811 in	20.6 mm
CTS Thermal Management Products APR25-25-12CB/A01	24 Months	Black Anodized	13.7 °C/W	5.5 °C/W	ASIC BGA CPU LGA	Thermal Tape Adhesive (Included)	0.969 in	24.61 mm			Top Mount	Pin Fins Square	Aluminum Alloy	0.969 in	24.61 mm			0.457 in	11.6 mm
CTS Thermal Management Products APR25-25-23CB/A01	24 Months	Black Anodized	12.21 °C/W	4.14 °C/W	ASIC BGA CPU LGA	Thermal Tape Adhesive (Included)	0.969 in	24.61 mm			Top Mount	Pin Fins Square	Aluminum Alloy	0.969 in	24.61 mm					22.61 mm	0.89 in
CTS Thermal Management Products APR25-25-15CB/A01	24 Months	Black Anodized	13.35 °C/W	5.14 °C/W	ASIC BGA CPU LGA	Thermal Tape Adhesive (Included)	0.969 in	24.61 mm			Top Mount	Pin Fins Square	Aluminum Alloy	0.969 in	24.61 mm		14.6 mm	0.575 in
