KAN1102 Series

Manufacturer: E-Switch

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Electrical Life	Mechanical Life	Length	Length	Body Material	Voltage Rating	Circuit	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Type	Height Above Board [z]	Height Above Board [z]	Washable	Mounting Type	Current Rating (Amps)	Contact Finish	Actuator Level	Number of Positions	Pitch	Pitch	Pitch	Contact Material

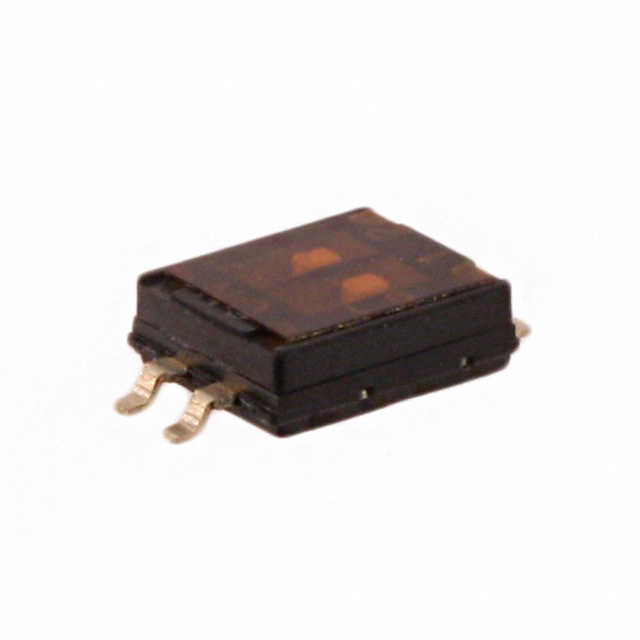

E-Switch KAN1102RR	2000 Steps	2000 Cycles	3.77 mm	0.148 in	Polyphenylene Sulfide (PPS)	24 VDC	SPST	Gull Wing	85 °C	-40 C	Tape Seal	Slide (Standard)	1.6 mm	0.063 in		Surface Mount	25 mA	Gold	Flush Recessed	2	0.05 "	1.27 mm	Half	Copper Alloy
E-Switch KAN1102RT	2000 Steps	2000 Cycles	3.77 mm	0.148 in	Polyphenylene Sulfide (PPS)	24 VDC	SPST	Gull Wing	85 °C	-40 C	Tape Seal	Slide (Standard)	1.6 mm	0.063 in		Surface Mount	25 mA	Gold	Flush Recessed	2	0.05 "	1.27 mm	Half	Copper Alloy
