HDSP-550 Series

Catalog

DISP 7SEG 0.56" OV/FL RED 10DIP

Part	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Common Pin	Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Package / Case	Package / Case	Number of Characters	Current - Test	Wavelength - Peak	Display Type	Number of Characters
Broadcom Limited HDSP-5508-GH000	2.8 mcd	2.1 V	0.56 in	14.22 mm	105 mW	Common Cathode	Red	0.67 in	0.495 "	12.57 mm	17.02 mm	0.315 in	8 mm	0.6 in 9 Leads	10-DIP	15.24 mm	+/-1	20 mA	635 nm	7-Segment

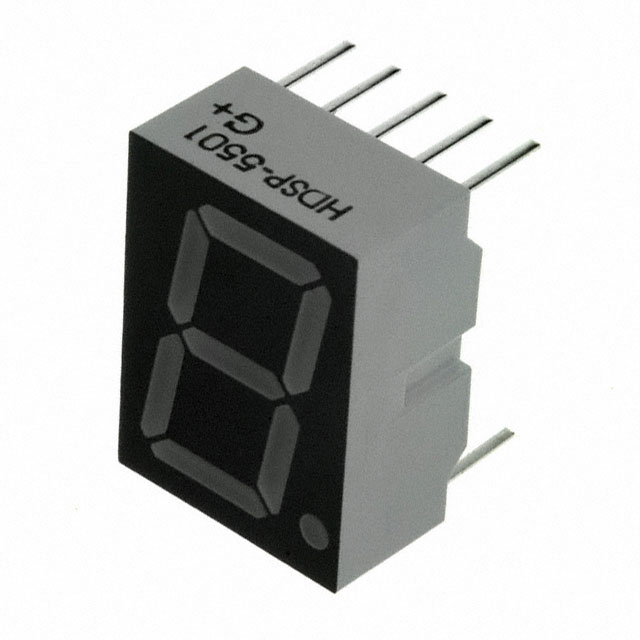

Broadcom Limited HDSP-5501-GH000	2.8 mcd	2.1 V	0.56 in	14.22 mm	105 mW	Common Anode	Red	0.67 in	0.495 "	12.57 mm	17.02 mm	0.315 in	8 mm	0.6 in 15.24 mm	10-DIP			20 mA	635 nm	7-Segment	1
Broadcom Limited HDSP-5507	2.8 mcd	2.1 V	0.56 in	14.22 mm	105 mW	Common Anode	Red	0.67 in	0.495 "	12.57 mm	17.02 mm	0.315 in	8 mm	0.6 in 9 Leads	10-DIP	15.24 mm	+/-1	20 mA	635 nm	7-Segment
Broadcom Limited HDSP-5507-GH000	2.8 mcd	2.1 V	0.56 in	14.22 mm	105 mW	Common Anode	Red	0.67 in	0.495 "	12.57 mm	17.02 mm	0.315 in	8 mm	0.6 in 9 Leads	10-DIP	15.24 mm	+/-1	20 mA	635 nm	7-Segment

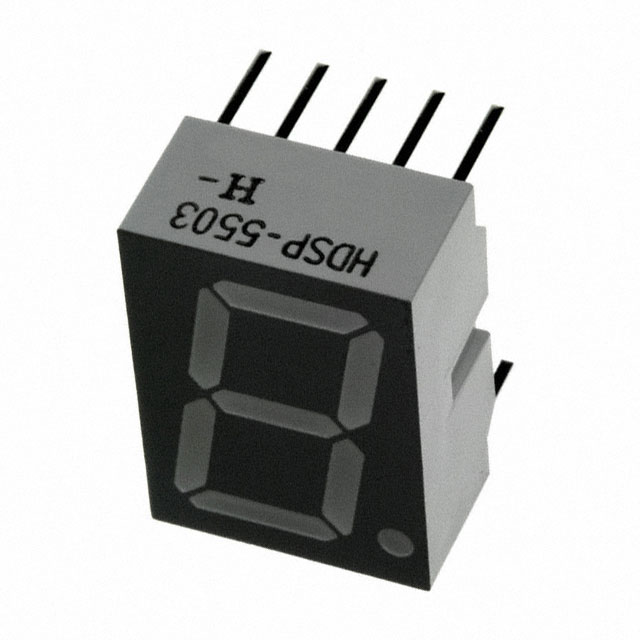

Broadcom Limited HDSP-5503-GH000	2.8 mcd	2.1 V	0.56 in	14.22 mm	105 mW	Common Cathode	Red	0.67 in	0.495 "	12.57 mm	17.02 mm	0.315 in	8 mm	0.6 in 15.24 mm	10-DIP			20 mA	635 nm	7-Segment	1
