RT6276 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC REG BUCK ADJ 6A 12UQFN
| Part | Voltage - Output (Max) [Max] | Number of Outputs | Output Configuration | Supplier Device Package | Voltage - Input (Max) [Max] | Frequency - Switching | Current - Output | Package / Case | Topology | Mounting Type | Output Type | Synchronous Rectifier | Voltage - Output (Min/Fixed) | Function | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Main Purpose | Contents | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Voltage - Output [Min] | Voltage - Output [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 5.1 V | 1 | Positive | 12-UQFN-HL (3x3) | 23 V | 500 kHz | 6 A | 12-UFQFN | Buck | Surface Mount | Adjustable | 0.6 V | Step-Down | 85 C | -40 ¯C | 4.5 V | |||||||||||||

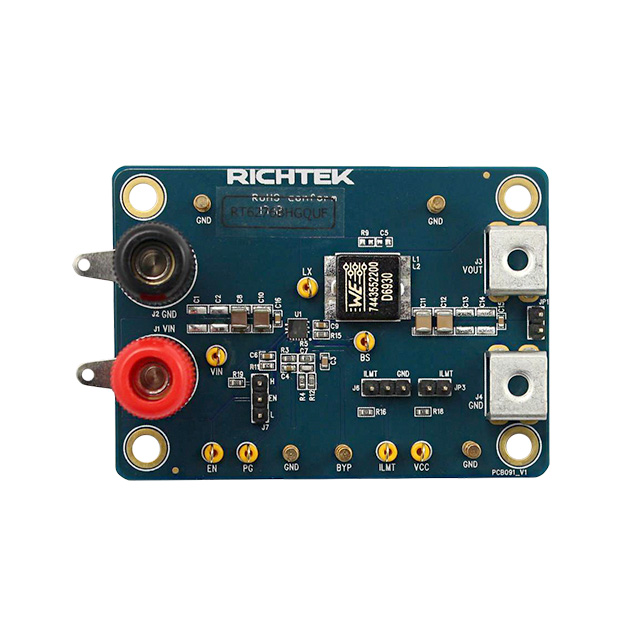

 Richtek USA Inc. | 500 kHz | 6 A | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | DC/DC Step Down | Board(s) | Buck | 4.5 V | 23 V | RT6276B | 0.6 V | 5.1 V |
