9CRA0412 Series

Catalog

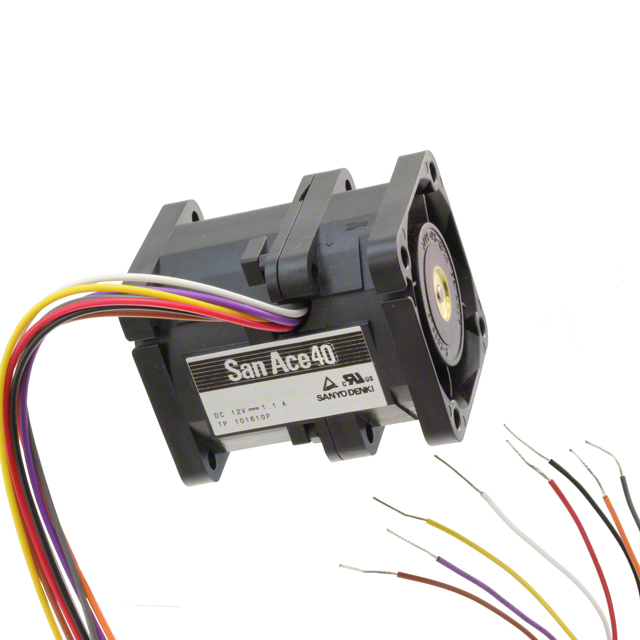

FAN AXIAL DUAL 40X56MM 12VDC

Part	Lifetime @ Temp.	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Current Rating (Amps)	Noise	Power (Watts)	Voltage - Rated	Width [y]	RPM [custom]	RPM [custom]	Termination	Fan Type	Weight	Weight	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Features	RPM
Sanyo Denki America Inc. 9CRA0412K501	40000 Hrs	Plastic	10.8 VDC	12.6 VDC	Plastic	1.8 A	65 dB	21.6 W	12 VDC	56 mm	13000 RPM	17000 RPM	3	Tubeaxial (Dual)	0.199 lb	90.26 g	2.61 in H2O	650.1 Pa	40 mm	40 mm	Ball	0.938 mł/min	33.5 CFM	60 °C	60 °C	-4 °F	-20 ░C	cURus TUV
Sanyo Denki America Inc. 9CRA0412J401	40000 Hrs	Plastic	10.8 VDC	13.2 VDC	Plastic	1.2 A	62 dB(A)	14.4 W	12 VDC	48 mm	10800 RPM	16200 RPM	3	Tubeaxial (Dual)	0.176 lb	80 g	2.25 in H2O	560 Pa	40 mm	40 mm	Ball	0.84 mł/min	30 CFM		70 °C		-20 ░C	cURus TUV	Counter-Rotating Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9CRA0412P5J03	40000 Hrs	Plastic	10.8 VDC	13.2 VDC	Plastic	1.4 A	62 dB(A)	16.8 W	12 VDC	56 mm	12200 RPM	15800 RPM	4	Tubeaxial (Dual)	0.199 lb	90.26 g			40 mm	40 mm	Ball	0.89 m³/min	31.8 CFM		70 °C		-20 ░C	CSA TUV UL
Sanyo Denki America Inc. 9CRA0412P5G03	40000 Hrs	Plastic	10.8 VDC	13.2 VDC	Plastic	1 A	59 dB(A)	12 W	12 VDC	56 mm			4	Tubeaxial (Dual)	0.199 lb	90.26 g	1.75 in H2O	435.9 Pa	40 mm	40 mm	Ball	0.762 m³/min	27.2 CFM		70 °C		-20 ░C	CSA TUV UL		10400 14000
Sanyo Denki America Inc. 9CRA0412P5K03	40000 Hrs	Plastic	10.8 VDC	12.6 VDC	Plastic	1.8 A	65 dB	21.6 W	12 VDC	56 mm	13000 RPM	17000 RPM	4	Tubeaxial (Dual)	0.199 lb	90.26 g	2.61 in H2O	650.1 Pa	40 mm	40 mm	Ball	0.938 mł/min	33.5 CFM	60 °C	60 °C	-4 °F	-20 ░C	CSA TUV UL
Sanyo Denki America Inc. 9CRA0412K401	40000 Hrs	Plastic	10.8 VDC	13.2 VDC	Plastic	1.6 A	64 dB(A)	19.2 W	12 VDC	48 mm	11700 RPM	17500 RPM	3	Tubeaxial (Dual)	0.176 lb	80 g	2.61 in H2O	650.1 Pa	40 mm	40 mm	Ball	0.91 mł/min	32.5 CFM		70 °C		-20 ░C	cURus TUV	Counter-Rotating Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9CRA0412P4K03	40000 Hrs	Plastic	10.8 VDC	13.2 VDC	Plastic	1.6 A	64 dB(A)	19.2 W	12 VDC	48 mm	11700 RPM	17500 RPM	4	Tubeaxial (Dual)	0.176 lb	80 g	2.61 in H2O	650.1 Pa	40 mm	40 mm	Ball	0.91 mł/min	32.5 CFM		70 °C		-20 ░C	cURus TUV	Counter-Rotating Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9CRA0412K402	40000 Hrs	Plastic	10.8 VDC	13.2 VDC	Plastic	1.6 A	64 dB(A)	19.2 W	12 VDC	48 mm	11700 RPM	17500 RPM	2	Tubeaxial (Dual)	0.176 lb	80 g	2.61 in H2O	650.1 Pa	40 mm	40 mm	Ball	0.91 mł/min	32.5 CFM		70 °C		-20 ░C	cURus TUV	Counter-Rotating Locked Rotor Protection
Sanyo Denki America Inc. 9CRA0412J402	40000 Hrs	Plastic	10.8 VDC	13.2 VDC	Plastic	1.2 A	62 dB(A)	14.4 W	12 VDC	48 mm	10800 RPM	16200 RPM	2	Tubeaxial (Dual)	0.176 lb	80 g	2.25 in H2O	560 Pa	40 mm	40 mm	Ball	0.84 mł/min	30 CFM		70 °C		-20 ░C	cURus TUV	Counter-Rotating Locked Rotor Protection
Sanyo Denki America Inc. 9CRA0412G502	40000 Hrs	Plastic	10.8 VDC	13.2 VDC	Plastic	1 A	59 dB(A)	12 W	12 VDC	56 mm			2	Tubeaxial (Dual)	0.199 lb	90.26 g	1.75 in H2O	435.9 Pa	40 mm	40 mm	Ball	0.762 m³/min	27.2 CFM		70 °C		-20 ░C	cURus TUV	Counter-Rotating	10400 14000
