29052 Series
Manufacturer: Phoenix Contact
Beta
⌘K

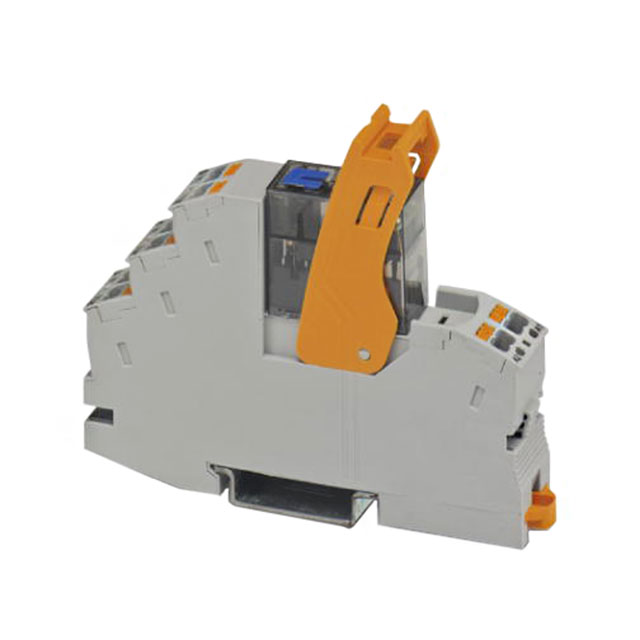

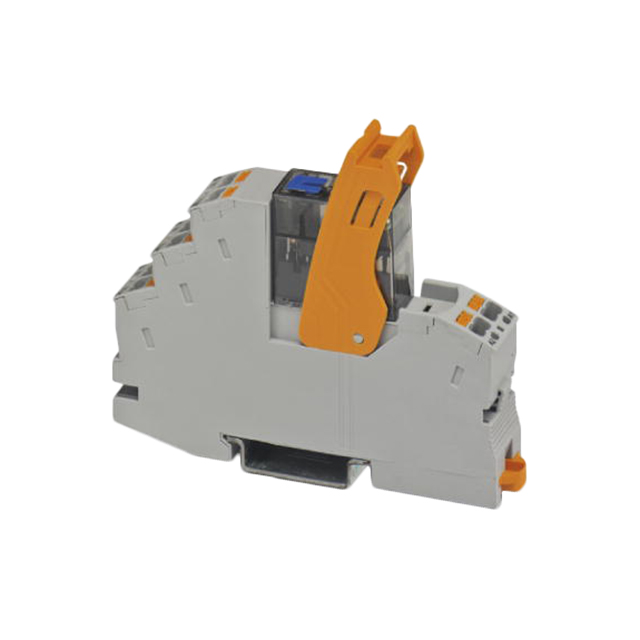

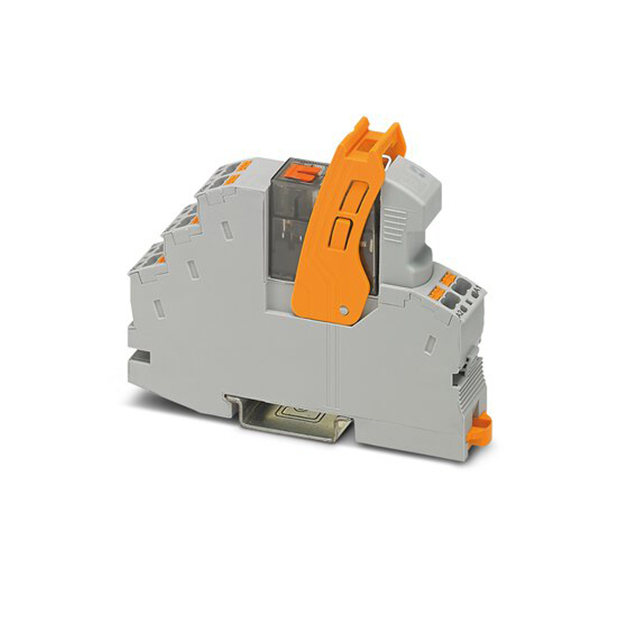

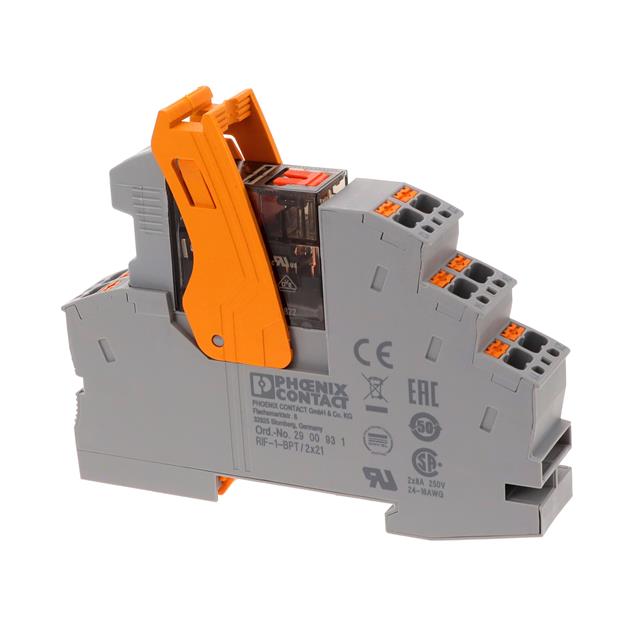

RELAY GEN PURPOSE DPDT 8.5A 230V
| Part | Coil Resistance | Contact Form | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Switching Voltage | Approval Agency | Release Time | Contact Material | Contact Rating (Current) | Relay Type | Operate Time | Coil Voltage | Coil Current | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 65.71 kOhms | DPDT (2 Form C) | DIN Rail | Lighted Indicator Socket Included Varistor | 45 °C | -40 C | Spring Terminal | 250 VAC 250 VDC | CSA | 20 ms | Silver Nickel (AgNi) | 8.5 A | General Purpose | 10 ms | 230 VAC | 3.5 mA | Non Latching |
 Phoenix Contact | 65.71 kOhms | SPDT (1 Form C) | DIN Rail | Lighted Indicator Socket Included Varistor | 50 °C | -40 C | Spring Terminal | 250 VAC 250 VDC | CSA | 20 ms | Silver Nickel (AgNi) | 10 A | General Purpose | 10 ms | 230 VAC | 3.5 mA | Non Latching |
 Phoenix Contact | 1.33 kOhms | SPDT (1 Form C) | DIN Rail | Diode Lighted Indicator Socket Included | 60 °C | -40 C | Spring Terminal | 250 VAC 250 VDC | CSA | 10 ms | Silver Nickel (AgNi) | 10 A | General Purpose | 9 ms | 24 VDC | 18 mA | Non Latching |
 Phoenix Contact | 1.33 kOhms | DPDT (2 Form C) | DIN Rail | Diode Lighted Indicator Socket Included | 60 °C | -40 C | Spring Terminal | 250 VAC 250 VDC | CSA | 10 ms | Silver Nickel (AgNi) | 8.5 A | General Purpose | 9 ms | 24 VDC | 18 mA | Non Latching |
