CWR-280 Series

Catalog

CONN D-SUB RCPT 9POS IDC

Part	Wire Gauge [Max]	Wire Gauge [Min]	Color	Contact Material	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Termination	Material Flammability Rating	Features	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Number of Rows [custom]	Contact Type	Connector Type	Mounting Type	Number of Positions	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Size, Connector Layout [x]
CW Industries CWR-280-09-0003	30 AWG	27.5 AWG	Blue	Phosphor Bronze	Thermoplastic	1	DE E	Tin	IDC Ribbon Cable	UL94 V-0	Feed Through Shielded Strain Relief	2.54 µm	100 µin	Housing/Shell (Unthreaded)	2	Signal	Receptacle Male Pins	Free Hanging (In-Line)	9	D-Sub

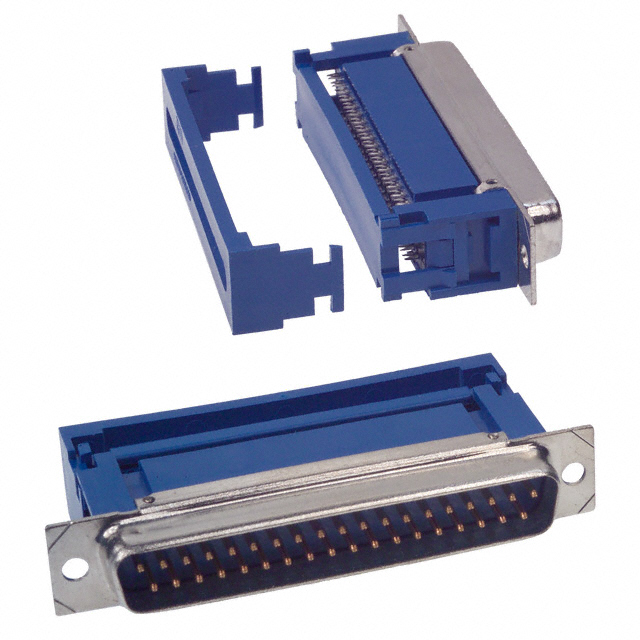

CW Industries CWR-280-37-0000	30 AWG	27.5 AWG	Blue	Phosphor Bronze	Thermoplastic			Gold	IDC Ribbon Cable	UL94 V-0	Feed Through Shielded Strain Relief	0.25 Ám	10 Áin	Housing/Shell (Unthreaded)	2	Signal	Receptacle Male Pins	Free Hanging (In-Line)	37	D-Sub	4	DC C

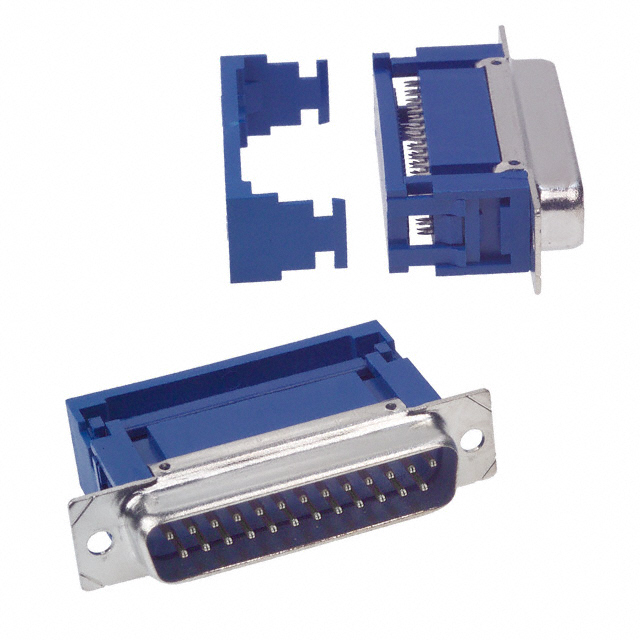

CW Industries CWR-280-25-0021	30 AWG	27.5 AWG	Blue	Phosphor Bronze	Thermoplastic			Gold	IDC Ribbon Cable	UL94 V-0	Feed Through Shielded Strain Relief	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	2	Signal	Receptacle Male Pins	Free Hanging (In-Line)	25	D-Sub		B DB	3
CW Industries CWR-280-09-0203	30 AWG	27.5 AWG	Blue	Phosphor Bronze	Thermoplastic	1	DE E	Tin	IDC Ribbon Cable	UL94 V-0	Feed Through Shielded Strain Relief	2.54 µm	100 µin	Housing/Shell (Unthreaded)	2	Signal	Receptacle Male Pins	Free Hanging (In-Line)	9	D-Sub

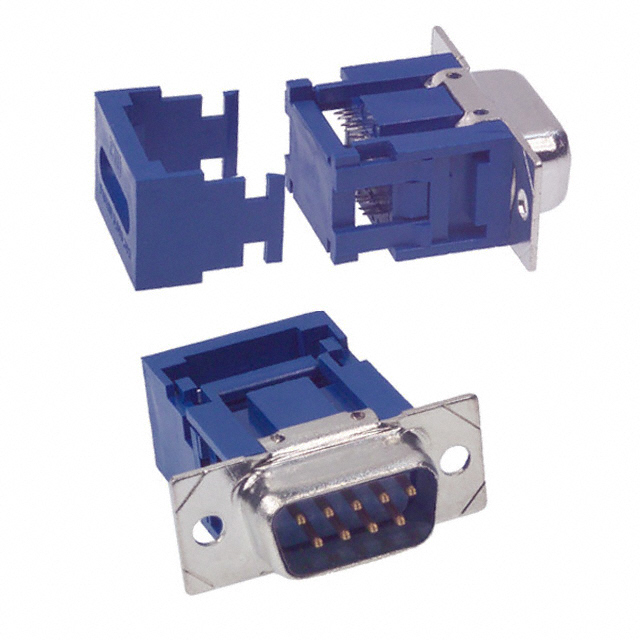

CW Industries CWR-280-09-0000	30 AWG	27.5 AWG	Blue	Phosphor Bronze	Thermoplastic	1	DE E	Gold	IDC Ribbon Cable	UL94 V-0	Feed Through Shielded Strain Relief	0.25 Ám	10 Áin	Housing/Shell (Unthreaded)	2	Signal	Receptacle Male Pins	Free Hanging (In-Line)	9	D-Sub

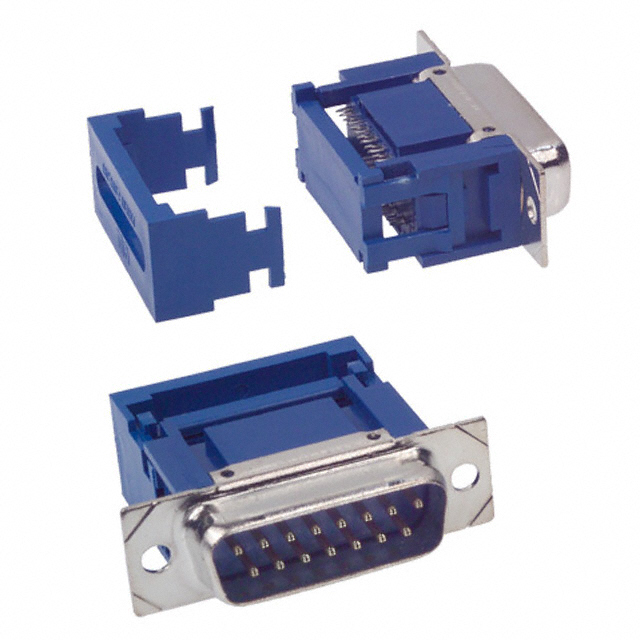

CW Industries CWR-280-15-0021	30 AWG	27.5 AWG	Blue	Phosphor Bronze	Thermoplastic			Gold	IDC Ribbon Cable	UL94 V-0	Feed Through Shielded Strain Relief	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	2	Signal	Receptacle Male Pins	Free Hanging (In-Line)	15	D-Sub	2
CW Industries CWR-280-15-0203	30 AWG	27.5 AWG	Blue	Phosphor Bronze	Thermoplastic			Tin	IDC Ribbon Cable	UL94 V-0	Feed Through Shielded Strain Relief	2.54 µm	100 µin	Housing/Shell (Unthreaded)	2	Signal	Receptacle Male Pins	Free Hanging (In-Line)	15	D-Sub	2
