MS0850506 Series
Manufacturer: E-Switch
Beta
⌘K

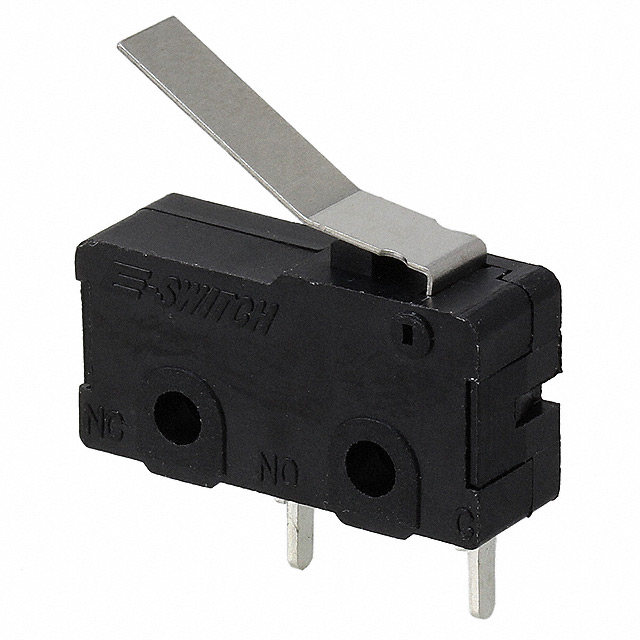

SWITCH SNAP ACT SPST-NO 5A 125V
| Part | Electrical Life | Mounting Type | Release Force | Operating Position | Operating Position | Circuit | Actuator Type | Switch Function | Operating Force | Mechanical Life | Pretravel | Pretravel | Current Rating (Amps) | Termination Style | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 50000 Cycles | Through Hole | 8 gf | 13.9 mm | 0.547 in | SPST-NO | Leaf Lever | Off-Mom | 20 gf | 1000000 Cycles | 4.1 mm | 0.161 in | 5 A | PC Pin | 125 V | 85 °C | -25 °C |
