MULTI-GIG RT Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONNECTOR, MULTIGIG RT SERIES, 4 CONTACTS, 3.6 MM, HEADER, THROUGH HOLE, 1 ROWS
| Part | Color | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Layout, Typical | Mounting Type | Connector Usage | Number of Positions Loaded | Contact Finish | Connector Type | Number of Rows | Pitch | Pitch | Features | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Number of Columns | Connector Style | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | For Use With/Related Products | Specifications | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

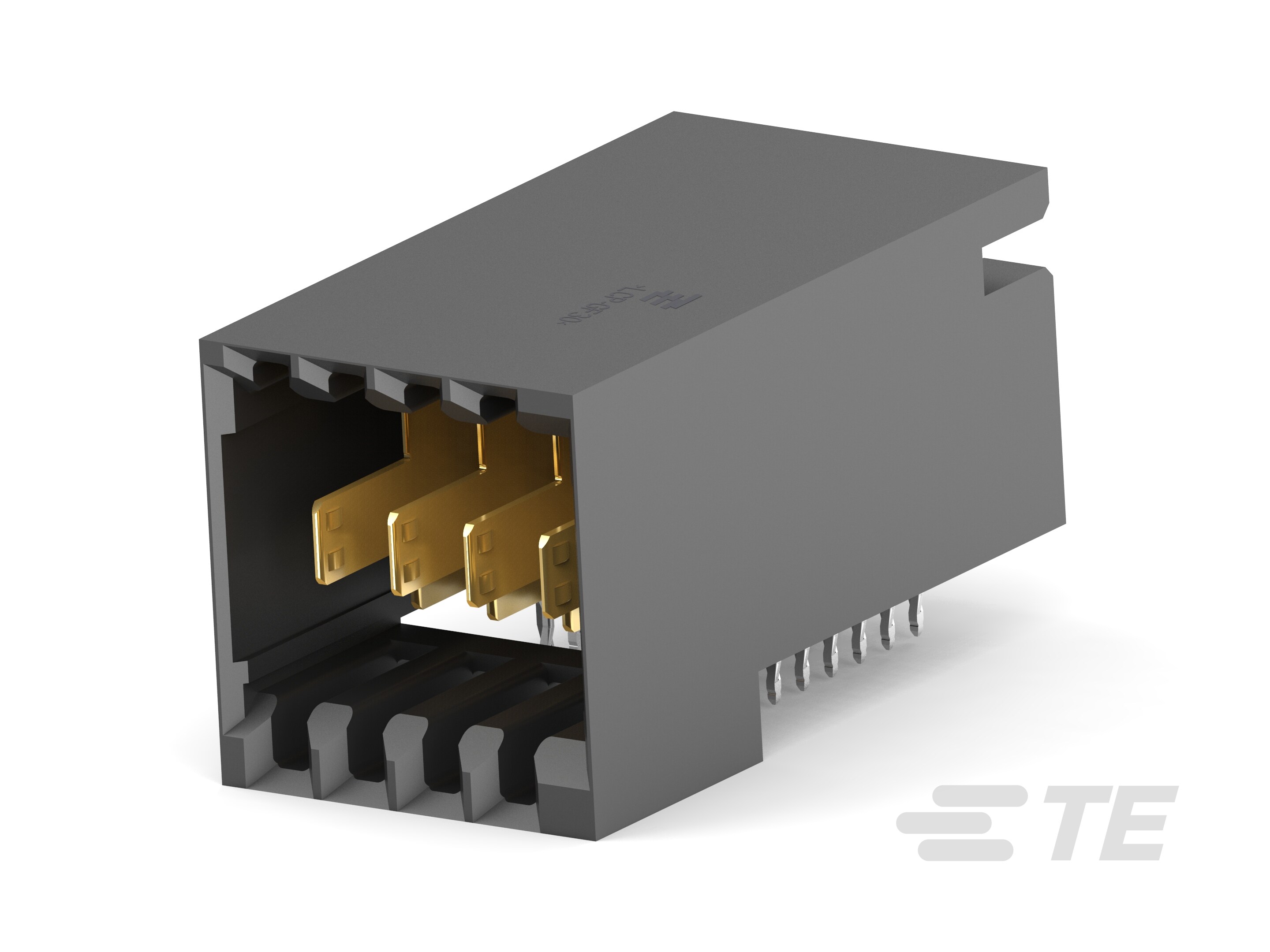

 TE Connectivity AMP Connectors | Black | 4 | 50 µin | 1.27 µm | Press-Fit | 4 Power | Board Edge Right Angle Through Hole | Daughtercard | All | Gold | Header Male Blades | 1 | ||||||||||||||
 TE Connectivity AMP Connectors | Black | 176 | 50 µin | 1.27 µm | Press-Fit | Through Hole | Backplane | All | Gold | Receptacle Female Blade Sockets | 11 | 1.8 mm | 0.071 in | Board Guide | 48 | 128 | 16 | |||||||||
 TE Connectivity AMP Connectors | Black | 120 | 30 Áin | 0.76 Ám | Solder | Board Edge Right Angle Through Hole | Daughtercard | All | Gold | Plug Male Blades | 10 | 1.8 mm | 0.071 in | 40 | 80 | 8 | Half MULTIGIG Right End | |||||||||
TE Connectivity AMP Connectors | Black | 176 | 50 µin | 1.27 µm | Press-Fit | Through Hole | Backplane | All | Gold | Receptacle Female Blade Sockets | 11 | 1.8 mm | 0.071 in | Board Guide | 48 | 128 | 16 | MULTIGIG Full Left End | 50 V | -55 C | 105 ░C | UL94 V-0 | ||||

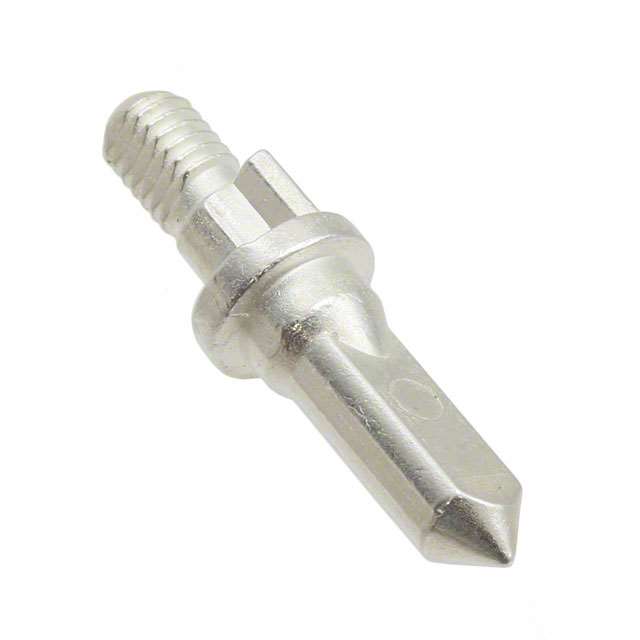

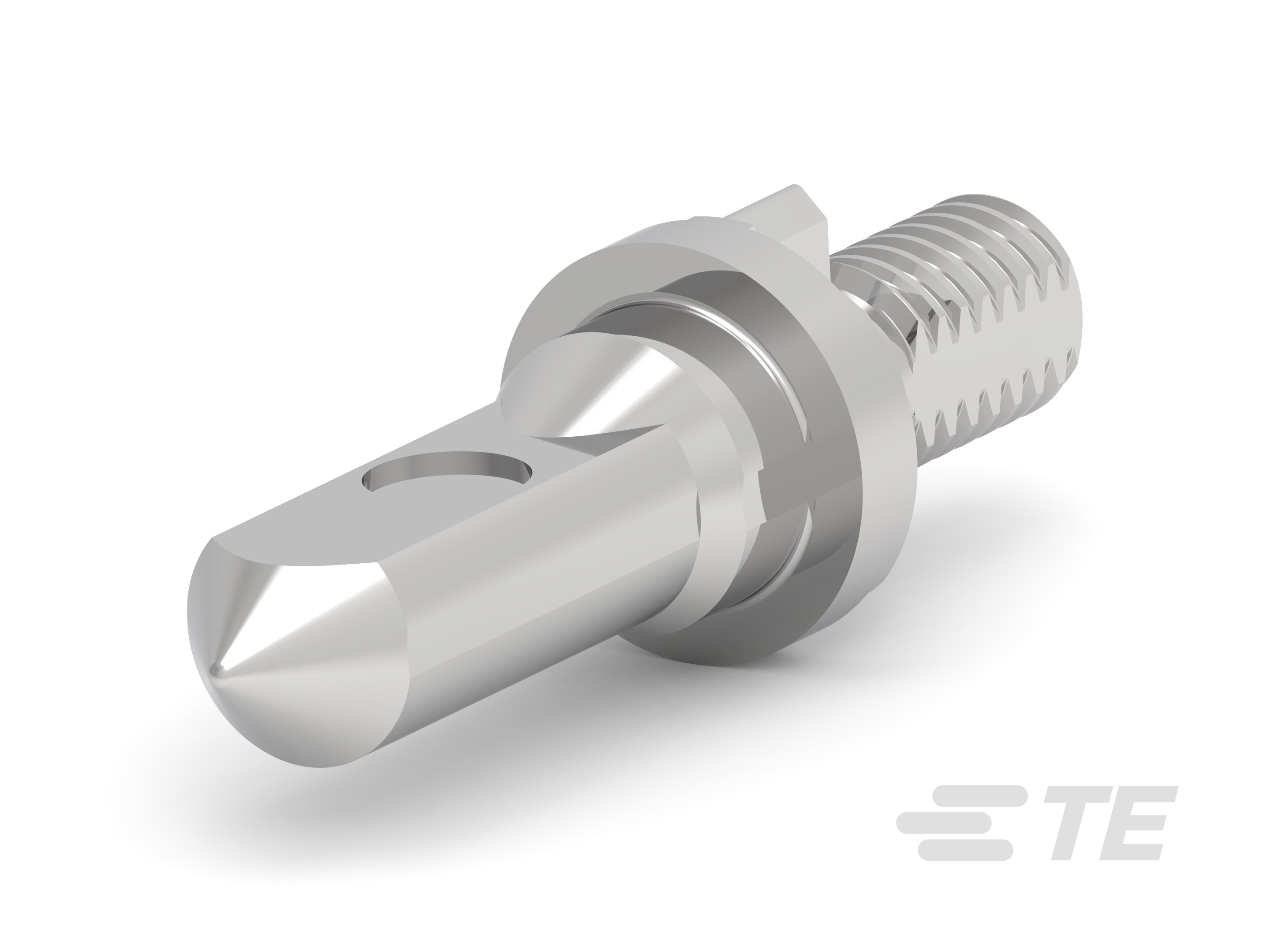

 TE Connectivity AMP Connectors | MULTIGIG RT Series | M5 Thread | Guide Pin |
