DA15S564 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

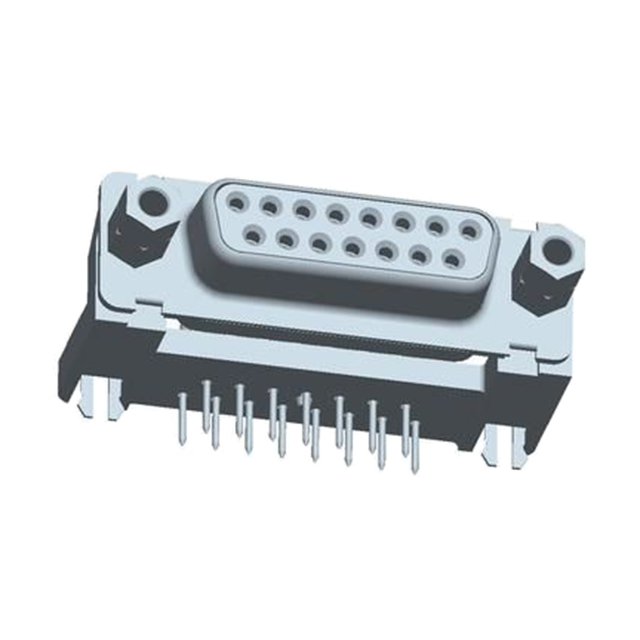

DSUB R/A STB 15SOCKET
| Part | Number of Rows | Contact Finish | Connector Style | Shell Size, Connector Layout | Dielectric Material | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Positions | Mounting Type | Shell Material, Finish | Connector Type | Flange Feature | Contact Material | Backset Spacing | Backset Spacing | Material Flammability Rating | Current Rating (Amps) | Contact Finish Thickness | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 2 | Gold or Gold GXT™ | D-Sub | 2 | Thermoplastic | Signal | -55 °C | 125 °C | Solder | 15 | Through Hole Right Angle | Steel Tin/Zinc Plated | Receptacle Female Sockets | Housing/Shell (Unthreaded) | |||||||
Amphenol ICC (FCI) | 2 | Gold or Gold GXT™ | D-Sub | 2 | Thermoplastic | Signal | -55 °C | 125 °C | Solder | 15 | Through Hole Right Angle | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Copper Alloy | 0.409 in | 10.4 mm | UL94 V-0 | 5 A | |||
Amphenol ICC (FCI) | 2 | Gold | D-Sub | 2 | Thermoplastic | Signal | -55 °C | 125 °C | Solder | 15 | Through Hole Right Angle | Steel Zinc Plated | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 5 A | Flash | |||||
 Amphenol ICC (FCI) | 2 | Gold GXT™ | D-Sub | 2 | Thermoplastic | Signal | -55 °C | 125 °C | Solder | 15 | Through Hole Right Angle | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Copper Alloy | 0.409 in | 10.4 mm | UL94 V-0 | 5 A | Flash | 300 VDC |
