CAB.M19 Series
Manufacturer: LEMO
Beta
⌘K

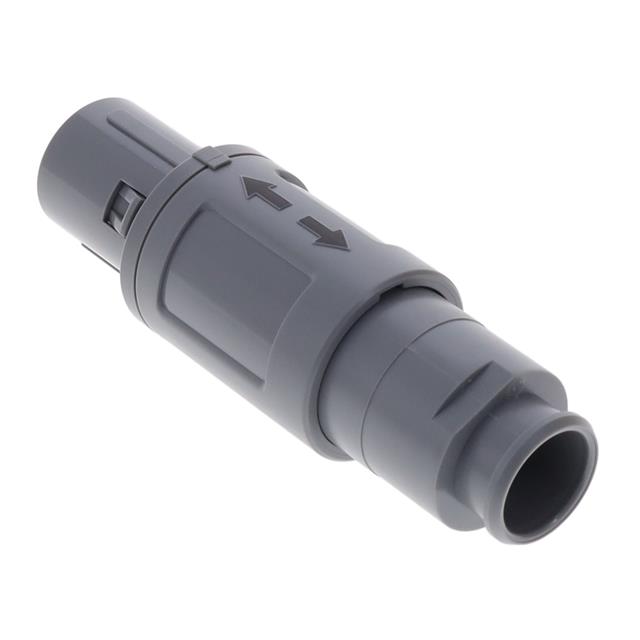

CONN PLUG MALE 19P GOLD SLDR CUP
| Part | Number of Positions | Ingress Protection | Insert Material | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Color | Shielding | Primary Material | Shell Material | Fastening Type | Current Rating (Amps) | Mounting Type | Backshell Material, Plating | Contact Finish - Mating | Orientation | Shell Size - Insert | Features | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
19 | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 5.3 mm | 0.283 " | 0.209 in | 7.2 mm | 150 °C | -50 °C | Plug Male Pins | Gray | Unshielded | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | 5 A | Free Hanging (In-Line) | Polysulfone (PSU) | Gold | B | M19 | Backshell | Automotive Industrial Medical Testing Equipment & Measurement | |
19 | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 7.3 mm | 0.362 in | 0.287 in | 9.2 mm | 150 °C | -50 °C | Plug Male Pins | Gray | Unshielded | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | 5 A | Free Hanging (In-Line) | Polysulfone (PSU) | Gold | B | M19 | Backshell | Automotive Industrial Medical Testing Equipment & Measurement | |
19 | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 3.2 mm | 0.205 in | 0.126 in | 5.2 mm | 150 °C | -50 °C | Plug Male Pins | Gray | Unshielded | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | 5 A | Free Hanging (In-Line) | Polysulfone (PSU) | Gold | B | M19 | Backshell | Automotive Industrial Medical Testing Equipment & Measurement | |
LEMO | 19 | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 3.2 mm | 0.205 in | 0.126 in | 5.2 mm | 150 °C | -50 °C | Plug Male Pins | Gray | Unshielded | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | 5 A | Free Hanging (In-Line) | Polysulfone (PSU) | Gold | B | M19 | Backshell | Automotive Industrial Medical Testing Equipment & Measurement |
