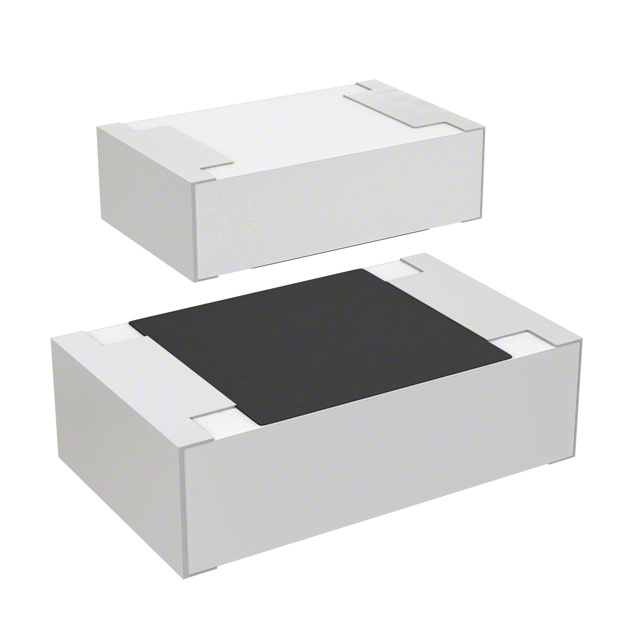

CRS2010 Series

Catalog

THICK FILM RESISTORS - SMD 100OHMS 1W 1% TCR100 RES SMD

Part	Package / Case	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Number of Terminations [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Power (Watts)	Composition	Features
Bourns Inc. CRS2010-FX-1000ELF	2010 (5025 Metric)	2010	5 mm	0.098 in	0.197 in	2.5 mm	100 ppm/°C	2	0.026 in	0.65 mm	100 Ohms	155 C	-55 C	1 %	1 W	Thick Film	High Voltage Pulse Withstanding
Bourns Inc. CRS2010-FX-1002ELF	2010 (5025 Metric)	2010	5 mm	0.098 in	0.197 in	2.5 mm	100 ppm/°C	2	0.026 in	0.65 mm	10000 Ohms	155 C	-55 C	1 %	1 W	Thick Film	High Voltage Pulse Withstanding
Bourns Inc. CRS2010-JW-4R7ELF	2010 (5025 Metric)	2010	5 mm	0.098 in	0.197 in	2.5 mm	200 ppm/°C	2	0.026 in	0.65 mm	4.7 Ohms	155 C	-55 C	5 %	1 W	Thick Film	High Voltage Pulse Withstanding
Bourns Inc. CRS2010-FW-4R99ELF	2010 (5025 Metric)	2010	5 mm	0.098 in	0.197 in	2.5 mm	200 ppm/°C	2	0.026 in	0.65 mm	4.99 Ohms	155 C	-55 C	1 %	1 W	Thick Film	High Voltage Pulse Withstanding
Bourns Inc. CRS2010-FX-4701ELF	2010 (5025 Metric)	2010	5 mm	0.098 in	0.197 in	2.5 mm	100 ppm/°C	2	0.026 in	0.65 mm	4.7 kOhms	155 C	-55 C	1 %	1 W	Thick Film	High Voltage Pulse Withstanding
Bourns Inc. CRS2010-FX-1004ELF	2010 (5025 Metric)	2010	5 mm	0.098 in	0.197 in	2.5 mm	100 ppm/°C	2	0.026 in	0.65 mm	1 MOhms	155 C	-55 C	1 %	1 W	Thick Film	High Voltage Pulse Withstanding
Bourns Inc. CRS2010-JX-102ELF	2010 (5025 Metric)	2010	5 mm	0.098 in	0.197 in	2.5 mm	100 ppm/°C	2	0.026 in	0.65 mm	1000 Ohms	155 C	-55 C	5 %	1 W	Thick Film	High Voltage Pulse Withstanding
Bourns Inc. CRS2010-JX-332ELF	2010 (5025 Metric)	2010	5 mm	0.098 in	0.197 in	2.5 mm	100 ppm/°C	2	0.026 in	0.65 mm	3300 Ohms	155 C	-55 C	5 %	1 W	Thick Film	High Voltage Pulse Withstanding
