M2033SS Series

Catalog

SWITCH TOGGLE 3PDT 0.4VA 28V

Part	Electrical Life	Actuator Material	Circuit	Voltage Rating - DC	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Features	Actuator Type	Bushing Thread	Panel Cutout Dimensions [diameter]	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Actuator Length [x]
NKK Switches M2033SS1G06	50000 Cycles	Brass Chrome Plated	3PDT	28 V	28 V	0.4 VA	On-Off-On	Epoxy Sealed Terminals	Standard Round	1/4-40	6.5 mm	Non-Illuminated	85 °C	-30 ░C	Panel Mount	Wire Wrap

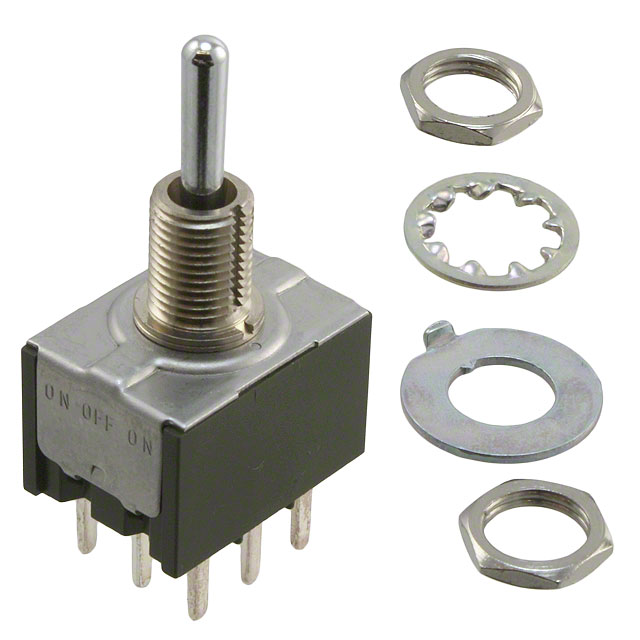

NKK Switches M2033SS1W03	25000 Steps	Brass Chrome Plated	3PDT	30 V	125 V	3 A 6 A	On-Off-On	Epoxy Sealed Terminals	Standard Round	1/4-40	6.5 mm	Non-Illuminated	85 °C	-30 ░C	Panel Mount	PC Pin
NKK Switches M2033SS1G01	50000 Cycles	Brass Chrome Plated	3PDT	28 V	28 V	0.4 VA	On-Off-On	Epoxy Sealed Terminals	Standard Round	1/4-40	6.5 mm	Non-Illuminated	85 °C	-30 ░C	Panel Mount	Solder Lug
NKK Switches M2033SS1W01-BA	25000 Steps	Brass Chrome Plated	3PDT	30 V	125 V	3 A 6 A	On-Off-On	Black Cap	Standard Round with Cap	1/4-40	6.5 mm	Non-Illuminated	85 °C	-30 ░C	Panel Mount	Solder Lug	13.5 mm
