325-057 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 57POS 0.100

Part	Material - Insulation	Termination Rows	Read Out	Pitch	Pitch	Contact Type	Card Type	Termination	Contact Material	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Positions/Bay/Row [custom]	Color	Mounting Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Card Thickness	Card Thickness	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

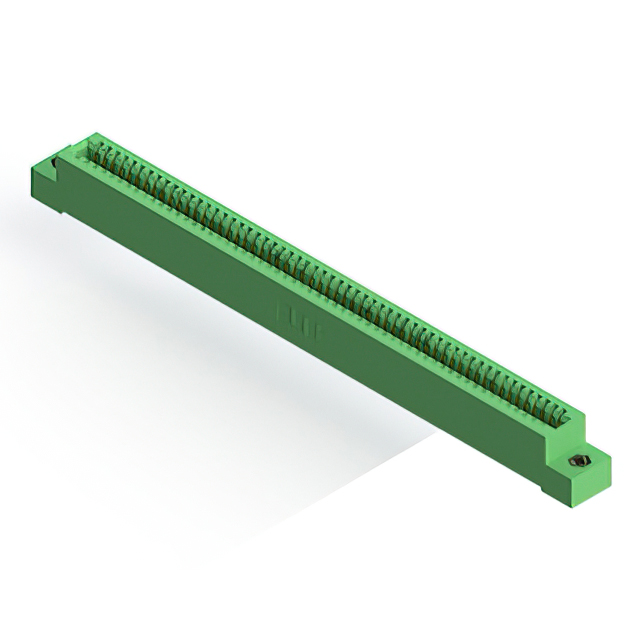

EDAC Inc. 325-057-520-108	Diallyl Phthalate (DAP)	1	Single	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	Solder	Copper Alloy	57	0.25 Ám	10 Áin	Female	57	Green	Through Hole	Gold	-65 ░C	125 °C	4-40 Flush Mount Threaded Insert Top Opening	3.18 mm	0.125 in	1
EDAC Inc. 325-057-520-107	Diallyl Phthalate (DAP)	1	Single	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	Solder	Copper Alloy	57	0.25 Ám	10 Áin	Female	57	Green	Through Hole	Gold	-65 ░C	125 °C	Flush Mount M3 Threaded Insert Top Opening	3.18 mm	0.125 in	1
EDAC Inc. 325-057-540-101	Diallyl Phthalate (DAP)	1	Single	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	Wire Wrap	Copper Alloy	57	0.25 Ám	10 Áin	Female	57	Green	Through Hole	Gold	-65 ░C	125 °C		3.18 mm	0.125 in	1

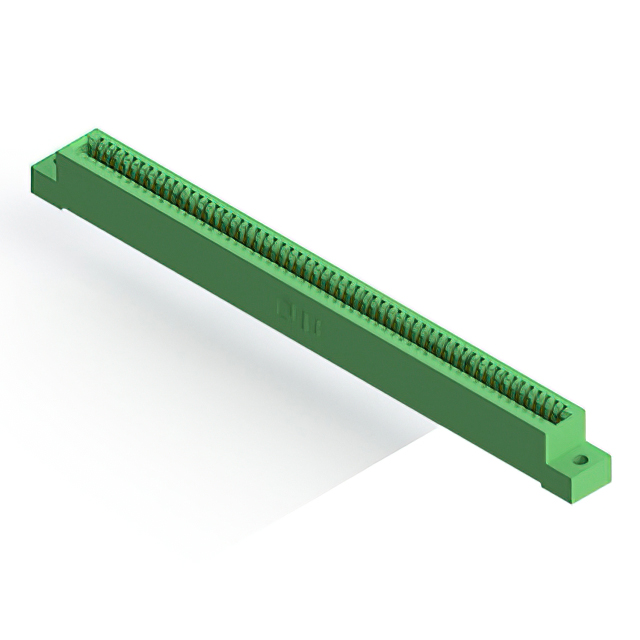

EDAC Inc. 325-057-500-109	Diallyl Phthalate (DAP)	1	Single	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	Solder Eyelet(s)	Copper Alloy	57	0.25 Ám	10 Áin	Female	57	Green	Through Hole	Gold	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 in	1	0.16 "	4.06 mm

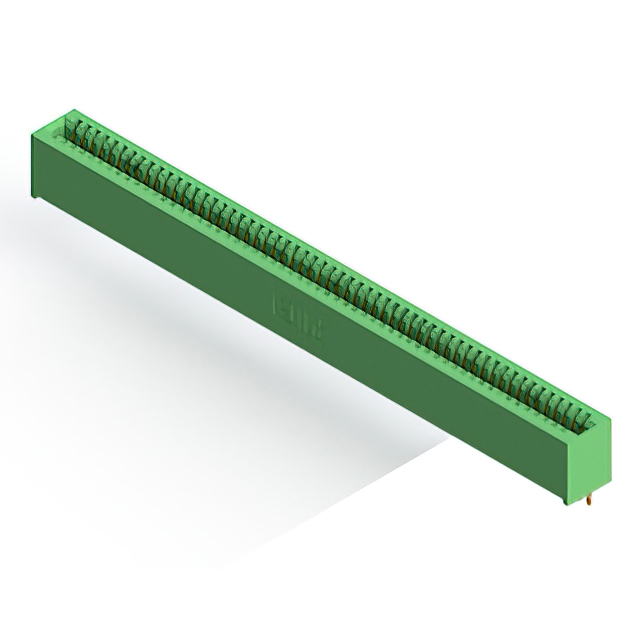

EDAC Inc. 325-057-500-101	Diallyl Phthalate (DAP)	1	Single	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	Solder Eyelet(s)	Copper Alloy	57	0.25 Ám	10 Áin	Female	57	Green	Through Hole	Gold	-65 ░C	125 °C		3.18 mm	0.125 in	1

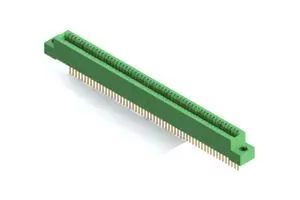

EDAC Inc. 325-057-540-108	Diallyl Phthalate (DAP)	1	Single	0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	Wire Wrap	Copper Alloy	57	0.25 Ám	10 Áin	Female	57	Green	Through Hole	Gold	-65 ░C	125 °C	4-40 Flush Mount Threaded Insert Top Opening	3.18 mm	0.125 in	1
