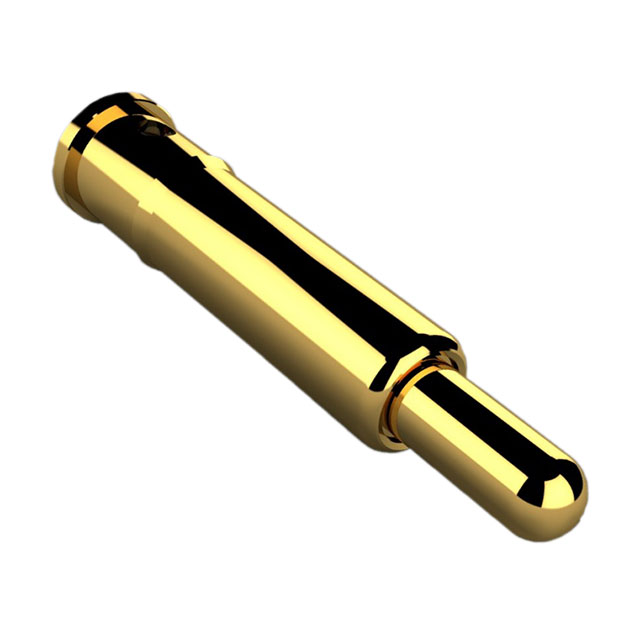

90234 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height | Minimum Working Height | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Operating Force - Initial | Contact Finish | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 0.256 " | 6.5 mm | 2 A | 30 Áin | 0.76 Ám | 40000 | 25.49 gf | Gold | Surface Mount | 0.335 in | 8.51 mm | 0.071 in | 1.8 mm | Brass Alloy | 0.038 in | 0.96 mm | Sleeve & Plunger (Pogo Pins) |
