T41330 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

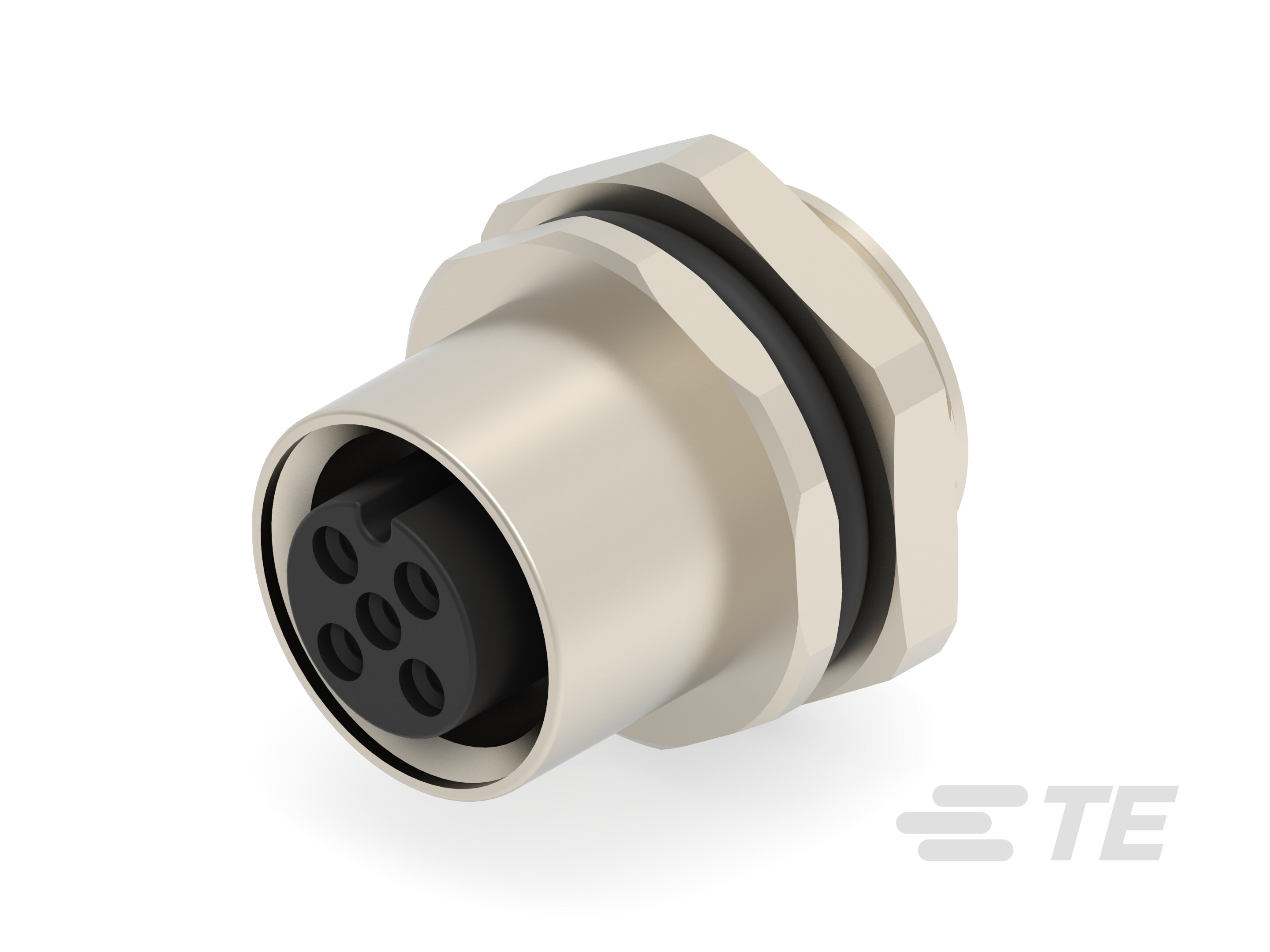

M12,FRONT MOUNT,FEMALE,A,2P,SOLDER WIRE
| Part | Shell Size - Insert | Mounting Feature | Shell Material | Applications | Primary Material | Shell Finish | Material Flammability Rating | Orientation | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Number of Positions | Voltage Rating | Insert Material | Current Rating (Amps) | Contact Material | Mounting Type | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Connector Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | M12-2 | Bulkhead - Rear Side Nut | Copper Alloy | Industrial | Metal | Nickel | UL94 V-0 | A | Threaded | 85 °C | -40 C | Gold | 2 | 250 V | Nylon 6/6 Polyamide (PA66) | 4 A | Copper Alloy | Panel Mount | Unshielded | 0.076 µm | 3 µin | IP67 - Dust Tight Waterproof | Plug Female Sockets | Silver |
 TE Connectivity AMP Connectors | M12-5 | Bulkhead - Rear Side Nut | Copper Alloy | Industrial | Metal | Nickel | UL94 V-0 | A | Threaded | 85 °C | -40 C | Gold | 5 | 60 VDC | Nylon 6/6 Polyamide (PA66) | 4 A | Copper Alloy | Panel Mount | Unshielded | 0.076 µm | 3 µin | IP67 - Dust Tight Waterproof | Plug Female Sockets | Silver |

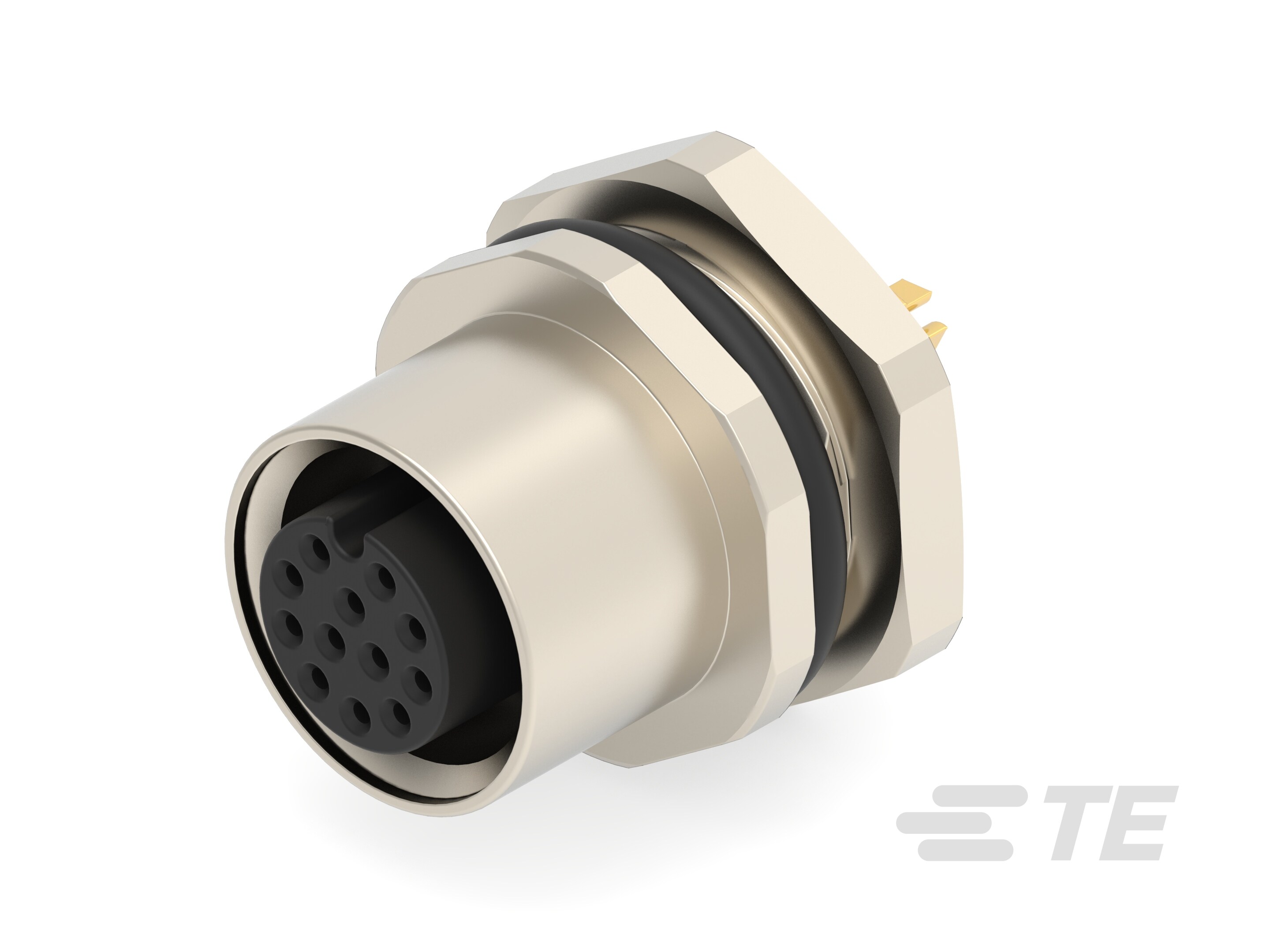

 TE Connectivity AMP Connectors | M12-12 | Bulkhead - Rear Side Nut | Copper Alloy | Industrial | Metal | Nickel | A | Threaded | 85 °C | -40 C | Gold | 12 | 30 VDC | Nylon 6/6 Polyamide (PA66) | 1.5 A | Copper Alloy | Panel Mount | Unshielded | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Silver | |||
 TE Connectivity AMP Connectors | M12-4 | Bulkhead - Rear Side Nut | Copper Alloy | Industrial | Metal | Nickel | UL94 V-0 | A | Threaded | 85 °C | -40 C | Gold | 4 | 250 V | Nylon 6/6 Polyamide (PA66) | 4 A | Copper Alloy | Panel Mount | Unshielded | 0.076 µm | 3 µin | IP67 - Dust Tight Waterproof | Plug Female Sockets | Silver |
