9L28020 Series
Manufacturer: Belden Inc.
Beta
⌘K

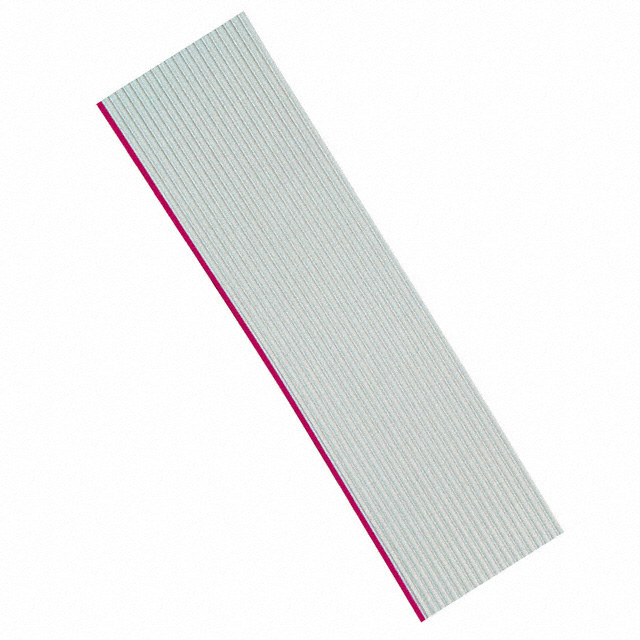

RIBBON CABLE, FLAT, UNSHIELDED, 20 CONDUCTOR, 28 AWG, 100 FT, 30.48 M
| Part | First Conductor Mark | Insulation Resistance | Current Rating (Amps) | Conductor Material | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Shielding | Number of Conductors | Jacket (Insulation) Material | Ribbon Width [custom] | Ribbon Width [custom] | Wire Gauge | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Pitch | Pitch | Ribbon Thickness | Ribbon Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Red | 10 GOhm | 1 A | Copper | Gray | -40 C | 105 ░C | Flat Cable | Unshielded | 20 | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | 28 AWG | 300 VDC | 36 AWG | 7 Strands | 100 ' | 30.48 m | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in |
