MT-4 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 125V
| Part | Operating Force [Min] | Operating Force [Max] | Differential Travel | Differential Travel | Overtravel | Overtravel | Operating Position | Operating Position | Termination Style | Release Force | Mounting Type | Actuator Type | Circuit | Pretravel | Pretravel | Current Rating (Amps) | Voltage Rating - DC | Voltage Rating - AC | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 340 gf | 510 gf | 0.007 in | 0.18 mm | 0.13 mm | 0.005 in | 0.625 in | 15.9 mm | Screw Terminal | 142 gf | Chassis Mount | Round (Pin Plunger) | SPDT | 0.04 in | 1 mm | 10 A | 125 VDC | 125 V | On-Mom | |||

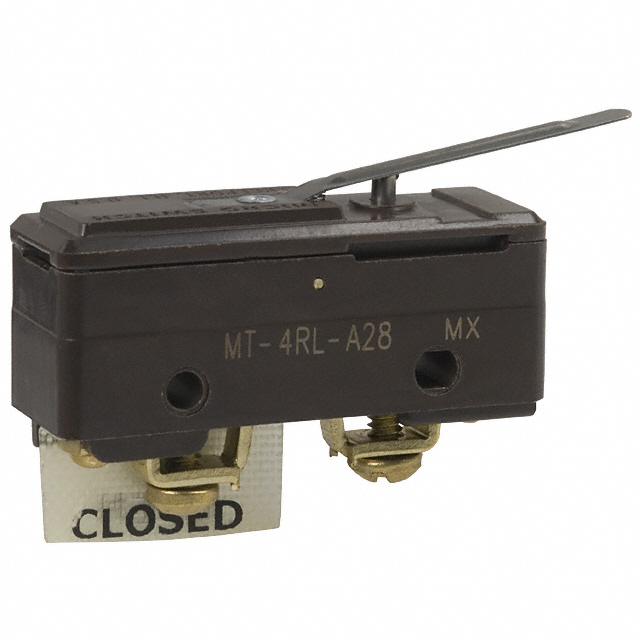

 Honeywell Sensing and Productivity Solutions | 1.5 mm | 0.06 " | 0.75 " | 19.1 mm | Screw Terminal | 28 gf | Chassis Mount | Leaf Lever | SPDT | 10 A | 125 VDC | 125 V | On-Mom | -55 °C | 82 °C | 340 gf | ||||||

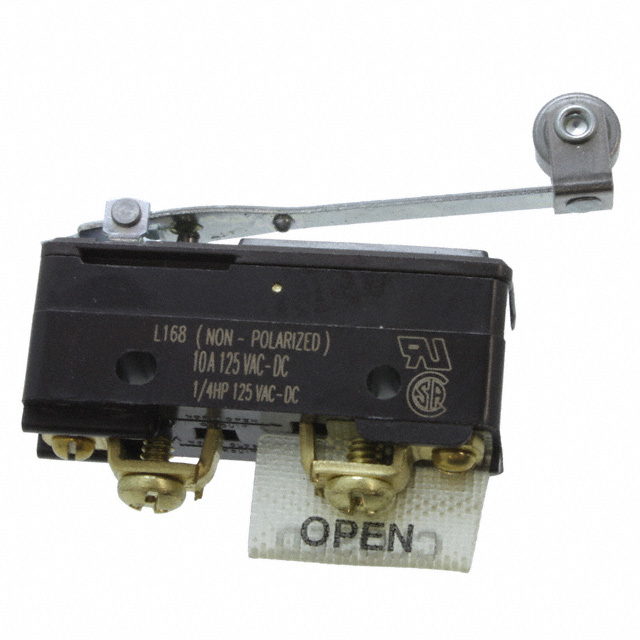

 Honeywell Sensing and Productivity Solutions | 0.065 in | 1.7 mm | 0.79 mm | 0.031 in | 1.188 in | 30.2 mm | Screw Terminal | Chassis Mount | Lever Roller | SPDT | 0.351 in | 8.9 mm | 10 A | 125 VDC | 125 V | On-Mom | -55 °C | 85 °C | 78 gf |
