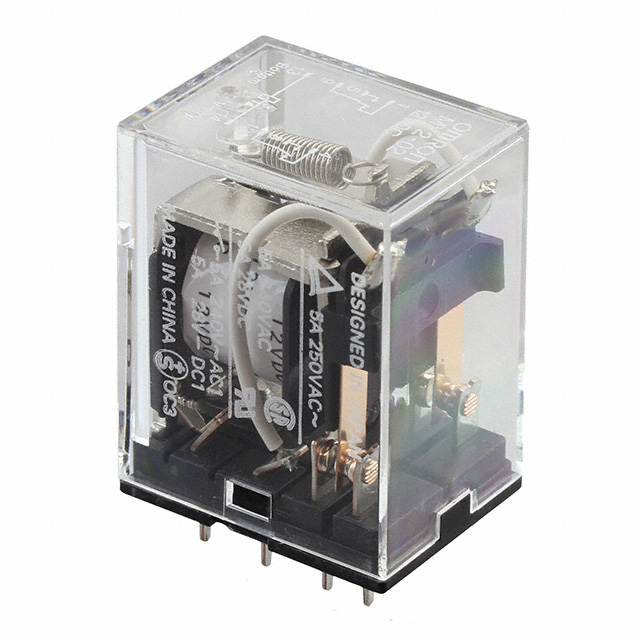

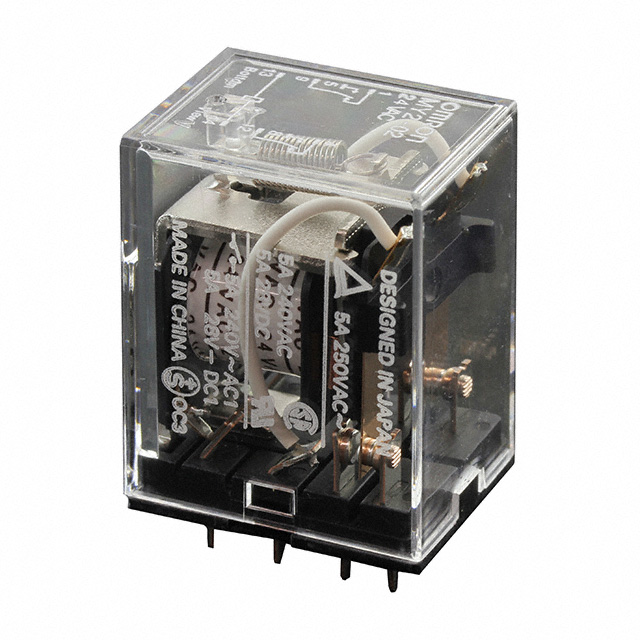

MY2-02 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 5A 6V
| Part | Must Operate Voltage | Relay Type | Contact Rating (Current) | Coil Resistance | Contact Form | Approval Agency | Coil Current | Termination Style | Contact Material | Must Release Voltage | Mounting Type | Load - Max Switching | Coil Type | Operate Time | Release Time | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 4.8 VDC | General Purpose | 5 A | 41 Ohms | DPDT (2 Form C) | CE CSA UR VDE | 146 mA | PC Pin | Silver (Ag) | 0.6 VDC | Through Hole | 625 W 1250 VA | Non Latching | 20 ms | 20 ms | 125 VDC 250 VAC | 70 °C | -55 °C | |
 Omron Electronics Inc-EMC Div | 19.2 VDC | General Purpose | 5 A | 662 Ohms | DPDT (2 Form C) | CE CSA UR VDE | 36.3 mA | PC Pin | Silver (Ag) | 2.4 VDC | Through Hole | 625 W 1250 VA | Non Latching | 20 ms | 20 ms | 125 VDC 250 VAC | 70 °C | -55 °C | 24 VDC |
Omron Electronics Inc-EMC Div | 192 VAC | General Purpose | 5 A | 18.79 kOhms | DPDT (2 Form C) | CE CSA UR VDE | 12.8 mA | PC Pin | Silver (Ag) | 72 VAC/DC | Through Hole | 625 W 1250 VA | Non Latching | 20 ms | 20 ms | 125 VDC 250 VAC | 70 °C | -55 °C | 240 VAC |
Omron Electronics Inc-EMC Div | 88 VDC | General Purpose | 5 A | 11.44 kOhms | DPDT (2 Form C) | CE CSA UR VDE | 9.6 mA | PC Pin | Silver (Ag) | 11 VDC | Through Hole | 625 W 1250 VA | Non Latching | 20 ms | 20 ms | 125 VDC 250 VAC | 70 °C | -55 °C | 110 VDC |
Omron Electronics Inc-EMC Div | 96 VAC | General Purpose | 5 A | 4.43 kOhms | DPDT (2 Form C) | CE CSA UR VDE | 27.1 mA | PC Pin | Silver (Ag) | 36 VAC | Through Hole | 625 W 1250 VA | Non Latching | 20 ms | 20 ms | 125 VDC 250 VAC | 70 °C | -55 °C | 120 VAC |
 Omron Electronics Inc-EMC Div | 19.2 VAC | General Purpose | 5 A | 180 Ohms | DPDT (2 Form C) | CE CSA UR VDE | 133.3 mA | PC Pin | Silver (Ag) | 7.2 VAC | Through Hole | 625 W 1250 VA | Non Latching | 20 ms | 20 ms | 125 VDC 250 VAC | 70 °C | -55 °C | 24 VAC |
 Omron Electronics Inc-EMC Div | 9.6 VDC | General Purpose | 5 A | 165 Ohms | DPDT (2 Form C) | CE CSA UR VDE | 72.7 mA | PC Pin | Silver (Ag) | 1.2 VDC | Through Hole | 625 W 1250 VA | Non Latching | 20 ms | 20 ms | 125 VDC 250 VAC | 70 °C | -55 °C | 12 VDC |
