OSTHT03 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

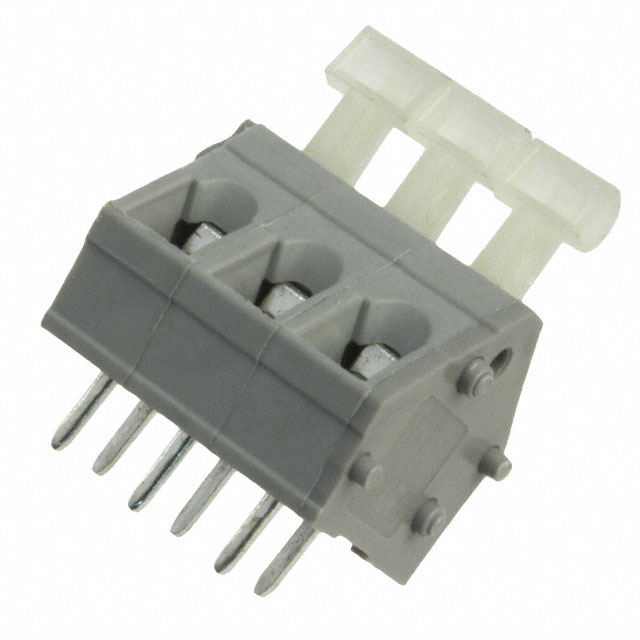

TERM BLOCK 3POS 5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Housing Material | Clamp Material - Plating [custom] | Pitch | Pitch | Current | Features | Number of Levels | Mating Orientation | Wire Termination | Voltage | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Color | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Brass | Thermoplastic | Stainless Steel | 0.197 in | 5 mm | 15 A | Interlocking (Side) Lever Actuated | 1 | Angled | Leg Spring Push-In Spring | 300 VDC | Through Hole | 12 AWG | 28 AWG | Gray | 3 |
