100DP2 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TOGGLE DPDT 5A 120V
| Part | Electrical Life (Cycles) | Actuator Material | Panel Cutout Diameter | Panel Cutout Shape | Actuator Type | Voltage Rating - AC | Actuator Length | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Switch Function | Mounting Type | Termination Style | Features | Bushing Thread | Circuit | Illumination | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

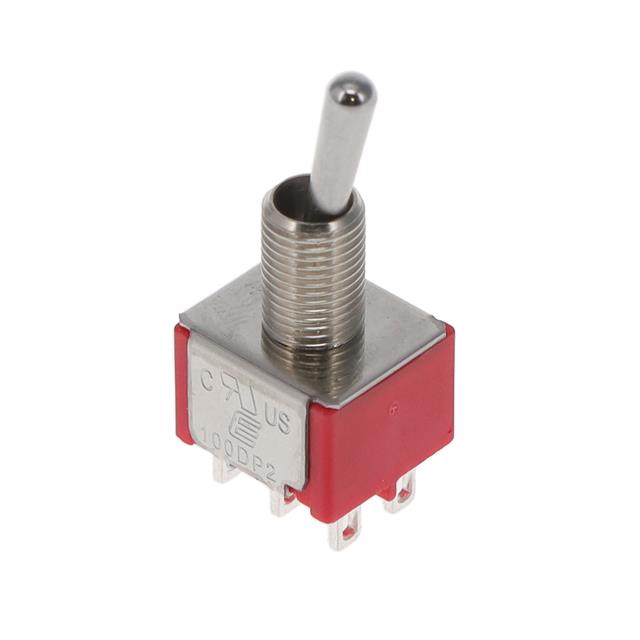

 E-Switch | 40000 | Brass Chrome Plated | 0.25 " | Circular | Standard Round | 120 V | 10.41 mm | 5 A | 85 °C | -30 °C | On-Mom | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 1/4-40 | DPDT | Non-Illuminated | 28 V |

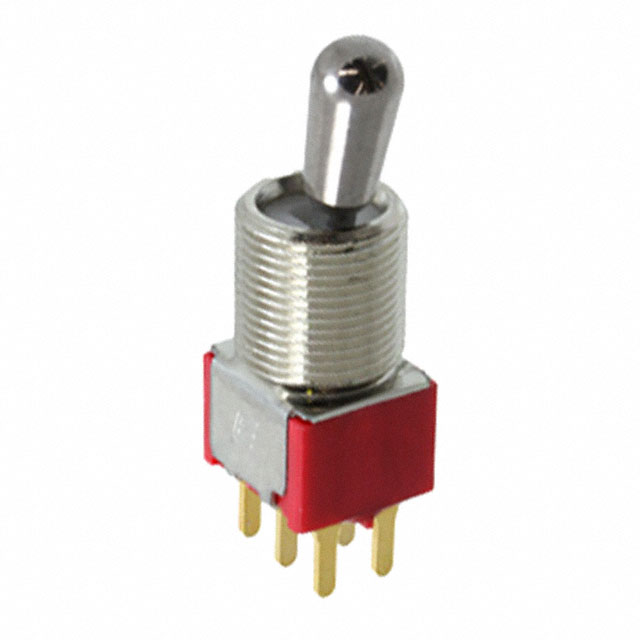

 E-Switch | 40000 | Brass Chrome Plated | Standard Round | 120 V | 5.08 mm | 5 A | 85 °C | -30 °C | On-Mom | Right Angle Through Hole Vertical | PC Pin | Epoxy Sealed Terminals | Unthreaded | DPDT | Non-Illuminated | 28 V |
