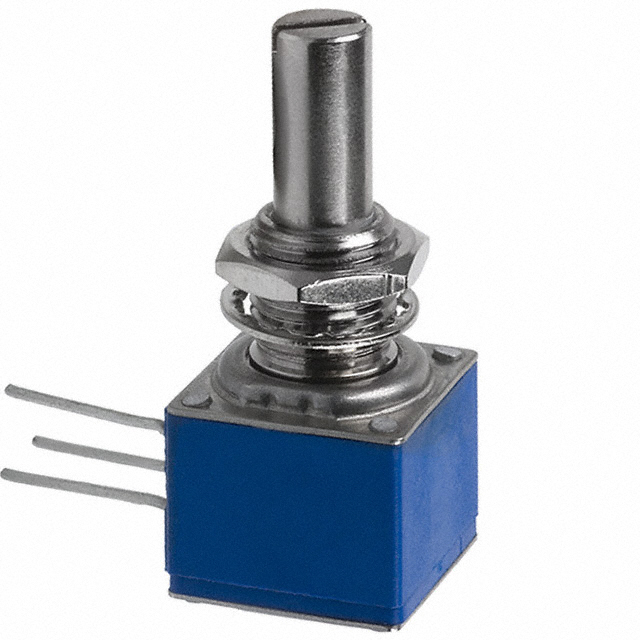

81A1A Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 1K OHM 2W CERMET LINEAR
| Part | Power (Watts) | Bushing Thread | Size - Body [y] | Size - Body [y] | Size - Body [x] | Size - Body [x] | Mounting Type | Number of Turns | Number of Gangs | Rotation | Taper | Termination Style | Built in Switch | Actuator Length [x] | Actuator Length [x] | Resistive Material | Temperature Coefficient | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Adjustment Type | Actuator Type | Resistance (Ohms) | Tolerance | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2 W | 3/8-32 | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | Panel Mount | 1 | 1 | 300 ░ | Linear | PC Pins | None | 0.875 in | 22.23 mm | Cermet | 150 ppm/°C | 6.35 mm | 0.25 in | Side Adjustment | Slotted | 1k | 10 % | |
 Bourns Inc. | 2 W | 3/8-32 | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | Panel Mount | 1 | 1 | 300 ░ | Linear | PC Pins | None | 0.875 in | 22.23 mm | Cermet | 150 ppm/°C | 6.35 mm | 0.25 in | Side Adjustment | Slotted | 10k | 10 % | |
Bourns Inc. | 1 W | 3/8-32 | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | Panel Mount | 1 | 1 | 300 ░ | Linear | PC Pins | None | 0.875 in | 22.23 mm | Conductive Plastic | 1000 ppm/°C | 6.35 mm | 0.25 in | Side Adjustment | Slotted | 20 % | 1 MΩ | |
Bourns Inc. | 2 W | 3/8-32 | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | Panel Mount | 1 | 1 | 300 ░ | Linear | PC Pins | None | 0.875 in | 22.23 mm | Cermet | 150 ppm/°C | 6.35 mm | 0.25 in | Side Adjustment | Slotted | 10 % | 5 kOhms | |
Bourns Inc. | 2 W | 3/8-32 | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | Panel Mount | 1 | 1 | 300 ░ | Linear | PC Pins | None | 0.875 in | 22.23 mm | Cermet | 150 ppm/°C | 6.35 mm | 0.25 in | Side Adjustment | Slotted | 10 % | 5 kOhms |
