MGDSI Series

Catalog

DC DC CONVERTER 15V 251W

Part	Number of Outputs	Supplier Device Package	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Voltage - Input (Min) [Min]	Mounting Type	Features	Package / Case	Voltage - Input (Max) [Max]	Efficiency	Power (Watts)	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]

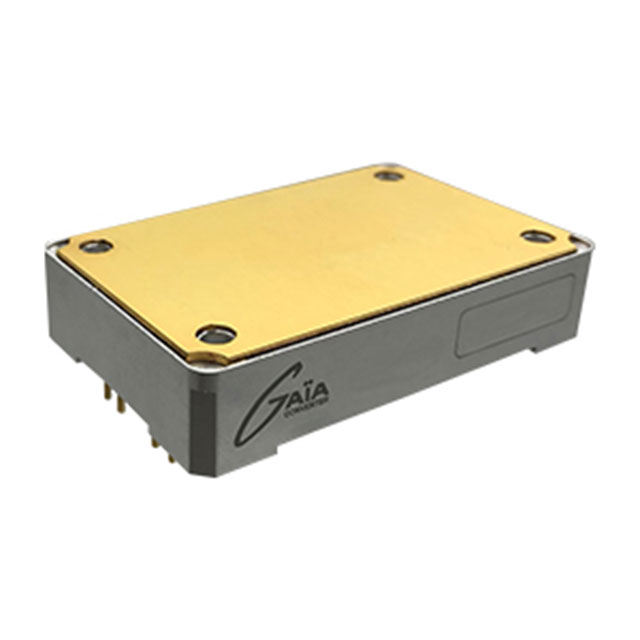

Gaia Converter MGDSI-254-H-F	1	Quarter Brick	1.5 kV	16.7 A	ITE (Commercial)	61 mm	0.51 in	1.54 in	39 mm	2.4 "	12.9 mm	Isolated Module	9 V	Through Hole	Baseplate	Quarter Brick	36 V	91 %	251 W	15 V	-40 C	100 °C
Gaia Converter MGDSI-254-H-E	1	Quarter Brick	1.5 kV	20.8 A	ITE (Commercial)	61 mm	0.51 in	1.54 in	39 mm	2.4 "	12.9 mm	Isolated Module	9 V	Through Hole	Baseplate	Quarter Brick	36 V	91 %	250 W	12 V	-40 C	100 °C
