601604 Series
Manufacturer: LAPP
Beta
⌘K

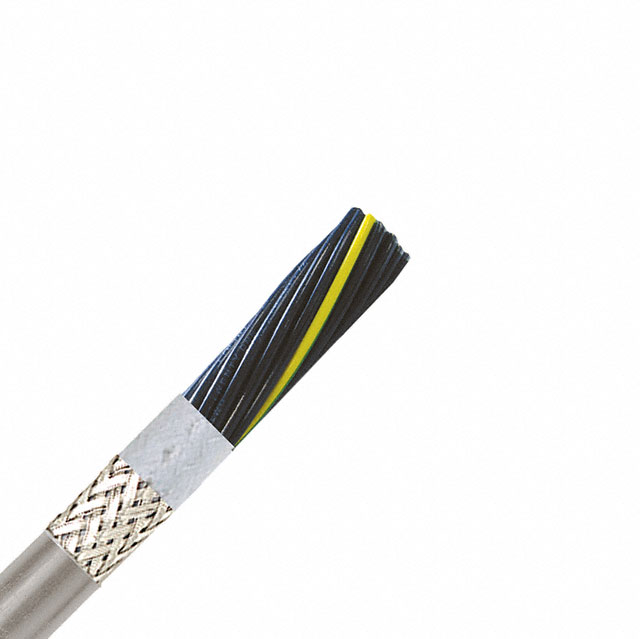

MULTICONDUCTOR CABLE, OLFLEX® 190 CY CONTROL, SHIELDED, 4 CONDUCTOR, 16 AWG, 1.5 MM², 100 FT
| Part | Shield Coverage | Shield Material | Spool Size [x] | Spool Size [x] | Usage | Length [x] | Length [x] | Shield Type | Conductor Insulation | Features | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket Color | Length | Length | Length | Jacket (Insulation) Material | Wire Gauge | Number of Conductors | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LAPP | 85 % | Copper Tinned | 3000 ' | 914.4 m | Industrial | 7.62 m 30.5 m | 25 ft 100 ft | Braid | Poly-Vinyl Chloride (PVC) | Oil Resistant | 30 | 0.0102 in | 0.421 in | 10.69 mm | Multi-Conductor | Gray | Enter Number of Feet in Order Quantity | 3.05 m 15.24 m | 10 ft 50 ft | Thermoplastic Polymer | 16 AWG | 4 | Copper Bare |
