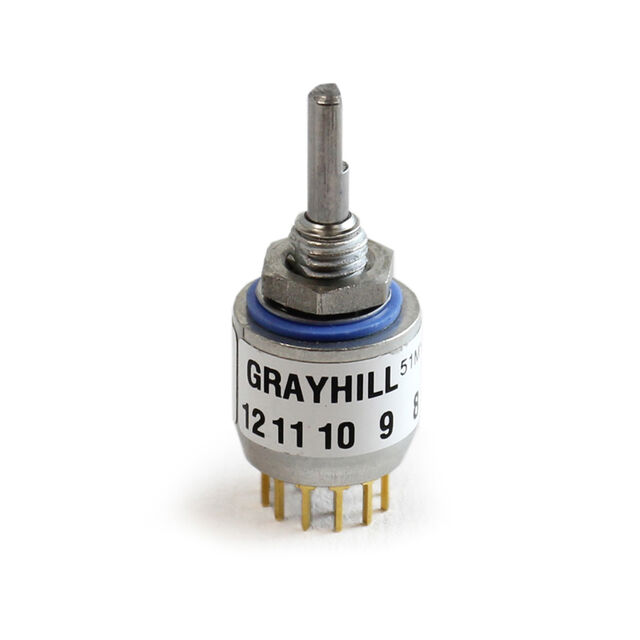

51SPT30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 2POS 150MA 115V
| Part | Panel Cutout Dimensions [diameter] | Contact Timing | Features | Angle of Throw | Actuator Type | Number of Poles per Deck | Circuit per Deck | Number of Positions | Voltage Rating - DC | Contact Finish | Index Stops | Mounting Type | Depth Behind Panel [z] | Termination Style | Number of Decks [custom] | Voltage Rating - AC | Current Rating (Amps) | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.45 mm | Shorting (MBB) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 1 | SPDT | 2 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
Grayhill Inc. | 6.45 mm | Shorting (MBB) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 2 | DP6T | 6 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 1 | SP8T | 8 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
Grayhill Inc. | 6.45 mm | Shorting (MBB) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 1 | SP12T | 12 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
Grayhill Inc. | 6.45 mm | Shorting (MBB) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 1 | SP10T | 10 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 1 | SPDT | 2 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
Grayhill Inc. | 6.45 mm | Shorting (MBB) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 1 | SP6T | 6 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 1 | SP12T | 12 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 1 | SP4T | 4 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
Grayhill Inc. | 6.45 mm | Non-Shorting (BBM) | Process Sealed | 30 ° | Flatted (3.17mm Dia) | 2 | DP6T | 6 | 28 V | Gold | Fixed | Panel Mount Through Hole | 14.63 mm | PC Pin | 1 | 115 V | 150 mA 200 mA | 9.53 mm |
