395-116 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

...

Part	Termination Rows [custom]	Material - Insulation	Features	Gender	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Card Type	Termination	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Contact Finish	Number of Positions	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Rows [custom]	Flange Feature
EDAC Inc. 395-116-556-804	2	Polyester Thermoplastic	Card Extender	Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Solder	Board Edge Straddle Mount	0.156 "	3.96 mm	Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2
EDAC Inc. 395-116-520-204	2	Polyester Thermoplastic		Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Solder	Through Hole	0.156 "	3.96 mm	Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2	Flush Mount Top Opening Unthreaded

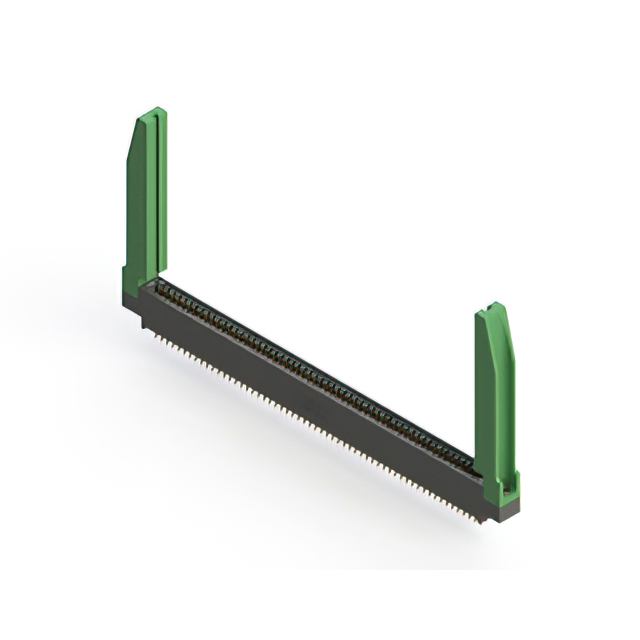

EDAC Inc. 395-116-556-878	2	Polyester Thermoplastic	Card Extender Card Guides	Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Solder	Board Edge Straddle Mount			Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 395-116-523-208	2	Polyester Thermoplastic		Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Solder	Through Hole			Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2	4-40 Flush Mount Threaded Insert Top Opening

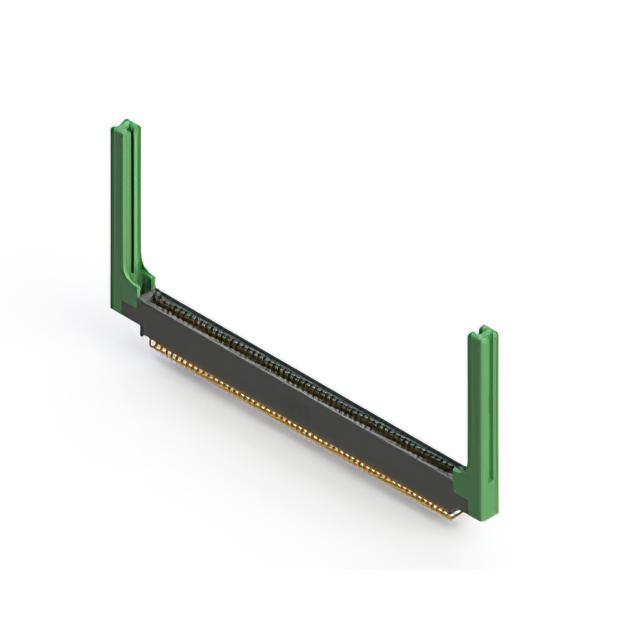

EDAC Inc. 395-116-559-858	2	Polyester Thermoplastic	Card Guides	Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Solder	Right Angle Through Hole			Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 395-116-560-202	2	Polyester Thermoplastic	Card Extender	Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Solder	Board Edge Straddle Mount	0.128 "	3.25 mm	Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2	Flush Mount Top Opening Unthreaded
EDAC Inc. 395-116-521-212	2	Polyester Thermoplastic		Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Solder	Through Hole	0.128 "	3.25 mm	Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2	Flush Mount Side Opening Unthreaded

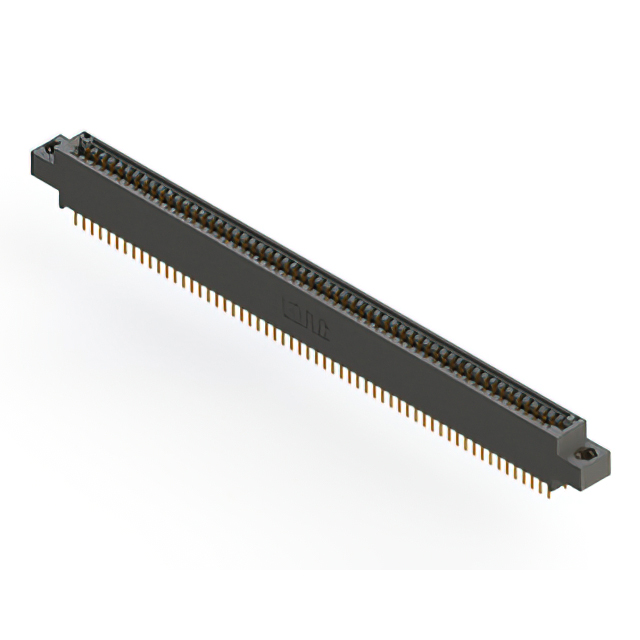

EDAC Inc. 395-116-520-807	2	Polyester Thermoplastic		Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Solder	Through Hole			Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2	M3 Threaded Insert Top Mount Opening

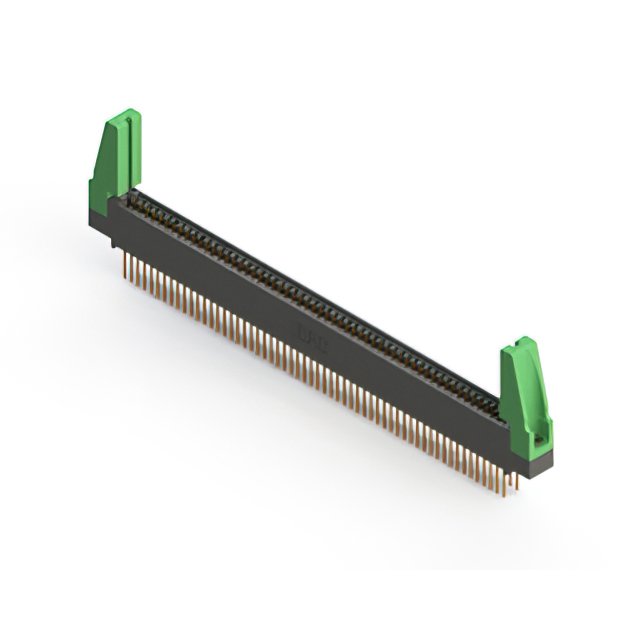

EDAC Inc. 395-116-541-588	2	Polyester Thermoplastic	Card Guides	Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Wire Wrap	Through Hole			Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 395-116-556-504	2	Polyester Thermoplastic	Card Extender	Female	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Solder	Board Edge Straddle Mount	0.156 "	3.96 mm	Black	-40 C	105 ░C	Cantilever	Copper Alloy	Gold	116	58	0.25 Ám	10 Áin	Dual	2
