3239 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN SPLICE 20-24 AWG CRIMP PIDG

Part	Number of Wire Entries	Termination	Terminal Type	Insulation	Color	Wire Gauge [Min]	Wire Gauge [Max]	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Thickness	Thickness	Contact Finish	Contact Material	Mounting Type	Material - Insulation	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge	Thickness [custom]	Thickness [custom]	Body Material	Body Finish	Accessory Type	For Use With/Related Products	Stud/Tab Size	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges	Width - Outer Edges	Length - Termination [x]	Length - Termination [x]

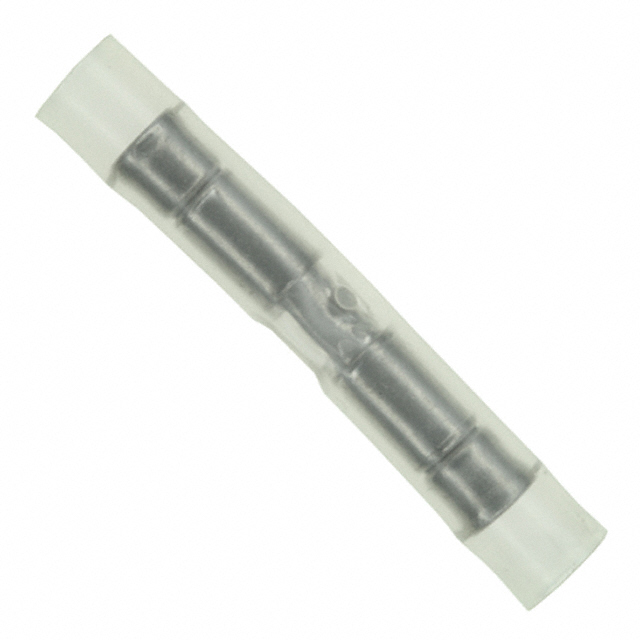

TE Connectivity Raychem Cable Protection 323975	2	Crimp	Butt Splice Individual Openings Inline	Fully Insulated	Natural	20 AWG	24 AWG	Serrated Mating Area
TE Connectivity Raychem Cable Protection 323913		Crimp	Circular	Insulated	Yellow	22 AWG	26 AWG	Serrated Termination	0.203 in	5.16 mm	2 Stud	0.027 in	0.69 mm	Tin	Copper	Free Hanging (In-Line)	Nylon Polyamide (PA)	0.055 in	0.79 mm	1.4 mm	0.031 in	0.646 in	16.41 mm

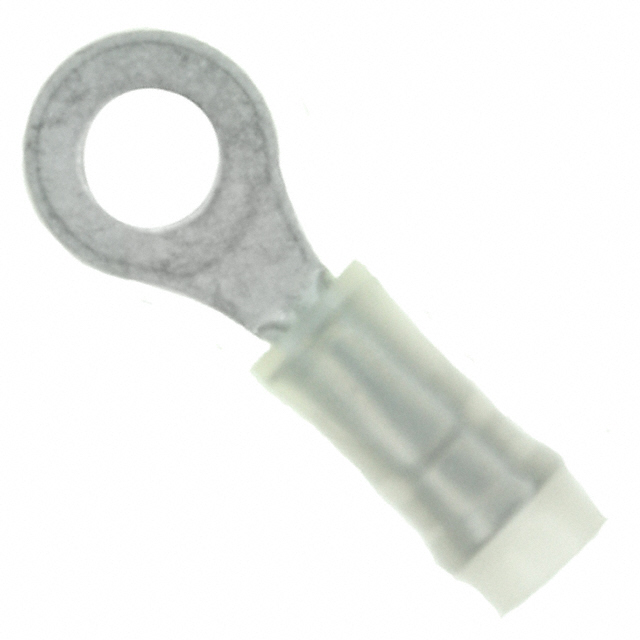

TE Connectivity Raychem Cable Protection 323986		Crimp	Circular	Insulated	Natural	20 AWG	24 AWG	Serrated Termination	0.281 in	7.14 mm	6 Stud	0.023 in	0.58 mm	Tin	Copper	Free Hanging (In-Line)	Nylon Polyamide (PA)							0.1 "	2.54 mm	0.04 in	1.02 mm
TE Connectivity Raychem Cable Protection 323974		Crimp	Flat Sided	Insulated	Red			Serrated Termination			10 Stud	0.04 in	1.02 mm	Tin	Copper	Free Hanging (In-Line)	Vinyl					1.578 in	40.08 mm					7.57 mm	0.298 "	0.375 in	9.53 mm	8 AWG
TE Connectivity Raychem Cable Protection 323994	2	Crimp	Butt Splice Individual Openings Inline	Fully Insulated	Yellow	22 AWG	26 AWG	Serrated Mating Area
TE Connectivity Raychem Cable Protection 323914		Crimp	Circular	Insulated	Yellow	22 AWG	26 AWG	Serrated Termination	0.203 in	5.16 mm	4 Stud			Tin	Copper	Free Hanging (In-Line)	Nylon Polyamide (PA)					0.646 in	16.41 mm	0.082 "	2.08 mm	0.05 in	1.27 mm						0.46 mm	0.018 in
TE Connectivity Raychem Cable Protection 323934					Green			Shielded																											Copper	Zinc	Ferrule	141A 223 Cables RG-58C
TE Connectivity Raychem Cable Protection 323905		Crimp	Standard	Non-Insulated				Brazed Seam High Temperature Serrated Termination							Nickel	Free Hanging (In-Line)																							8 Stud	7.92 mm	0.312 in	0.171 in	4.34 mm	0.385 in	9.78 mm	0.181 in	4.6 mm

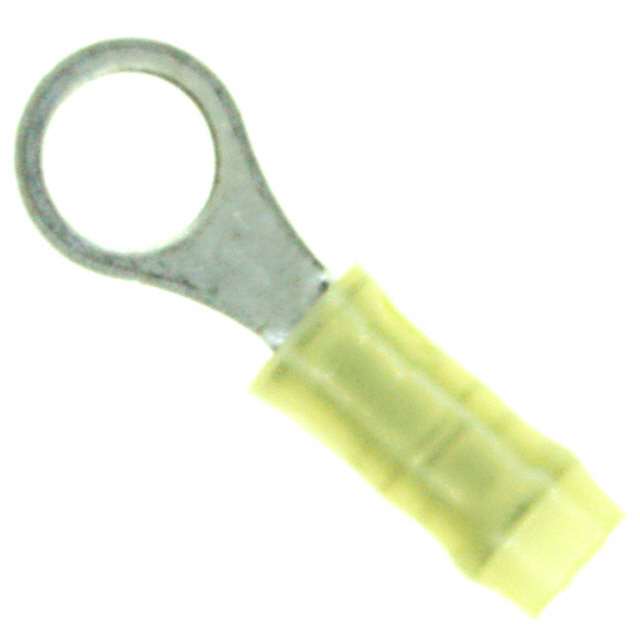

TE Connectivity Raychem Cable Protection 323915		Crimp	Circular	Insulated	Yellow	22 AWG	26 AWG	Serrated Termination	0.203 in	5.16 mm	6 Stud			Tin	Copper	Free Hanging (In-Line)	Nylon Polyamide (PA)					0.646 in	16.41 mm	0.082 "	2.08 mm	0.05 in	1.27 mm						0.46 mm	0.018 in
