T 3361 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG FMALE 5P GOLD SLDR CUP

Part	Mounting Type	Ingress Protection	Primary Material	Shell Material	Connector Type	Shell Finish	Current Rating (Amps)	Shielding	Orientation	Shell Size - Insert	Features	Number of Positions	Fastening Type	Contact Finish - Mating	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Size	Contact Shape	Housing Color	Contact Type	Material Flammability Rating	Note	Type

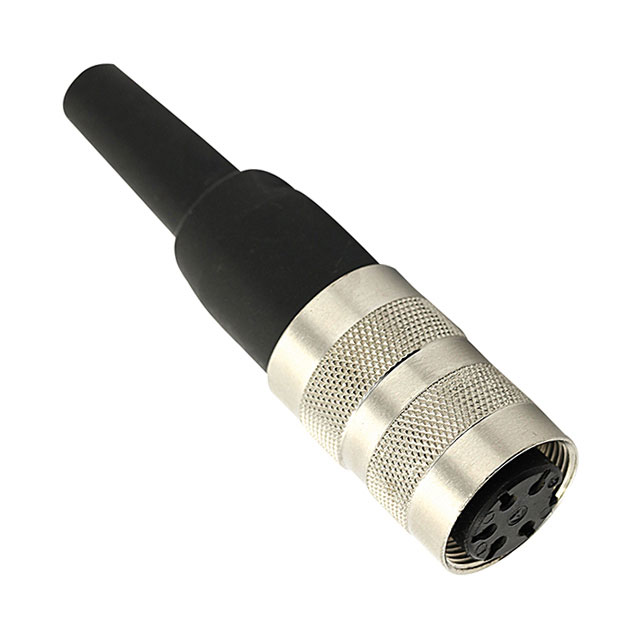

Amphenol Tuchel Industrial T 3361 018	Free Hanging (In-Line)	IP40	Metal	Die Cast	Plug Female Sockets	Nickel	7 A	Shielded	Keyed	M16-5	Strain Relief	5	Threaded	Gold	Silver	250 V	-40 C	100 °C

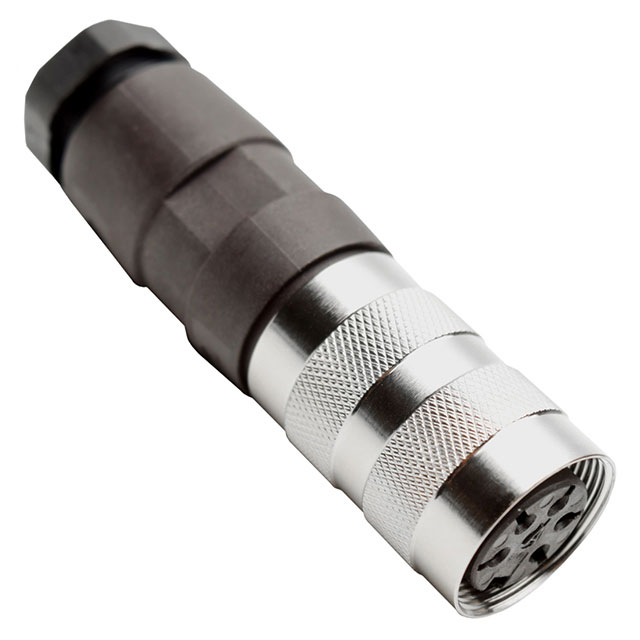

Amphenol Tuchel Industrial T 3361 002	Free Hanging (In-Line)	IP40	Metal	Die Cast	Plug Female Sockets	Nickel	7 A	Shielded	Keyed	M16-5	Cable Clamp Strain Relief	5	Threaded	Silver	Silver	250 V	-40 C	100 °C

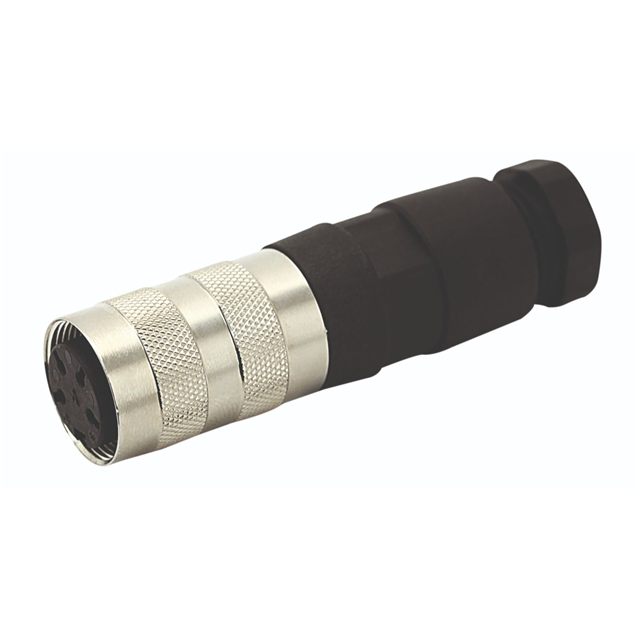

Amphenol Tuchel Industrial T 3361 552	Free Hanging (In-Line)	IP40		Die Cast	Plug Housing	Nickel		Shielded	Keyed	M16-5	Backshell Cable Clamp Coupling Nut	5	Threaded				-40 C	100 °C	Thermoplastic	1.5 mm	Circular	Black Silver	Crimp	UL94 V-0	Contacts Not Included	For Female Sockets
Amphenol Tuchel Industrial T 3361 130	Free Hanging (In-Line)	IP40	Metal	Die Cast	Plug Female Sockets	Nickel	7 A	Shielded	Keyed	M16-5(S)	Stereo Strain Relief	5	Threaded	Silver	Silver	250 V	-40 C	100 °C
Amphenol Tuchel Industrial T 3361 020	Free Hanging (In-Line)	IP40	Metal	Die Cast	Plug Female Sockets	Nickel	7 A	Shielded	Keyed	M16-5(S)	Cable Clamp Stereo Strain Relief	5	Threaded	Silver	Silver	250 V	-40 C	100 °C
Amphenol Tuchel Industrial T 3361 551	Free Hanging (In-Line)	IP40		Die Cast	Plug Housing	Nickel		Shielded	Keyed	M16-5	Cable Clamp Coupling Nut Strain Relief	5	Threaded				-40 C	100 °C	Thermoplastic	1.5 mm	Circular	Silver	Crimp	UL94 V-0	Contacts Not Included	For Female Sockets
Amphenol Tuchel Industrial T 3361 028	Free Hanging (In-Line)	IP40	Metal	Die Cast	Plug Female Sockets	Nickel	7 A	Shielded	Keyed	M16-5	Cable Clamp Strain Relief	5	Threaded	Gold	Silver	250 V	-40 C	100 °C

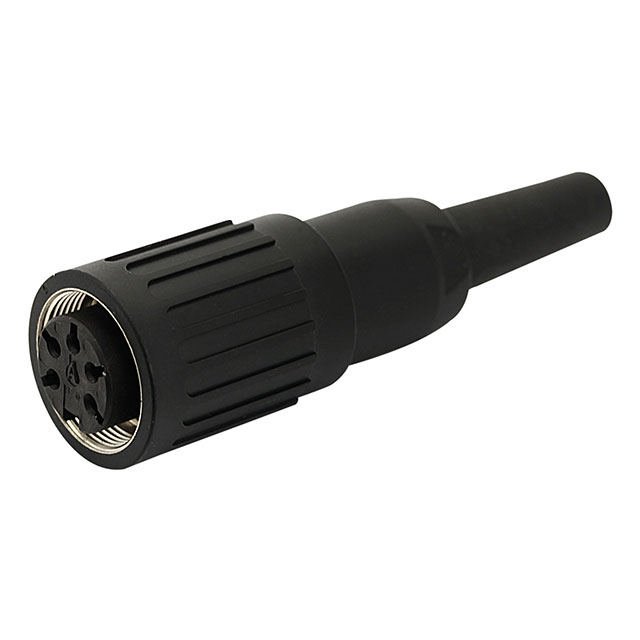

Amphenol Tuchel Industrial T 3361 013	Free Hanging (In-Line)	IP40	Metal	Die Cast	Plug Female Sockets	Nickel	7 A	Shielded	Keyed	M16-5	Strain Relief	5	Threaded	Silver	Silver	250 V	-40 C	100 °C

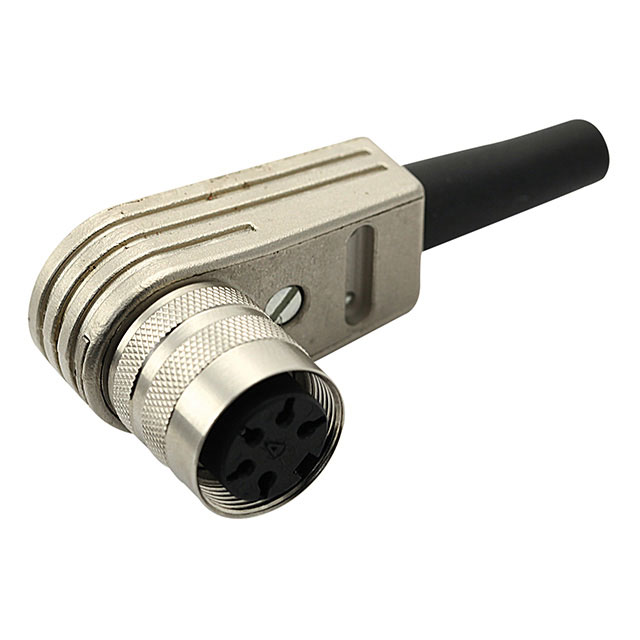

Amphenol Tuchel Industrial T 3361 005	Free Hanging (In-Line) Right Angle	IP40	Metal	Die Cast	Plug Female Sockets	Nickel	7 A	Shielded	Keyed	M16-5	Strain Relief	5	Threaded	Silver	Silver	250 V	-40 C	100 °C
