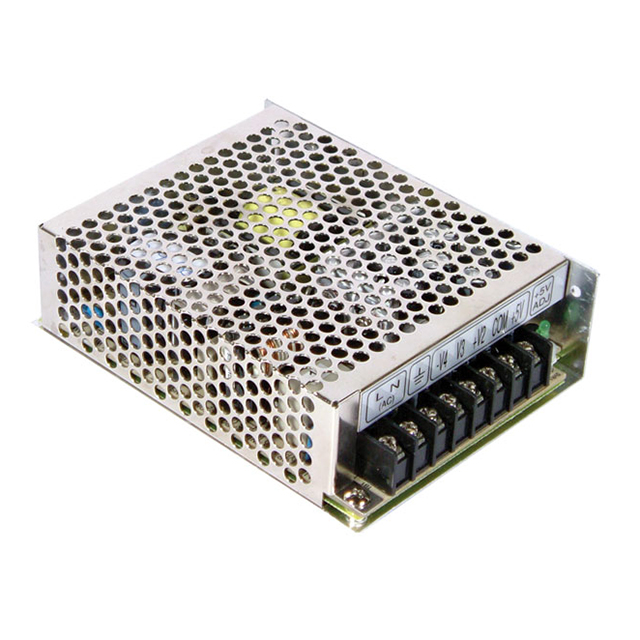

RQ-65 Series

Catalog

AC/DC CNVRTR 5V 15V -5V -15V 65W

Part	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output 1	Voltage - Isolation	Applications	Current - Output 4	Efficiency	Mounting Type	Approval Agency	Voltage - Output 1	Current - Output 3	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 4	Voltage - Output 3	Features	Current - Output 2	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Power (Watts)
MEAN WELL USA Inc. RQ-65C	15 V	70 °C	-25 °C	Enclosed	5 A	3000 V	ITE (Commercial)	500 mA	76 %	Chassis Mount	CB CE cURus TUV	5 V	500 mA	88 VAC 125 VDC	264 VAC 373 VDC	-15 V	-5 V	Adjustable Output Universal Input	2 A	129 mm	38 mm	3.86 "	5.08 "	1.5 in	98 mm	4
MEAN WELL USA Inc. RQ-65B	12 V	70 °C	-25 °C	Enclosed	6 A	3000 V	ITE (Commercial)	500 mA	76 %	Chassis Mount	CB CE cURus TUV	5 V	500 mA	88 VAC 125 VDC	264 VAC 373 VDC	-12 V	-5 V	Adjustable Output Universal Input	2 A	129 mm	38 mm	3.86 "	5.08 "	1.5 in	98 mm	4	63 W
MEAN WELL USA Inc. RQ-65D	12 V	70 °C	-25 °C	Enclosed	4 A	3000 V	ITE (Commercial)	500 mA	78 %	Chassis Mount	CB CE cURus TUV	5 V		88 VAC 125 VDC	264 VAC 373 VDC	-12 V	24 V	Adjustable Output Universal Input	1.5 A	129 mm	38 mm	3.86 "	5.08 "	1.5 in	98 mm	4	68 W
