ACDC02 Series
Manufacturer: Kingbright
Beta
⌘K
LED DISPLAYS & ACCESSORIES DOUBLE GREEN 570NM COMMON CATHODE
| Part | Common Pin | Power Dissipation (Max) [Max] | Current - Test | Color | Millicandela Rating | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Number of Characters | Digit/Alpha Size | Digit/Alpha Size | Package / Case | Voltage - Forward (Vf) (Typ) | Display Type | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

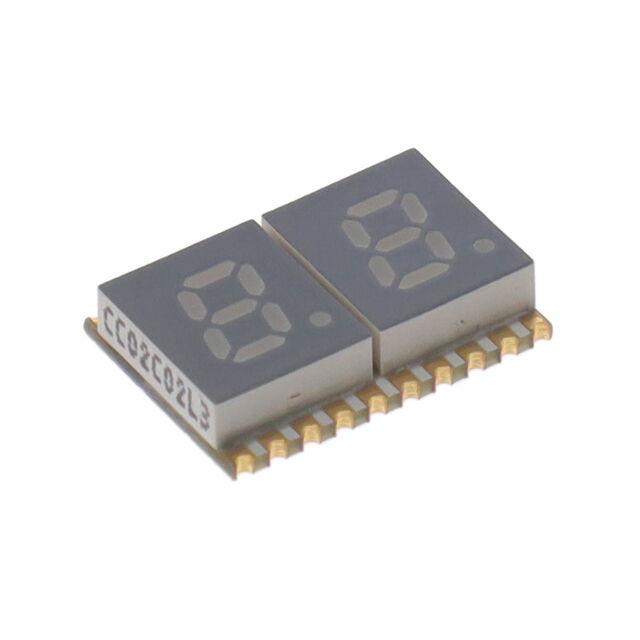

 Kingbright | Common Cathode | 75 mw | 20 mA | Green | 12 mcd | 0.118 in | 8 mm | 14.1 mm | 3 mm | 0.315 in | 0.555 in | 2 | 0.2 in | 5.08 mm | 20-SMD No Lead | 2.1 V | 7-Segment | |

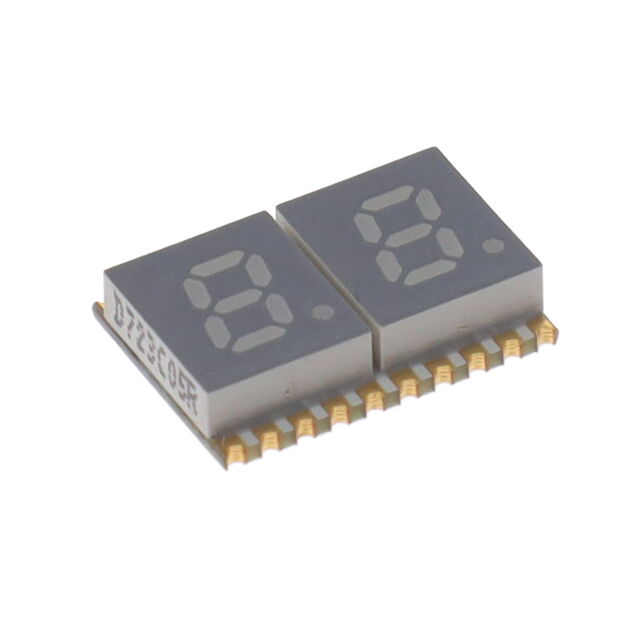

 Kingbright | Common Cathode | 75 mw | 20 mA | Red | 30 mcd | 0.118 in | 8 mm | 14.1 mm | 3 mm | 0.315 in | 0.555 in | 2 | 0.2 in | 5.08 mm | 20-SMD No Lead | 1.95 V | 7-Segment | 650 nm |
 Kingbright | Common Cathode | 62.5 mW | 20 mA | Green | 3.9 mcd | 0.118 in | 8 mm | 14.1 mm | 3 mm | 0.315 in | 0.555 in | 2 | 0.2 in | 5.08 mm | 20-SMD No Lead | 2.2 V | 7-Segment | 565 nm |
