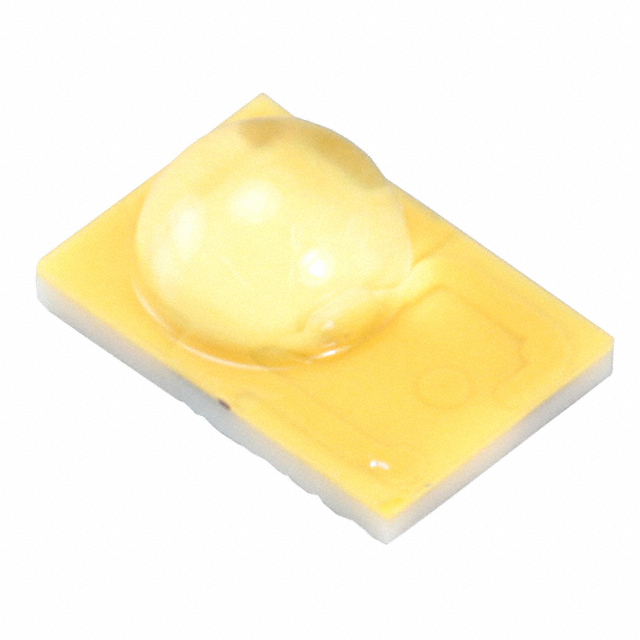

LXA7-PW Series

Manufacturer: Lumileds

Catalog

LED LUXEON COOL WHITE 6500K 3SMD

Part	Thermal Resistance of Package	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Color	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	CCT (K)	Flux @ 85°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Mounting Type	Viewing Angle	Package / Case	CCT (K)
Lumileds LXA7-PW65	6 °C/W	70	112 lm/W	Cool White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	6500 K	220 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)
Lumileds LXA7-PW50-293	6 °C/W	70	112 lm/W	Cool White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	5000 K	220 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)	5-Step MacAdam Ellipse
Lumileds LXA7-PW30	6 °C/W	70	92 lm/W	Warm White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	3000 K	180 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)	5-Step MacAdam Ellipse
Lumileds LXA7-PW40-339	6 °C/W	70	109 lm/W	Neutral White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	4000 K	215 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)
Lumileds LXA7-PW30-447	6 °C/W	70	92 lm/W	Warm White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	3000 K	180 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)	5-Step MacAdam Ellipse
Lumileds LXA7-PW30-249	6 °C/W	70	92 lm/W	Warm White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	3000 K	180 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)	5-Step MacAdam Ellipse
Lumileds LXA7-PW50-267	6 °C/W	70	112 lm/W	Cool White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	5000 K	220 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)	5-Step MacAdam Ellipse
Lumileds LXA7-PW50-318	6 °C/W	70	112 lm/W	Cool White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	5000 K	220 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)	5-Step MacAdam Ellipse
Lumileds LXA7-PW40-354	6 °C/W	70	109 lm/W	Neutral White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	4000 K	215 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)
Lumileds LXA7-PW40-384	6 °C/W	70	109 lm/W	Neutral White	1 A	0.177 in	4.49 mm	3.05 mm	0.12 in	4000 K	215 lm	2.1 mm	0.083 in	2.81 V	Surface Mount	120 °	1812 (4532 Metric)
