M2042SS Series

Catalog

SWITCH TOGGLE 4PDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Mounting Type	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination	Voltage Rating - DC	Termination Style	Features	Circuit	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Actuator Length [x]
NKK Switches M2042SS1G06	Brass Chrome Plated	50000 Cycles	28 V	Panel Mount	Standard Round	6.5 mm	Non-Illuminated	28 V	Wire Wrap	Epoxy Sealed Terminals	4PDT	0.4 VA	On-On	85 °C	-30 ░C	1/4-40
NKK Switches M2042SS1W01	Brass Chrome Plated	25000 Steps	125 V	Panel Mount	Standard Round	6.5 mm	Non-Illuminated	30 V	Solder Lug	Epoxy Sealed Terminals	4PDT	4 A 6 A	On-On	85 °C	-30 ░C	1/4-40
NKK Switches M2042SS1W03-CF	Brass Chrome Plated	25000 Steps	125 V	Panel Mount	Standard Round with Cap	6.5 mm	Non-Illuminated	30 V	PC Pin	Green Cap	4PDT	4 A 6 A	On-On	85 °C	-30 ░C	1/4-40	13.1 mm
NKK Switches M2042SS1W01-BA	Brass Chrome Plated	25000 Steps	125 V	Panel Mount	Standard Round with Cap	6.5 mm	Non-Illuminated	30 V	Solder Lug	Black Cap	4PDT	4 A 6 A	On-On	85 °C	-30 ░C	1/4-40	13.5 mm

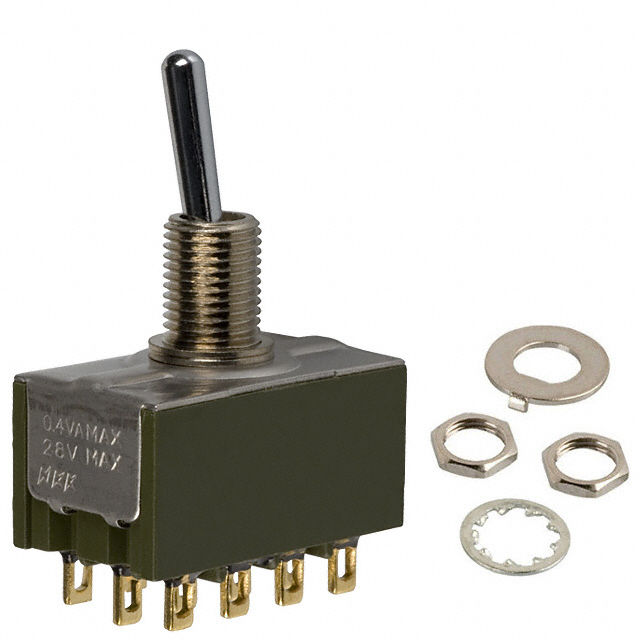

NKK Switches M2042SS1G01	Brass Chrome Plated	50000 Cycles	28 V	Panel Mount	Standard Round	6.5 mm	Non-Illuminated	28 V	Solder Lug	Epoxy Sealed Terminals	4PDT	0.4 VA	On-On	85 °C	-30 ░C	1/4-40

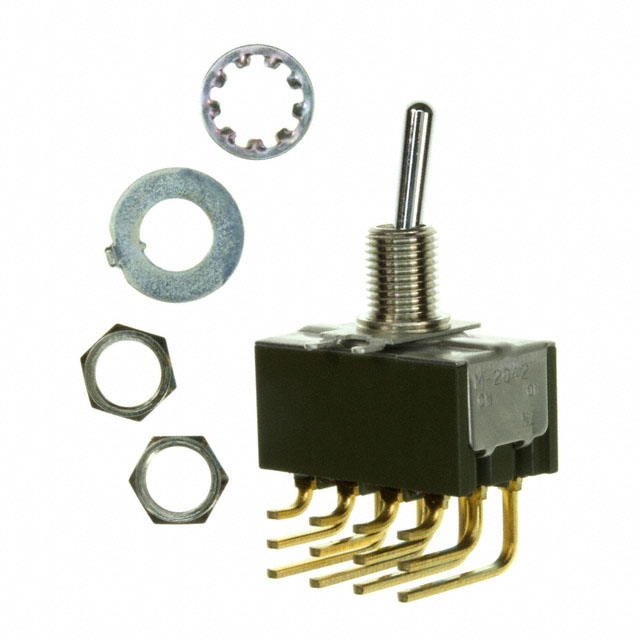

NKK Switches M2042SS1G45	Brass Chrome Plated	50000 Cycles	28 V	Panel Mount Right Angle Vertical	Standard Round	6.5 mm	Non-Illuminated	28 V	PC Pin	Epoxy Sealed Terminals	4PDT	0.4 VA	On-On	85 °C	-30 ░C	1/4-40
NKK Switches M2042SS1G45-BA	Brass Chrome Plated	50000 Cycles	28 V	Panel Mount Right Angle Vertical	Standard Round with Cap	6.5 mm	Non-Illuminated	28 V	PC Pin	Black Cap	4PDT	0.4 VA	On-On	85 °C	-30 ░C	1/4-40	13.5 mm
NKK Switches M2042SS1G03-BC	Brass Chrome Plated	50000 Cycles	28 V	Panel Mount	Standard Round with Cap	6.5 mm	Non-Illuminated	28 V	PC Pin	Red Cap	4PDT	0.4 VA	On-On	85 °C	-30 ░C	1/4-40	13.5 mm

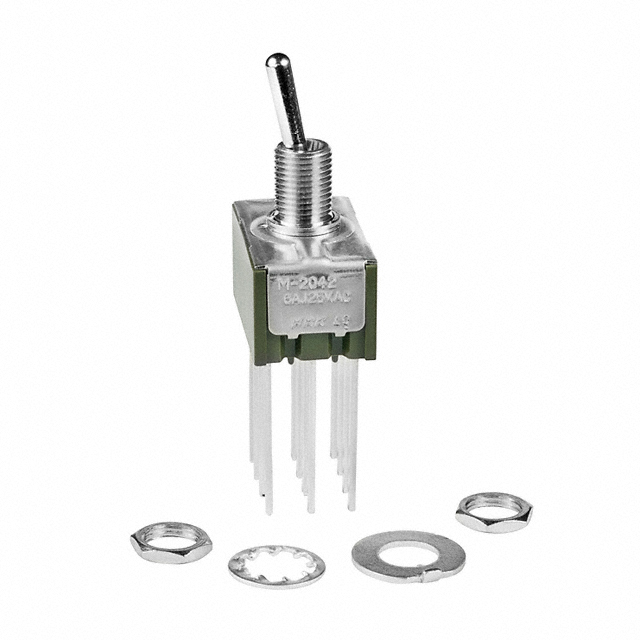

NKK Switches M2042SS1W06	Brass Chrome Plated	25000 Steps	125 V	Panel Mount	Standard Round	6.5 mm	Non-Illuminated	30 V	Wire Wrap	Epoxy Sealed Terminals	4PDT	4 A 6 A	On-On	85 °C	-30 ░C	1/4-40
NKK Switches M2042SS1W03-BG	Brass Chrome Plated	25000 Steps	125 V	Panel Mount	Standard Round with Cap	6.5 mm	Non-Illuminated	30 V	PC Pin	Blue Cap	4PDT	4 A 6 A	On-On	85 °C	-30 ░C	1/4-40	13.5 mm
