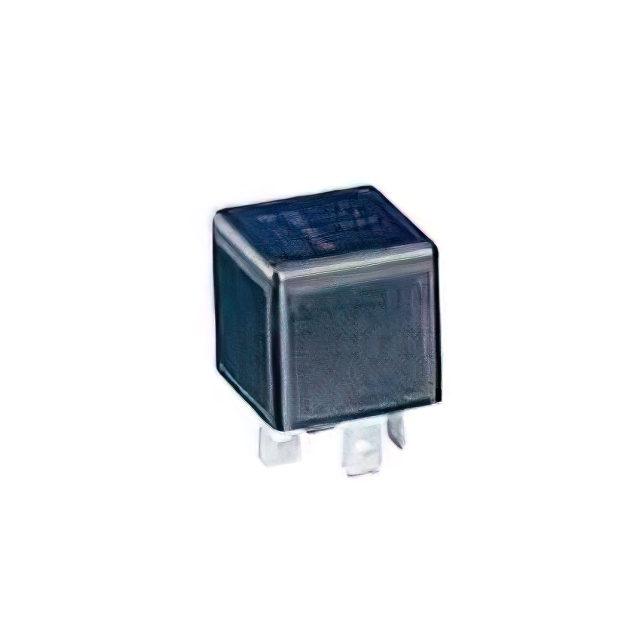

1393302 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
V23134A1052X299
| Part | Coil Power | Coil Resistance | Contact Material | Operate Time | Coil Voltage | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Must Operate Voltage | Coil Current | Must Release Voltage | Contact Rating (Current) | Features | Switching Voltage | Contact Form | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.6 W | 90 Ohms | Silver Alloy | 7 ms | 12 VDC | Non Latching | 125 °C | -40 C | 2 ms | 7.2 VDC | 133.3 mA | 1.6 VDC | ||||||
 TE Connectivity AMP Connectors | 1.8 W | 90 Ohms | Silver Alloy | 7 ms | 12 VDC | Non Latching | 125 °C | -40 C | 2 ms | 7.2 VDC | 133.3 mA | 1.6 VDC | 40 A | Resistor | 14 VDC | SPDT (1 Form C) | Chassis Mount | |
 TE Connectivity AMP Connectors | 1.8 W | 324 Ohms | Silver Alloy | 7 ms | 24 VDC | Non Latching | 125 °C | -40 C | 2 ms | 14.4 VDC | 3.2 VDC | 60 A | Resistor | 24 VDC | SPDT (1 Form C) | Socketable | Plug In Quick Connect - 0.250" (6.3mm) | |
TE Connectivity AMP Connectors | 12 VDC | Non Latching | 7.2 VDC | 166 mA | 1.2 VDC | 70 A | SPST-NO (1 Form A) | Socketable | Plug In Quick Connect - 0.250" (6.3mm) |
