830-80 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER SMD R/A 41POS 2MM

...

Part	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Termination	Number of Positions	Number of Rows	Contact Shape	Connector Type	Insulation Color	Voltage Rating	Current Rating (Amps)	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Post	Contact Type	Shrouding	Number of Positions Loaded	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions [custom]	Features	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]

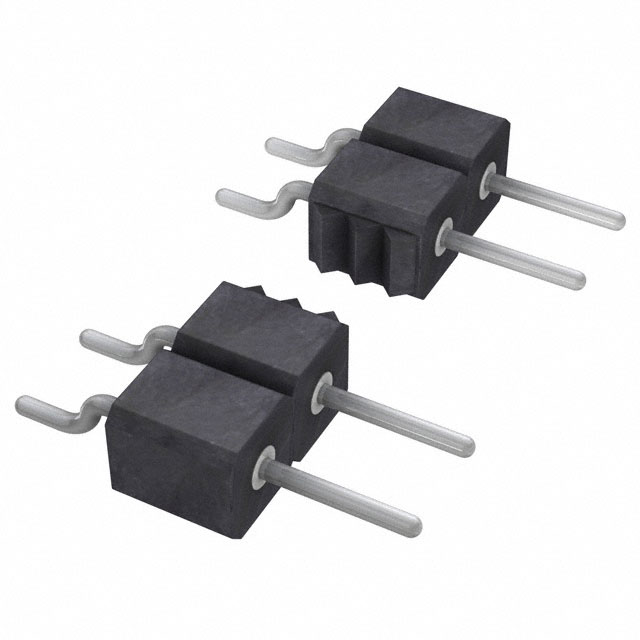

Preci-Dip 830-80-041-40-001101	0.141 in	3.6 mm	-55 C	125 °C	Right Angle Surface Mount	Brass	Solder	41	1	Circular	Header	Black	150 VDC	3 A	Push-Pull	0.087 "	2.2 mm	Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm

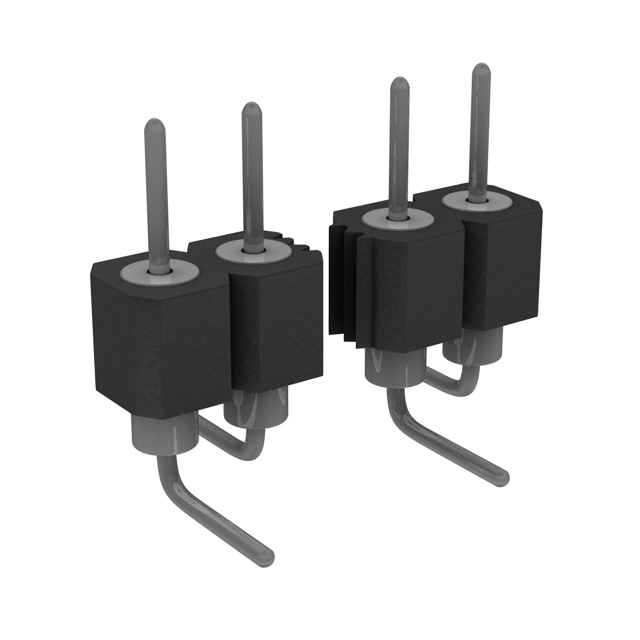

Preci-Dip 830-80-031-30-001101	0.141 in	3.6 mm	-55 C	125 °C	Surface Mount	Brass	Solder		1	Circular	Header	Black	150 VDC	3 A	Push-Pull			Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm	31
Preci-Dip 830-80-006-30-001191	0.141 in	3.6 mm	-55 C	125 °C	Surface Mount	Brass	Solder	6	1	Circular	Header	Black	150 VDC	3 A	Push-Pull			Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm		Pick and Place
Preci-Dip 830-80-009-40-001101	0.141 in	3.6 mm	-55 C	125 °C	Right Angle Surface Mount	Brass	Solder	9	1	Circular	Header	Black	150 VDC	3 A	Push-Pull	0.087 "	2.2 mm	Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm
Preci-Dip 830-80-009-40-001191	0.141 in	3.6 mm	-55 C	125 °C	Right Angle Surface Mount	Brass	Solder	9	1	Circular	Header	Black	150 VDC	3 A	Push-Pull	0.087 "	2.2 mm	Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm

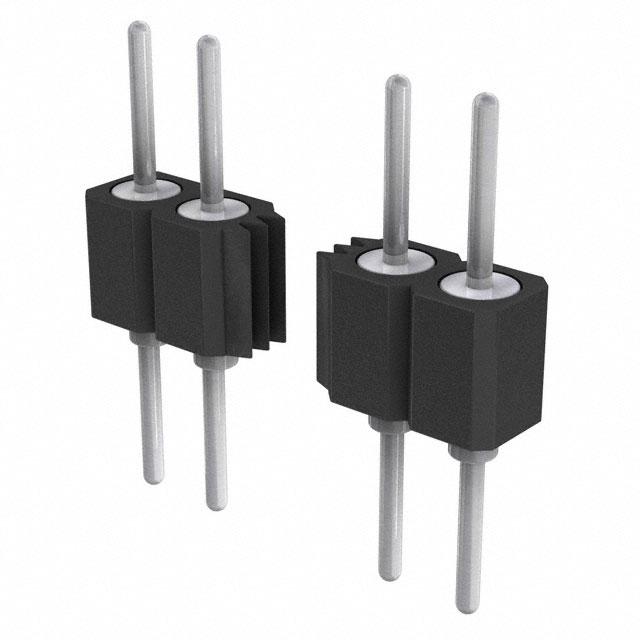

Preci-Dip 830-80-041-10-001101	0.141 in	3.6 mm	-55 C	125 °C	Through Hole	Brass	Solder	41	1	Circular	Header	Black	150 VDC	3 A	Push-Pull			Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm			10 mm	0.394 in	0.114 in	2.9 mm
Preci-Dip 830-80-021-30-001101	0.141 in	3.6 mm	-55 C	125 °C	Surface Mount	Brass	Solder	21	1	Circular	Header	Black	150 VDC	3 A	Push-Pull			Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm
Preci-Dip 830-80-017-40-001101	0.141 in	3.6 mm	-55 C	125 °C	Right Angle Surface Mount	Brass	Solder		1	Circular	Header	Black	150 VDC	3 A	Push-Pull	0.087 "	2.2 mm	Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm
Preci-Dip 830-80-011-40-001101	0.141 in	3.6 mm	-55 C	125 °C	Right Angle Surface Mount	Brass	Solder	11	1	Circular	Header	Black	150 VDC	3 A	Push-Pull	0.087 "	2.2 mm	Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm

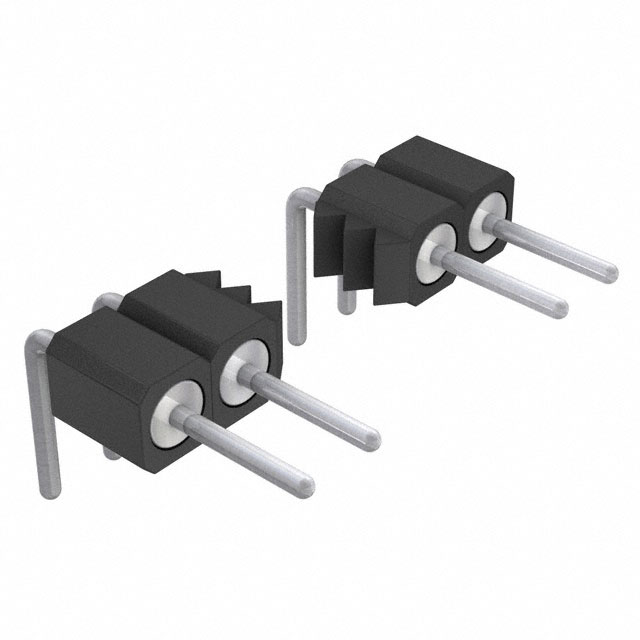

Preci-Dip 830-80-033-20-001101	0.141 in	3.6 mm	-55 C	125 °C	Right Angle Through Hole	Brass	Solder		1	Circular	Header	Black	150 VDC	3 A	Push-Pull	0.087 "	2.2 mm	Tin	Male Pin	Unshrouded	All	UL94 V-0	0.079 "	2 mm	33				0.126 "	3.2 mm
