RBB25 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 50POS 0.050

Part	Material - Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Mounting Type	Number of Positions	Contact Material	Number of Rows [custom]	Card Type	Read Out	Card Thickness	Card Thickness	Contact Type	Color	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Gender	Features	Flange Feature
Sullins Connector Solutions RBB25DYHN	Polyphenylene Sulfide (PPS)	Solder Staggered	0.25 Ám	10 Áin	25	Through Hole	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Cantilever	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female
Sullins Connector Solutions RBB25DYFR	Polyphenylene Sulfide (PPS)	Solder	0.25 Ám	10 Áin	25	Surface Mount	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Cantilever	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female	Board Lock
Sullins Connector Solutions RBB25DYHT	Polyphenylene Sulfide (PPS)	Solder Staggered	0.25 Ám	10 Áin	25	Through Hole	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Cantilever	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female		4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions RBB25DHNN	Polyphenylene Sulfide (PPS)	Solder	0.25 Ám	10 Áin	25	Through Hole	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Hairpin Bellows	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female
Sullins Connector Solutions RBB25DYFN-S1355	Polyphenylene Sulfide (PPS)	Solder	0.25 Ám	10 Áin	25	Surface Mount	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Cantilever	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female

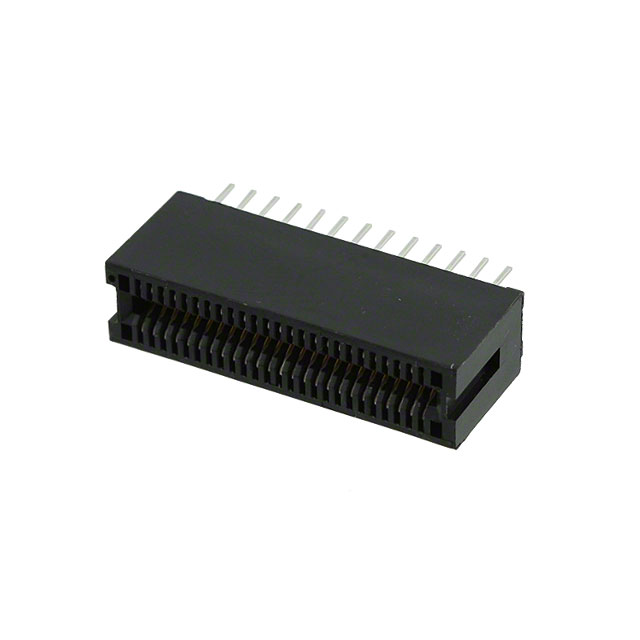

Sullins Connector Solutions RBB25DHHN	Polyphenylene Sulfide (PPS)	Solder Staggered	0.25 Ám	10 Áin	25	Through Hole	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Hairpin Bellows	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female
Sullins Connector Solutions RBB25DHFT	Polyphenylene Sulfide (PPS)	Solder	0.25 Ám	10 Áin	25	Surface Mount	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Hairpin Bellows	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female		4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions RBB25DYRR	Polyphenylene Sulfide (PPS)	Solder	0.25 Ám	10 Áin	25	Board Edge Straddle Mount	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Cantilever	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female	Board Lock Card Extender
Sullins Connector Solutions RBB25DYRN	Polyphenylene Sulfide (PPS)	Solder	0.25 Ám	10 Áin	25	Board Edge Straddle Mount	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Cantilever	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female	Card Extender
Sullins Connector Solutions RBB25DYHN-S1355	Polyphenylene Sulfide (PPS)	Solder Staggered	0.25 Ám	10 Áin	25	Through Hole	50	Phosphor Bronze	2	Non Specified - Dual Edge	Dual	1.57 mm	0.062 in	Cantilever	Black	Gold	-65 ░C	125 °C	0.05 in	1.27 mm	Female
