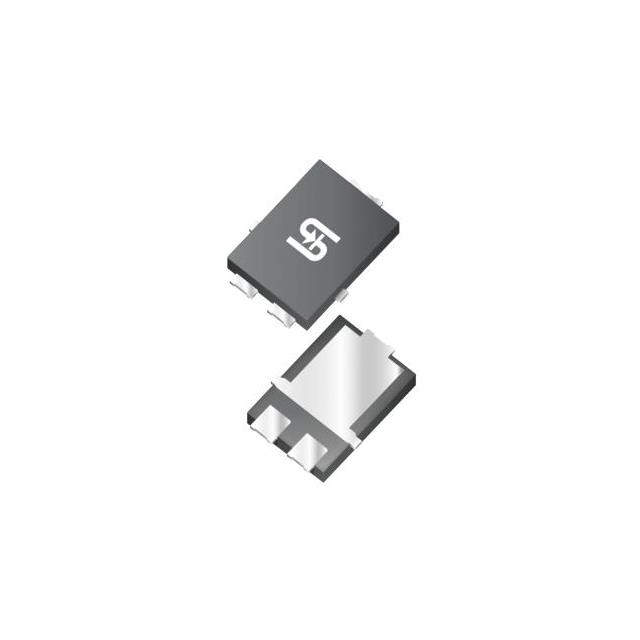

TUAR4 Series

Catalog

250NS, 4A, 600V, FAST RECOVERY RECTIFIER

Part	Supplier Device Package	Capacitance @ Vr, F	Mounting Type	Technology	Grade	Current - Average Rectified (Io)	Qualification	Speed	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]
Taiwan Semiconductor Corporation TUAR4JH	SMPC4.6U	31 pF	Surface Mount	Standard	Automotive	4 A	AEC-Q101	200 mA 500 ns	5 µA	-55 °C	150 °C	TO-277 3-PowerDFN	1.4 V	250 ns	600 V
Taiwan Semiconductor Corporation TUAR4GH	SMPC4.6U	31 pF	Surface Mount	Standard	Automotive	4 A	AEC-Q101	200 mA 500 ns	5 µA	-55 °C	150 °C	TO-277 3-PowerDFN	1.4 V	150 ns	400 V
