630-7W2 Series
Manufacturer: EDAC Inc.
Beta
⌘K

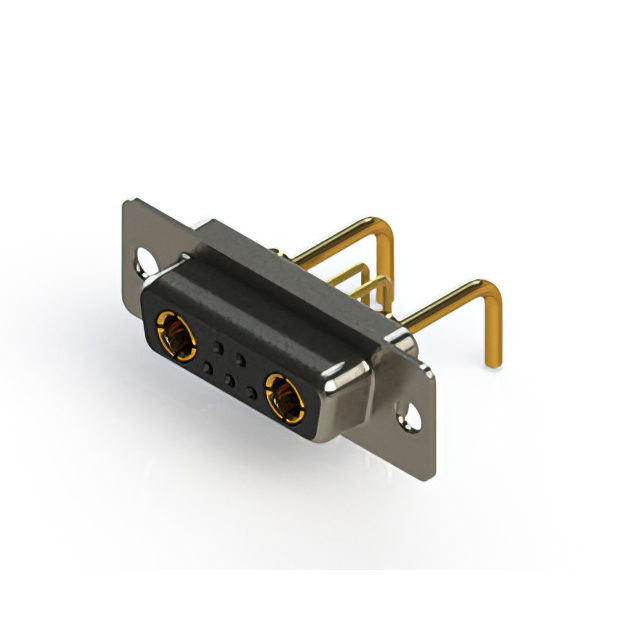

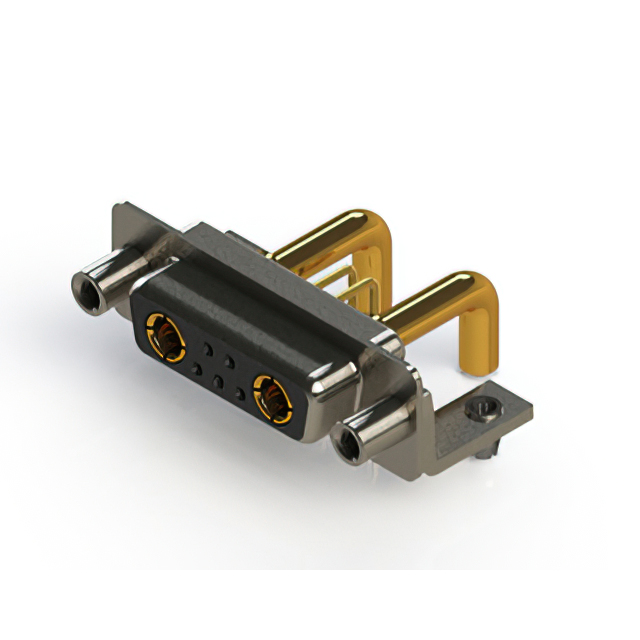

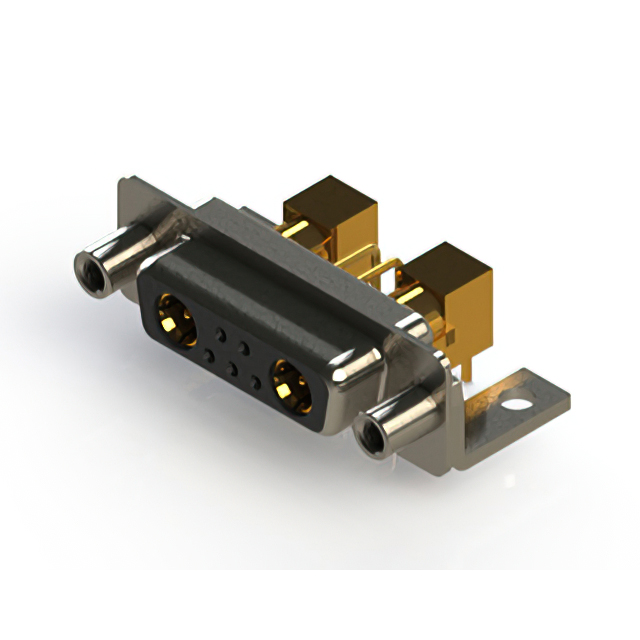

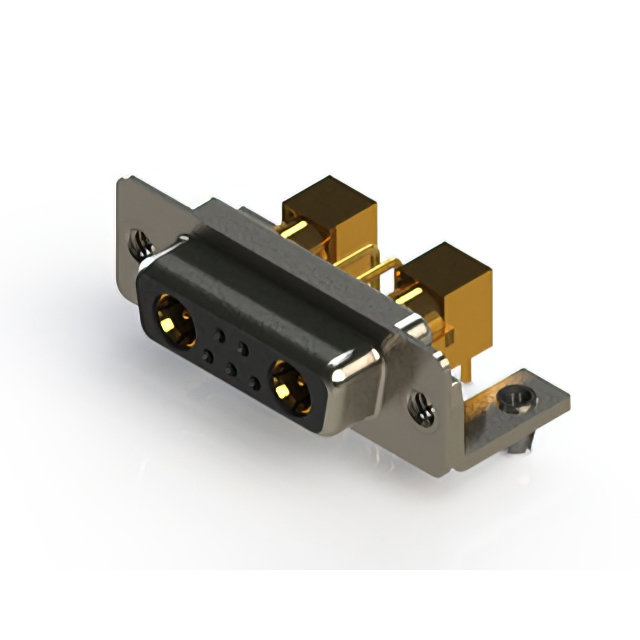

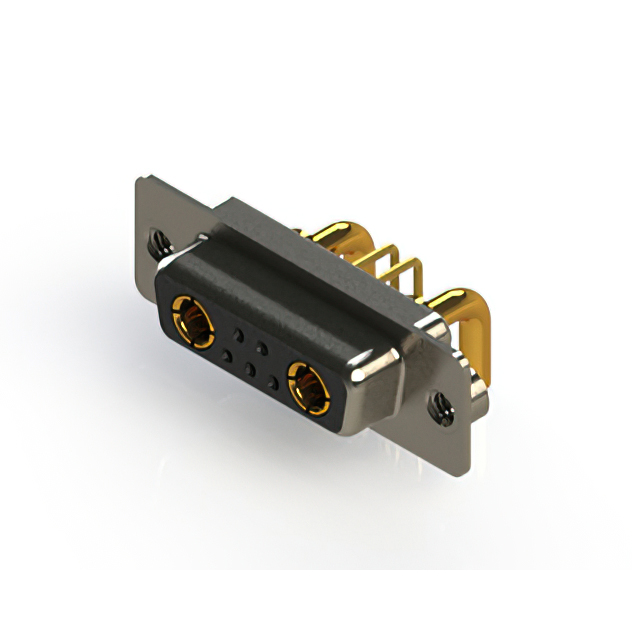

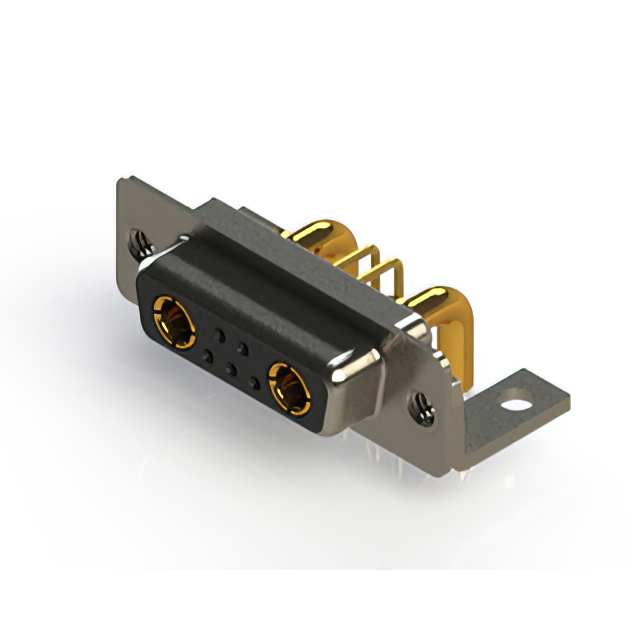

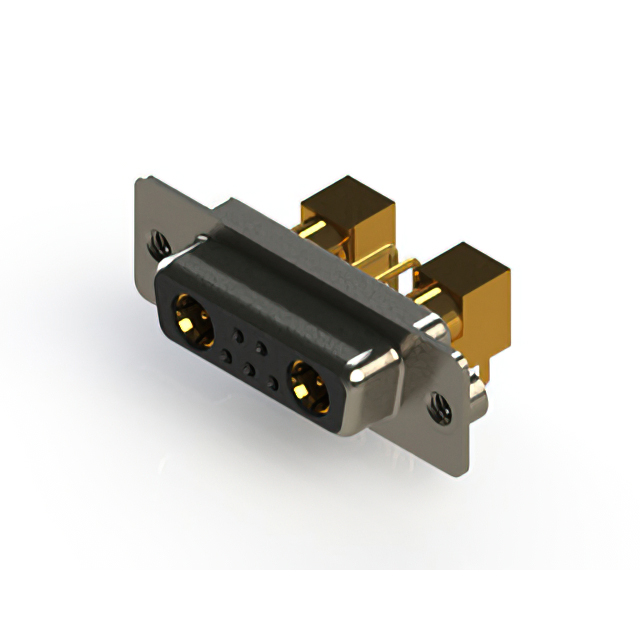

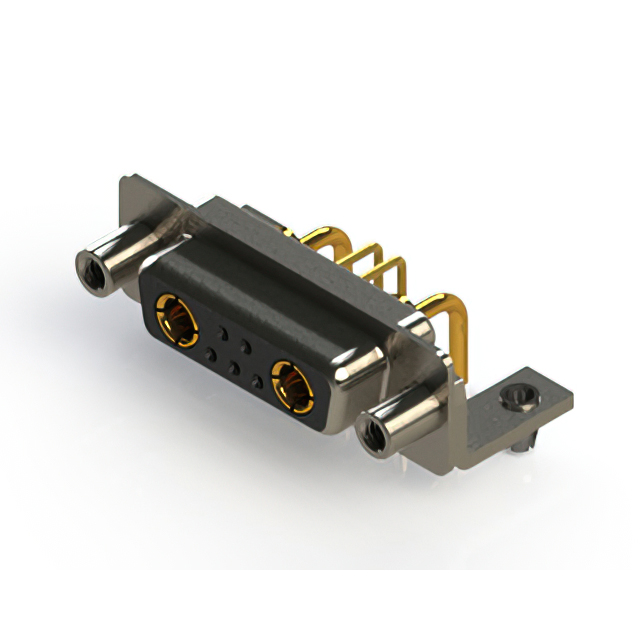

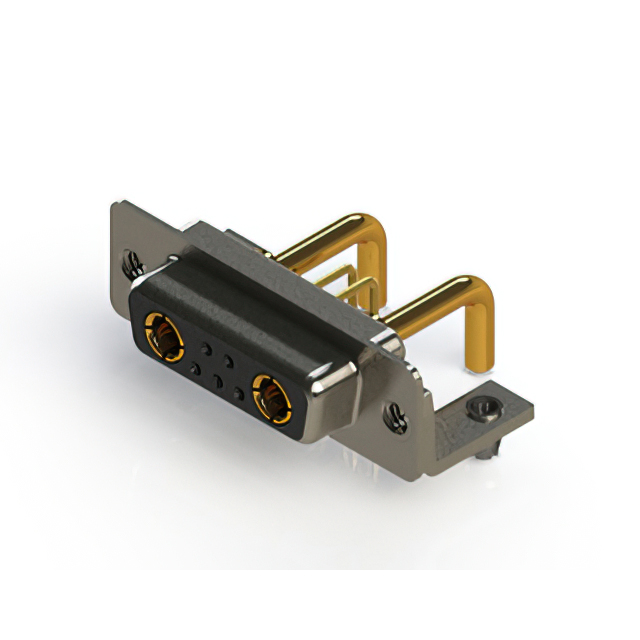

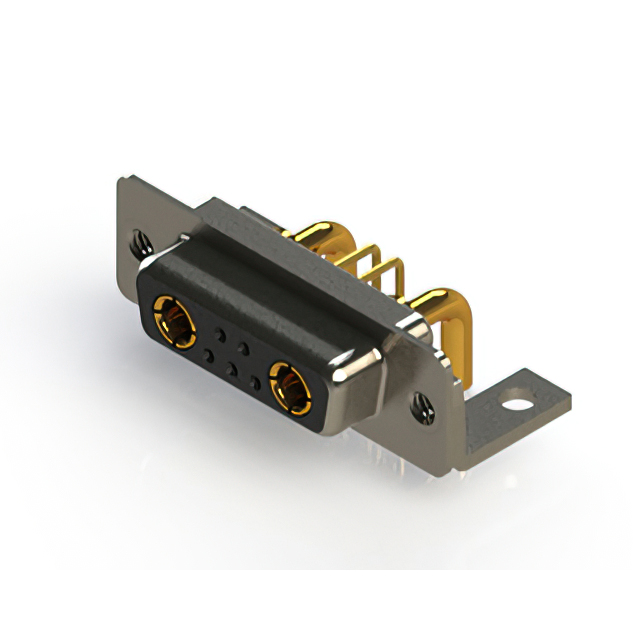

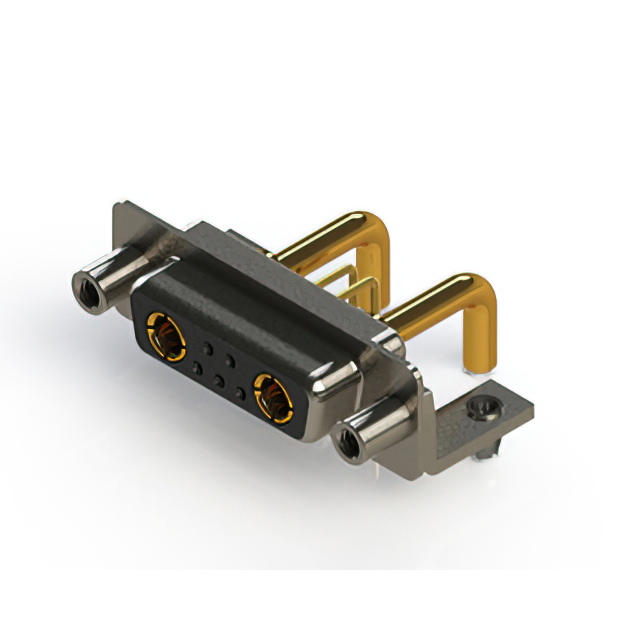

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS
| Part | Color | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mounting Type | Number of Rows [custom] | Connector Type | Connector Style | Contact Type | Contact Finish | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Contact Finish Thickness | Backset Spacing | Backset Spacing | Material Flammability Rating | Current Rating (Amps) | Termination | Flange Feature | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Contact Finish Thickness | Features | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Signal and Power | Gold | 7 | 5 | 2 | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | UL94 V-0 | 10A 5A | Solder | Housing/Shell | 4-40 | A DA | 2 | 7W2 | ||||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Signal and Power | Gold | 7 | 5 | 2 | 9.4 mm | 0.37 in | UL94 V-0 | 10A 5A | Solder | 4-40 | A DA | 2 | 7W2 | Nickel Plated Steel | Flash | Board Lock Mounting Brackets | ||||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Signal and Power | Gold | 7 | 5 | 2 | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | UL94 V-0 | 20A 5A | Solder | Housing/Shell | 4-40 | A DA | 2 | 7W2 | Nickel Plated Steel | Mounting Brackets | ||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Signal and Power | Gold | 7 | 5 | 2 | 9.4 mm | 0.37 in | UL94 V-0 | Solder | Housing/Shell (M3) | A DA | 2 | 7W2 | Nickel Plated Steel | Flash | Mounting Brackets | 5 A 30 A | ||||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Signal and Power | Gold | 7 | 5 | 2 | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | UL94 V-0 | 20A 5A | Solder | Housing/Shell (M3) | A DA | 2 | 7W2 | Nickel Plated Steel | Board Lock Mounting Brackets | |||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Signal and Power | Gold | 7 | 5 | 2 | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | UL94 V-0 | 20A 5A | Solder | Board Side (M3) | A DA | 2 | 7W2 | Nickel Plated Steel | ||||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Coax Signal | Gold | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | UL94 V-0 | Solder | Housing/Shell (M3) | A DA | 2 | 7W2 | Nickel Plated Steel | Board Lock Mounting Brackets | 5 | 2 | |||||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Coax Signal | Gold | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | UL94 V-0 | Solder | Housing/Shell | 4-40 | A DA | 2 | 7W2 | 5 | 2 | ||||||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Signal and Power | Gold | 7 | 5 | 2 | 9.4 mm | 0.37 in | UL94 V-0 | 10A 5A | Solder | Housing/Shell (Unthreaded) | A DA | 2 | 7W2 | Nickel Plated Steel | Flash | Shielded | ||||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | 2 | Receptacle Female Sockets | Combo D-Sub | Signal and Power | Gold | 7 | 5 | 2 | 9.4 mm | 0.37 in | UL94 V-0 | Solder | 4-40 | A DA | 2 | 7W2 | Flash | Board Lock Mounting Brackets | 5 A 30 A |
