CB1.17LL Series
Manufacturer: Lighthorse Technologies, Inc
Beta
⌘K
CBL ASSY IPEX MHF1 PLUG-PLG 7.5"
| Part | 2nd Connector | 1st Connector | Style | 2nd Connector Mounting Type | Overall Impedance | 2nd Contact Gender | Cable Impedance | Features | 1st Contact Gender | Frequency - Max [Max] | Color | Operating Temperature [Max] | Operating Temperature [Min] | 1st Connector Mounting Type | Length | Length | Cable Type | Cable Type [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

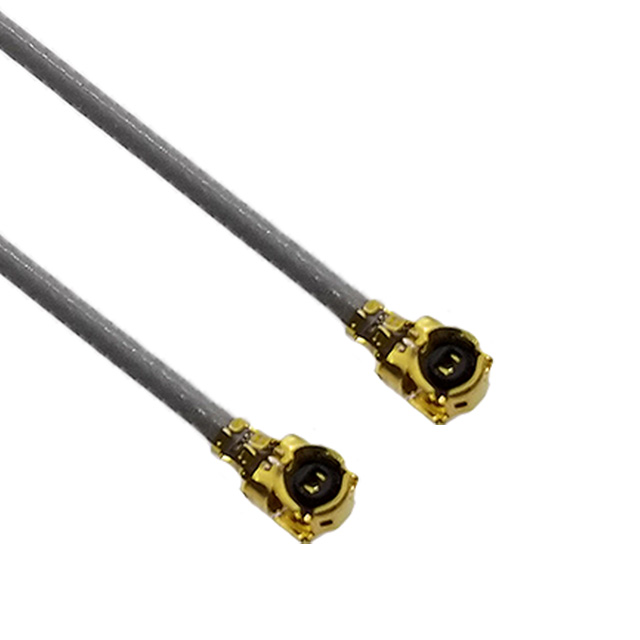

 Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Opposite Orientation Shielded | Female | 9 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | 7.5 in | 190.5 mm | LL Coaxial Cable | 1.17 mm | ||

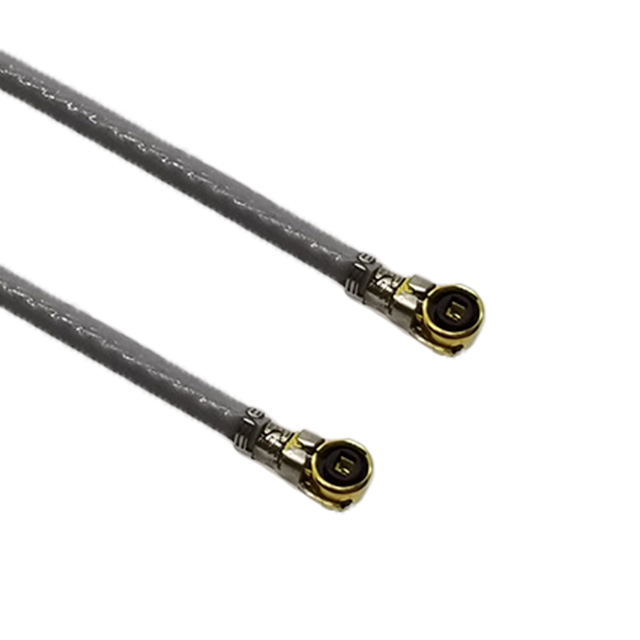

 Lighthorse Technologies, Inc | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Opposite Orientation Shielded | Female | 12 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | LL Coaxial Cable | 1.17 mm | 63.5 mm | 2.5 in | ||
Lighthorse Technologies, Inc | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Opposite Orientation Shielded | Female | 12 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | 10 in | 254 mm | LL Coaxial Cable | 1.17 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Opposite Orientation Shielded | Female | 9 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | 2 in | 50.8 mm | LL Coaxial Cable | 1.17 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) I-PEX MHF1 Plug Right Angle | I-PEX MHF1 Plug I-PEX MHF1 Plug Right Angle Right Angle U.FL (UMCC) | I-PEX MHF1 I-PEX MHF1 to I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC) | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Shielded | Female | 9 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | 7 in | 177.8 mm | LL Coaxial Cable | 1.17 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Opposite Orientation Shielded | Female | 9 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | 3 in | 76.2 mm | LL Coaxial Cable | 1.17 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Opposite Orientation Shielded | Female | 12 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | 7.5 in | 190.5 mm | LL Coaxial Cable | 1.17 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Shielded | Female | 12 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | 5 in | 127 mm | LL Coaxial Cable | 1.17 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 Plug Right Angle U.FL (UMCC) IPEX MHF1 Plug Right Angle | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Opposite Orientation Shielded | Female | 9 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | 7 in | 177.8 mm | LL Coaxial Cable | 1.17 mm | ||
Lighthorse Technologies, Inc | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L Plug Right Angle IPEX MHF4L Plug Right Angle | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | Free Hanging (In-Line) | 50 Ohms | Female | 50 Ohms | Shielded | Female | 12 GHz | Gray | 90 °C | -40 C | Free Hanging (In-Line) | 7.5 in | 190.5 mm | LL Coaxial Cable | 1.17 mm |
