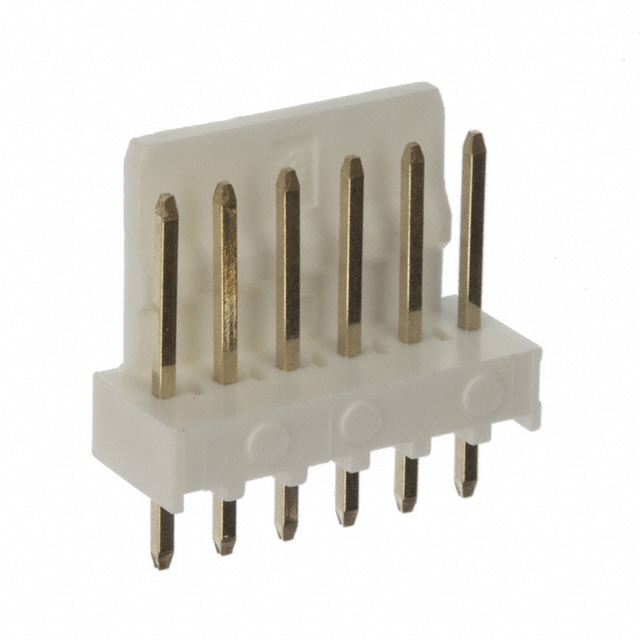

002229 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Insulation Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Material	Contact Type	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Number of Positions	Contact Shape	Shrouding	Number of Positions Loaded	Style	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Color	Termination	Fastening Type	Number of Rows
Molex 0022292141	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header	14	Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1

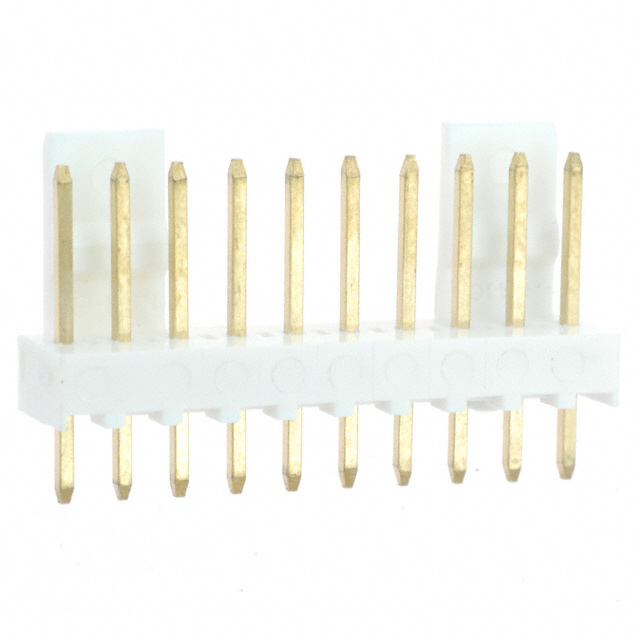

Molex 0022292101	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header	10	Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1

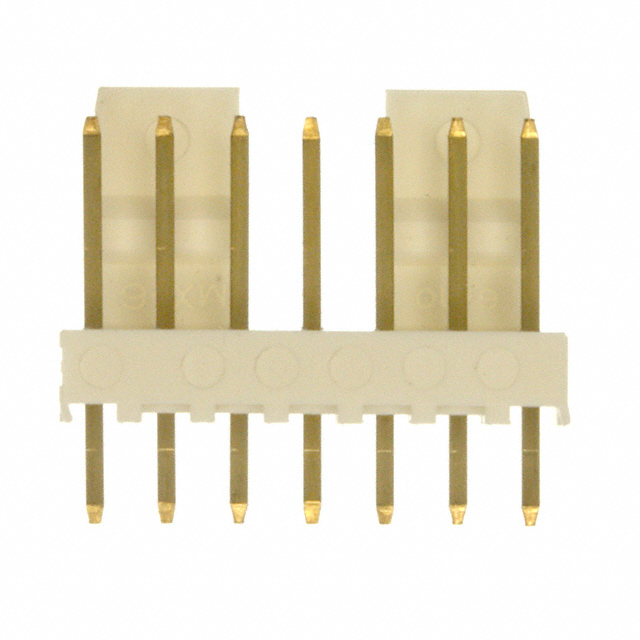

Molex 0022292071	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header	7	Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1
Molex 0022292021	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header	2	Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1
Molex 0022292131	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header	13	Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1

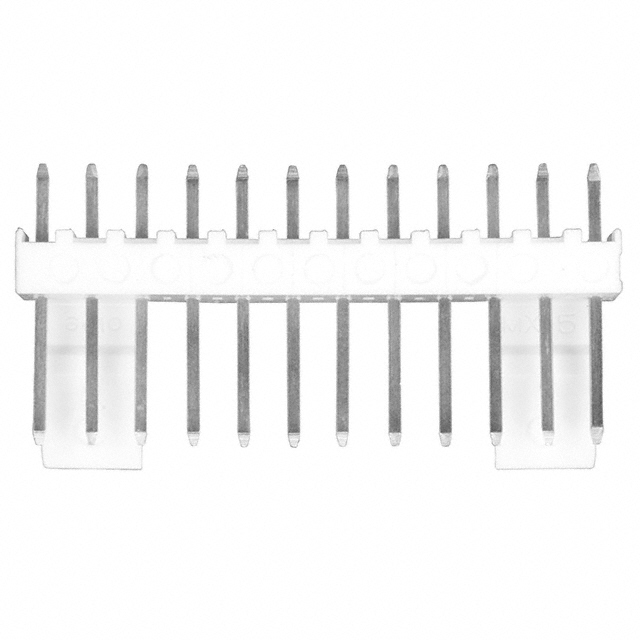

Molex 0022292121	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header	12	Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1
Molex 0022292161	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header	16	Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1
Molex 0022292151	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header	15	Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1

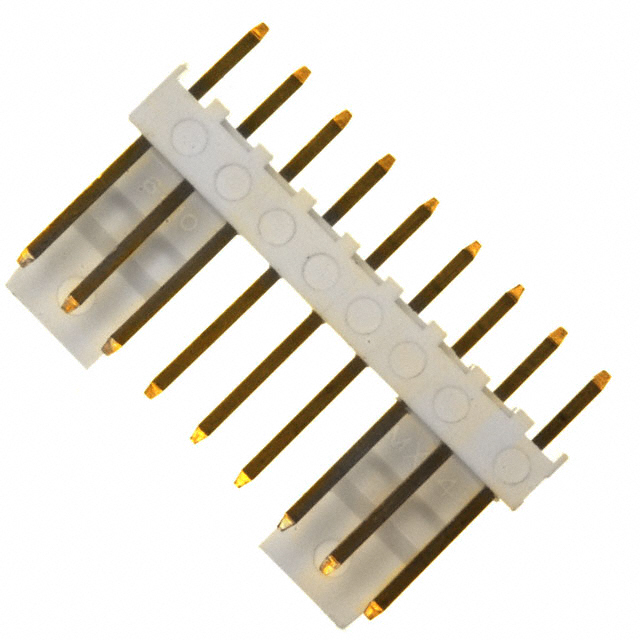

Molex 0022292091	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header	9	Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1

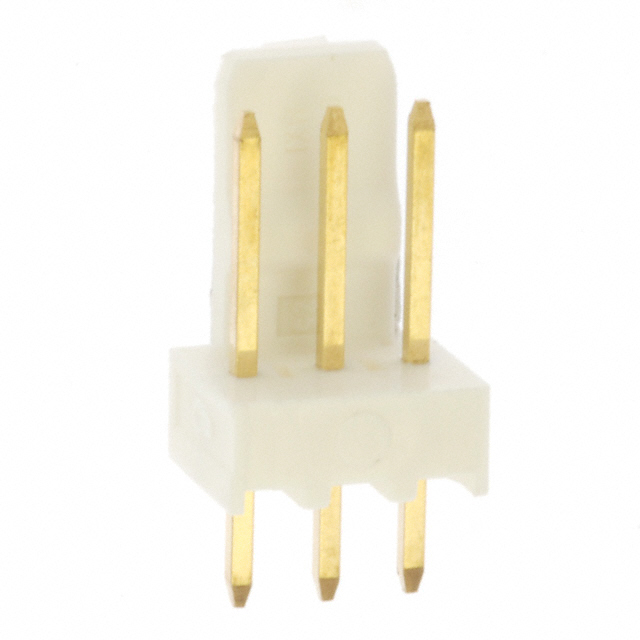

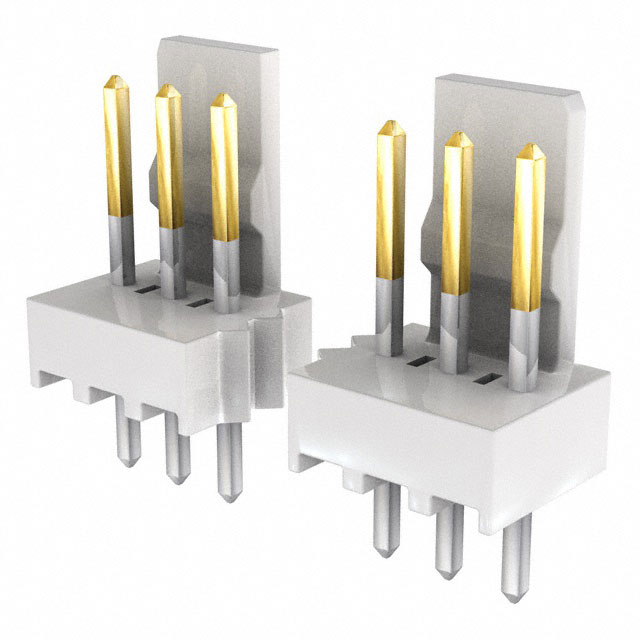

Molex 0022292031	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	3.56 mm	0.14 in	Nylon Polyamide (PA)	Through Hole	0.51 µm	20 µin	7.49 mm	0.295 in	Gold	Brass	Male Pin	Tin	0.461 in	11.7 mm	Header		Square	Shrouded - 1 Wall	All	Board to Cable/Wire	0.56 in	14.22 mm	0.1 "	2.54 mm	UL94 V-0	Natural	Solder	Friction Lock	1
