129463 Series
Manufacturer: Belden Inc.
Beta
⌘K

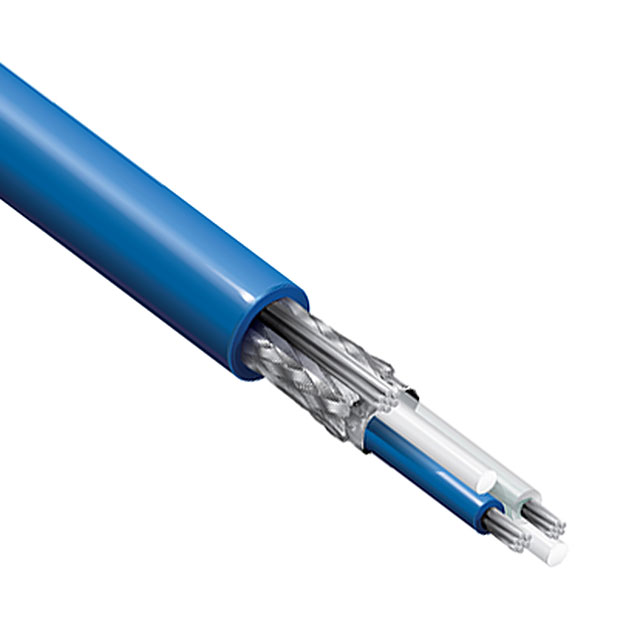

CABLE TWINAXIAL 20AWG
| Part | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | VoP, Velocity of Propagation | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Cable Type | Shield Type | Jacket (Insulation) Material | Impedance | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 55 % 100 % | 0.076 in | 1.93 mm | Copper Tinned | 66 | Aluminum Copper Tinned | 60 °C | -40 C | 304.8 m | 1000 ft | Twinaxial | Braid Foil | Poly-Vinyl Chloride (PVC) | 120 Ohms | 7 Strands 28 AWG | 0.238 " | 6.05 mm | 20 AWG | Blue |
Belden Inc. | 55 % 100 % | 0.076 in | 1.93 mm | Copper Tinned | 66 | Aluminum Copper Tinned | 60 °C | -40 C | Twinaxial | Braid Foil | Poly-Vinyl Chloride (PVC) | 120 Ohms | 7 Strands 28 AWG | 0.238 " | 6.05 mm | 20 AWG | Blue |
