65801 Series

Catalog

CONN FFC FPC RCPT 23POS 2.54MM

...

Part	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Cable End Type	Material Flammability Rating	Flat Flex Type	Housing Color	Contact Material	Contact Finish	Pitch [x]	Pitch [x]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Actuator Color	Locking Feature	Termination	Mounting Type	Current Rating (Amps)	Connector/Contact Type	FFC, FCB Thickness	FFC, FCB Thickness [z]

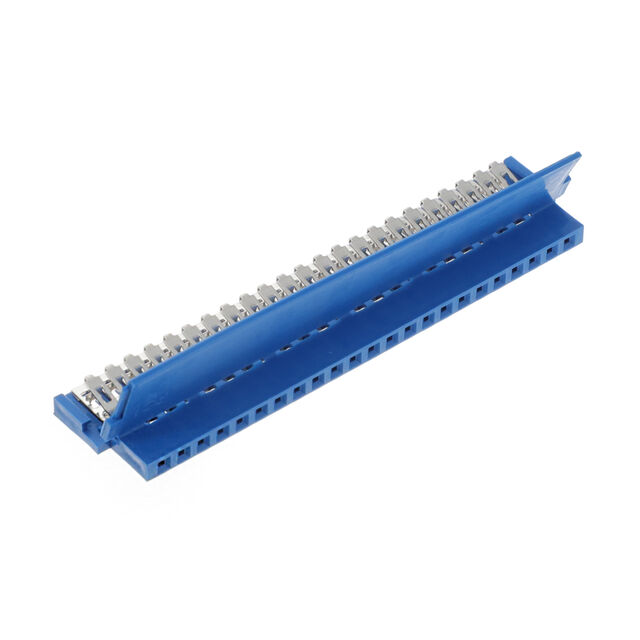

Amphenol ICC (FCI) 65801-023LF	Thermoplastic	2.54 µm	100 µin	500 V	Notched	UL94 V-0	FFC FPC	Blue	Copper Nickel Alloy	Tin	2.54 mm	0.1 in	Solder Retention Zero Insertion Force (ZIF)	-65 ░C	105 ░C	23	Gray	Slide Lock	IDC	Free Hanging (In-Line)	2 A	Receptacle	0.33 mm
Amphenol ICC (FCI) 65801-143LF	Thermoplastic	0.76 Ám	30 Áin	500 V		UL94 V-0	CIC	Blue	Copper Nickel Alloy	Gold or Gold GXT™	2.54 mm	0.1 in		-65 ░C	105 ░C	14			IDC	Free Hanging (In-Line)	2 A	Receptacle	0.33 mm
Amphenol ICC (FCI) 65801-056LF	Thermoplastic	0.76 Ám	30 Áin	500 V		UL94 V-0	FFC FPC	Blue	Copper Nickel Alloy	Gold or Gold GXT™	2.54 mm	0.1 in		-65 ░C	105 ░C	27			IDC	Free Hanging (In-Line)	2 A	Receptacle	0.33 mm
Amphenol ICC (FCI) 65801-057LF	Thermoplastic	0.76 Ám	30 Áin	500 V	Tapered	UL94 V-0	FFC FPC	Blue	Copper Nickel Alloy	Gold or Gold GXT™	2.54 mm	0.1 in	Solder Retention	-65 ░C	105 ░C	28	Beige	Flip Lock	IDC	Free Hanging (In-Line)	2 A	Receptacle	0.2 mm
Amphenol ICC (FCI) 65801-131	Thermoplastic	2.54 µm	100 µin	500 V		UL94 V-0	CIC	Blue	Copper Nickel Alloy	Tin	2.54 mm	0.1 in		-65 ░C	105 ░C	31			IDC	Free Hanging (In-Line)	2 A	Receptacle	0.33 mm
Amphenol ICC (FCI) 65801-036	Thermoplastic	0.76 Ám	30 Áin	500 V		UL94 V-0	FFC FPC	Blue	Copper Nickel Alloy	Gold or Gold GXT™	2.54 mm	0.1 in		-65 ░C	105 ░C	7			IDC	Free Hanging (In-Line)	2 A	Receptacle	0.33 mm

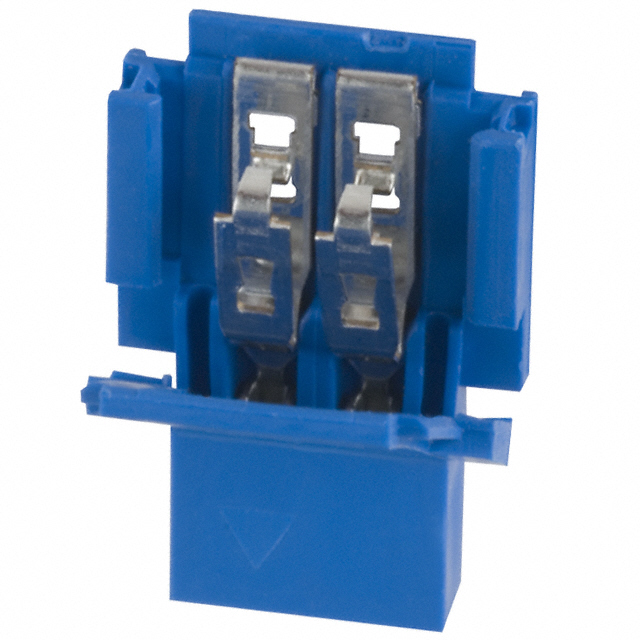

Amphenol ICC (FCI) 65801-002LF	Thermoplastic	2.54 µm	100 µin	500 V	Notched	UL94 V-0	FFC FPC	Blue	Copper Nickel Alloy	Tin	2.54 mm	0.1 in	Solder Retention Zero Insertion Force (ZIF)	-65 ░C	105 ░C	2	Gray	Slide Lock	IDC	Free Hanging (In-Line)	2 A	Receptacle	0.33 mm

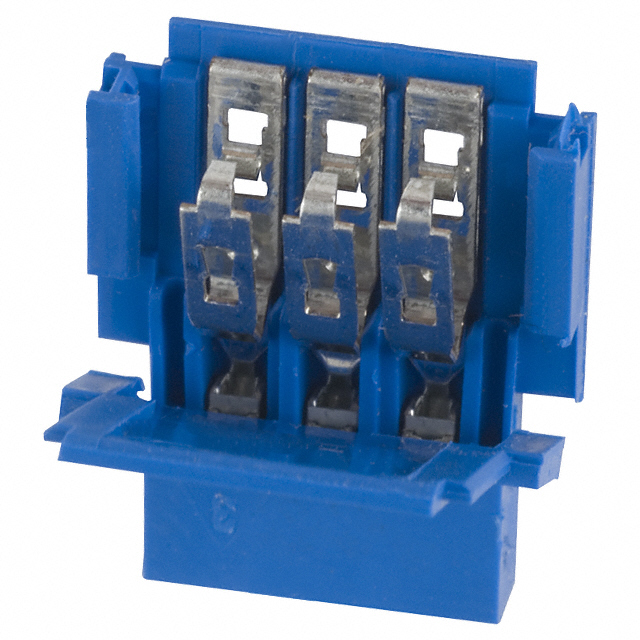

Amphenol ICC (FCI) 65801-003LF	Thermoplastic	2.54 µm	100 µin	500 V	Straight Tapered	UL94 V-0	FFC FPC	Blue	Copper Nickel Alloy	Tin	2.54 mm	0.1 in	Solder Retention Zero Insertion Force (ZIF)	-65 ░C	105 ░C		Black	Slide Lock	IDC	Free Hanging (In-Line)	2 A	Receptacle		0.3 mm 0.33 mm
Amphenol ICC (FCI) 65801-118	Thermoplastic	2.54 µm	100 µin	500 V		UL94 V-0	CIC	Blue	Copper Nickel Alloy	Tin	2.54 mm	0.1 in		-65 ░C	105 ░C	18			IDC	Free Hanging (In-Line)	2 A	Receptacle	0.33 mm
Amphenol ICC (FCI) 65801-146	Thermoplastic	0.76 Ám	30 Áin	500 V		UL94 V-0	CIC	Blue	Copper Nickel Alloy	Gold or Gold GXT™	2.54 mm	0.1 in		-65 ░C	105 ░C				IDC	Free Hanging (In-Line)	2 A	Receptacle	0.33 mm
