3157-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

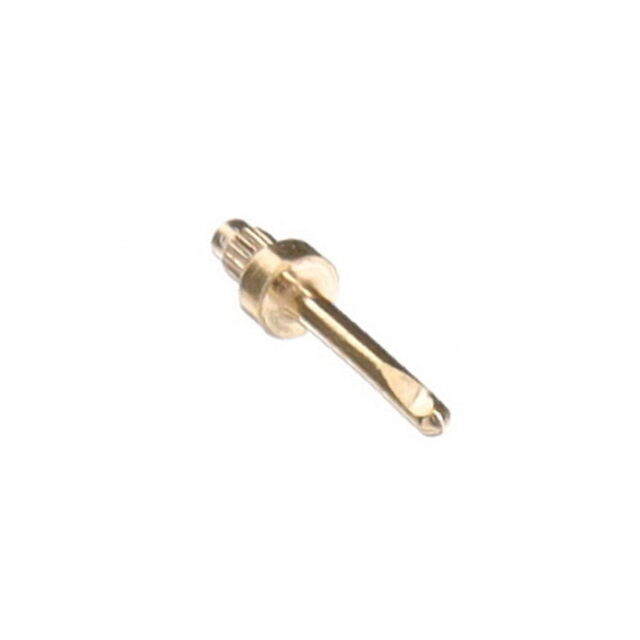

CONN PC PIN CIRC .023DIA GOLD
| Part | Terminal Type | Contact Finish | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Termination | Length - Overall | Length - Overall | Length - Above Flange [custom] | Length - Above Flange [custom] | Terminal Style | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | PC Pin | Gold | 0.58 mm | 0.023 in | Through Hole | 0.66 mm | 0.026 in | 0.018 in | 0.46 mm | Knurled Press-Fit | 0.19 in | 4.83 mm | 0.125 in | 3.18 mm | Single End | Brass Alloy | 20 µin | 0.51 µm | Non-Insulated | 0.045 in | 1.14 mm |
