PTH03060 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 0.8-2.5V 25W
| Part | Applications | Power (Watts) | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Number of Outputs | Package / Case | Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

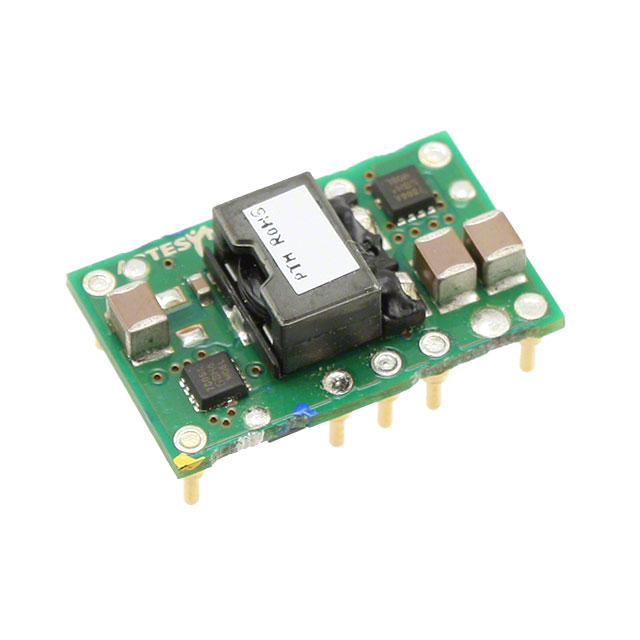

 ARTESYN / Advanced Energy | ITE (Commercial) | 25 W | 10 A | 85 °C | -40 C | Through Hole | 0.8 V | 2.5 V | 1 | 10-DIP Module | Non-Isolated PoL Module | 3.65 V | 2.95 V | 0.62 in | 0.35 " | 25.4 mm | 8.9 mm | 1 in | 15.7 mm | 93 % | Remote On/Off SCP UVLO |

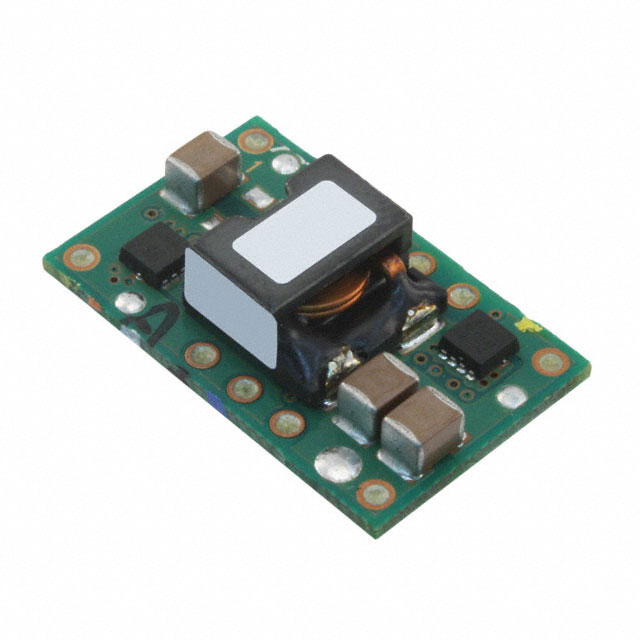

 ARTESYN / Advanced Energy | ITE (Commercial) | 25 W | 10 A | 85 °C | -40 C | Surface Mount | 0.8 V | 2.5 V | 1 | 10-SMD Module | Non-Isolated PoL Module | 3.65 V | 2.95 V | 0.62 in | 0.35 " | 25.4 mm | 8.9 mm | 1 in | 15.7 mm | 93 % | Remote On/Off SCP UVLO |
