19307101 Series
Manufacturer: HARTING
Beta
⌘K
10B HOOD TOP ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, M25 - BLACK
| Part | Thread Size | Style | Ingress Protection | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Size | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Lock Location | Housing Material | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

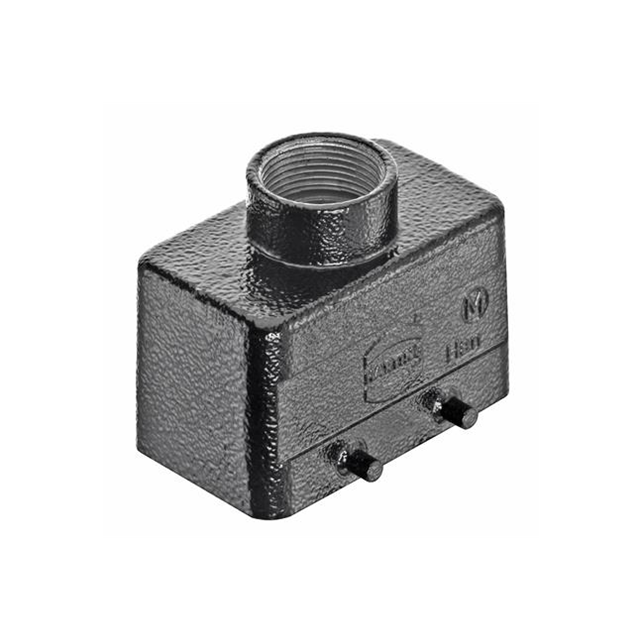

 HARTING | M25 | Top Entry | IP65 IP66 IP67 | Powder Coated | 125 °C | -40 C | 10B | 72.6 mm | 1.772 in | 1.693 " | 43 mm | 2.858 in | 45 mm | Locking Clip (2) on Base Bottom | Aluminum Die Cast | Hood | Black |

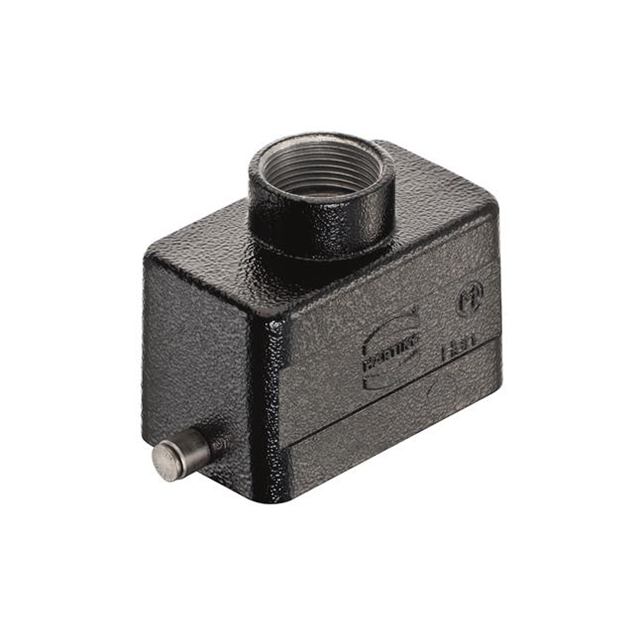

 HARTING | M25 | Top Entry | IP65 - Dust Tight Water Resistant | Powder Coated | 125 °C | -40 C | 10B | 72.6 mm | 1.772 in | 1.693 " | 43 mm | 2.858 in | 45 mm | Locking Clip (1) on Base Bottom | Aluminum Die Cast | Hood | Black |
