280385 Series

Catalog

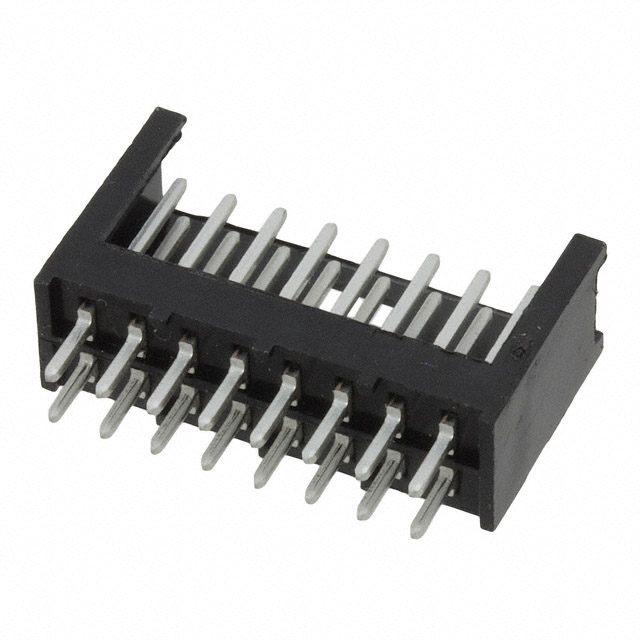

CONN HEADER VERT 16POS 2.54MM

Part	Mounting Type	Voltage Rating	Connector Type	Overall Contact Length	Overall Contact Length	Contact Material	Contact Finish - Post	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Positions Loaded	Number of Positions	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Shrouding	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Height [z]	Insulation Height [z]
TE Connectivity Raychem Cable Protection 280385-1	Through Hole	40 V	Header	14.3 mm	0.563 "	Brass	Tin	Solder	3 A	118.1 µin	3 µm	Black	3.5 mm	0.138 in	Detent Lock	All	16	0.1 in	2.54 mm	UL94 V-0	Thermoplastic	2.54 mm	0.1 in	Board to Board Cable	Shrouded - 3 Wall	Square	3 µm	118.1 µin	6.6 mm	0.26 in	2	-40 °C	80 C	Male Pin	12.6 mm	0.496 in
