277149 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

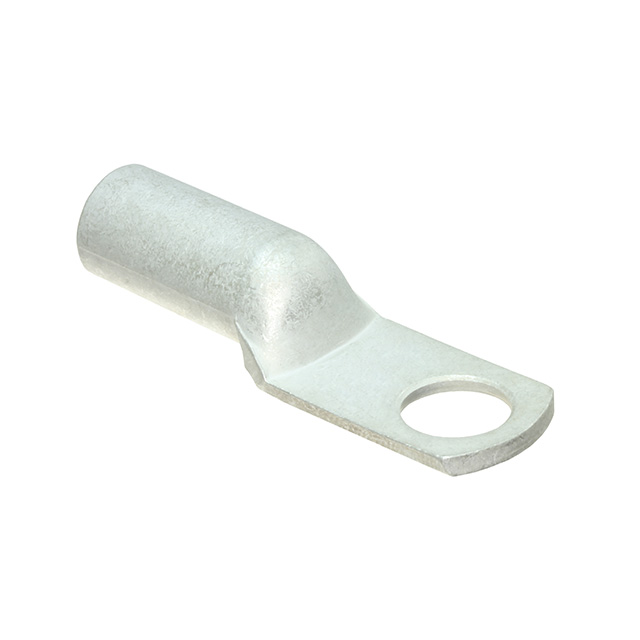

CONN RING FLAT 4AL 6CU #3/8
| Part | Insulation | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Wire Gauge | Terminal Type | Contact Finish | Termination | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Width - Outer Edges [x] | Width - Outer Edges [x] | Thickness | Thickness | Contact Material | Mounting Type | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Non-Insulated | 0.276 " 7.01 mm | 0.305 " 7.75 mm | 4 AWG (Al) 6 AWG (Cu) | Flat Sided Tubular (Battery Lugs) | Tin | Crimp | 2 in | 50.8 mm | 3/8 Stud | 0.627 in | 15.92 mm | 2.08 mm | 0.082 in | Copper | Free Hanging (In-Line) | |
TE Connectivity Aerospace, Defense and Marine | Non-Insulated | 0.276 " 7.01 mm | 0.305 " 7.75 mm | 4 AWG (Al) 6 AWG (Cu) | Flat Sided Tubular (Battery Lugs) | Tin | Crimp | 2 in | 50.8 mm | 0.627 in | 15.92 mm | 2.08 mm | 0.082 in | Copper | Free Hanging (In-Line) | 0.3125 Stud |
