UCC24624 Series
Manufacturer: Texas Instruments
Beta
⌘K
HIGH-FREQUENCY, DUAL SYNCHRONOUS RECTIFIER CONTROLLER FOR LLC CONVERTERS
| Part | Gate Type | Driven Configuration | Supplier Device Package | Channel Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Rise / Fall Time (Typ) | Number of Drivers | Input Type | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Mounting Type | Package / Case | Package / Case | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Supplied Contents | Secondary Attributes | Function | Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | MOSFET (N-Channel) N-Channel MOSFET | Low-Side | 8-SOIC | Independent | 4.25 V | 26 V | 19 ns 23 ns | 2 | Non-Inverting | 1.5 A | 4 A | Surface Mount | 0.154 in | 8-SOIC | 3.9 mm | -40 C | 125 °C | ||||||
Texas Instruments | MOSFET (N-Channel) N-Channel MOSFET | Low-Side | 8-SOIC | Independent | 4.25 V | 26 V | 19 ns 23 ns | 2 | Non-Inverting | 1.5 A | 4 A | Surface Mount | 0.154 in | 8-SOIC | 3.9 mm | -40 C | 125 °C | ||||||

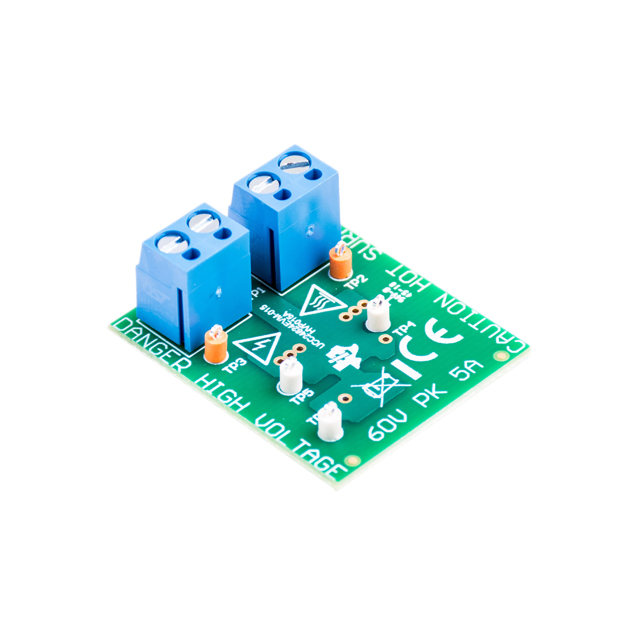

 Texas Instruments | Board(s) | On-Board Test Points | Gate Driver | Power Management | Board(s) | UCC24624 |
