Schaffner FN3256H Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FLTR 480VAC 160A CHASS MNT

Part	Voltage - Rated AC	Frequency - Operating	Approval Agency	Filter Type	Configuration	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)	Current	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC (Phase to Phase)	Termination Style	Applications
TE Connectivity AMP Connectors FN3256H-160-40	480 V	60 Hz	CSA ENEC UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	160 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose

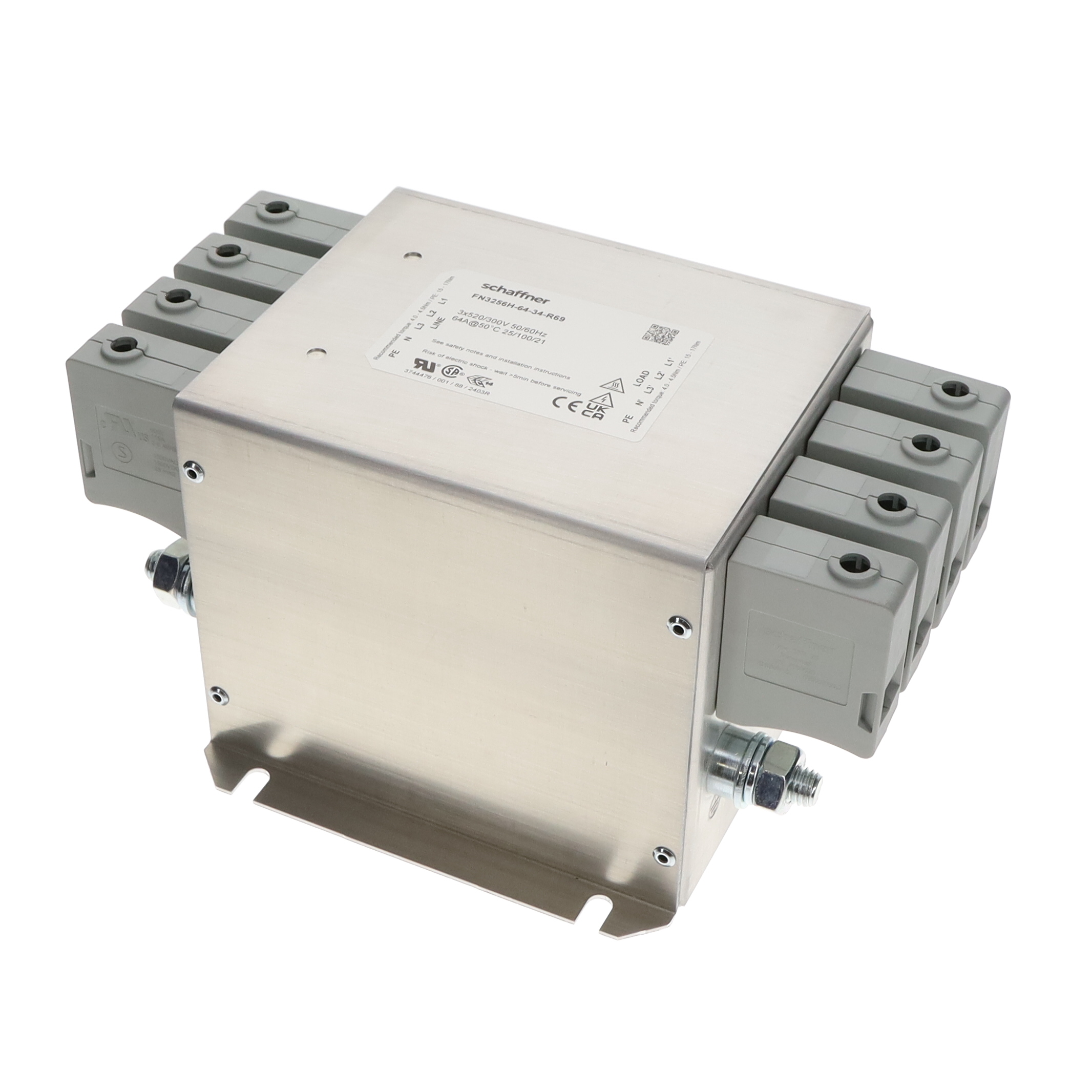

TE Connectivity AMP Connectors FN3256H-64-34-R69		60 Hz	CE CSA ENEC UKCA UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	64 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose

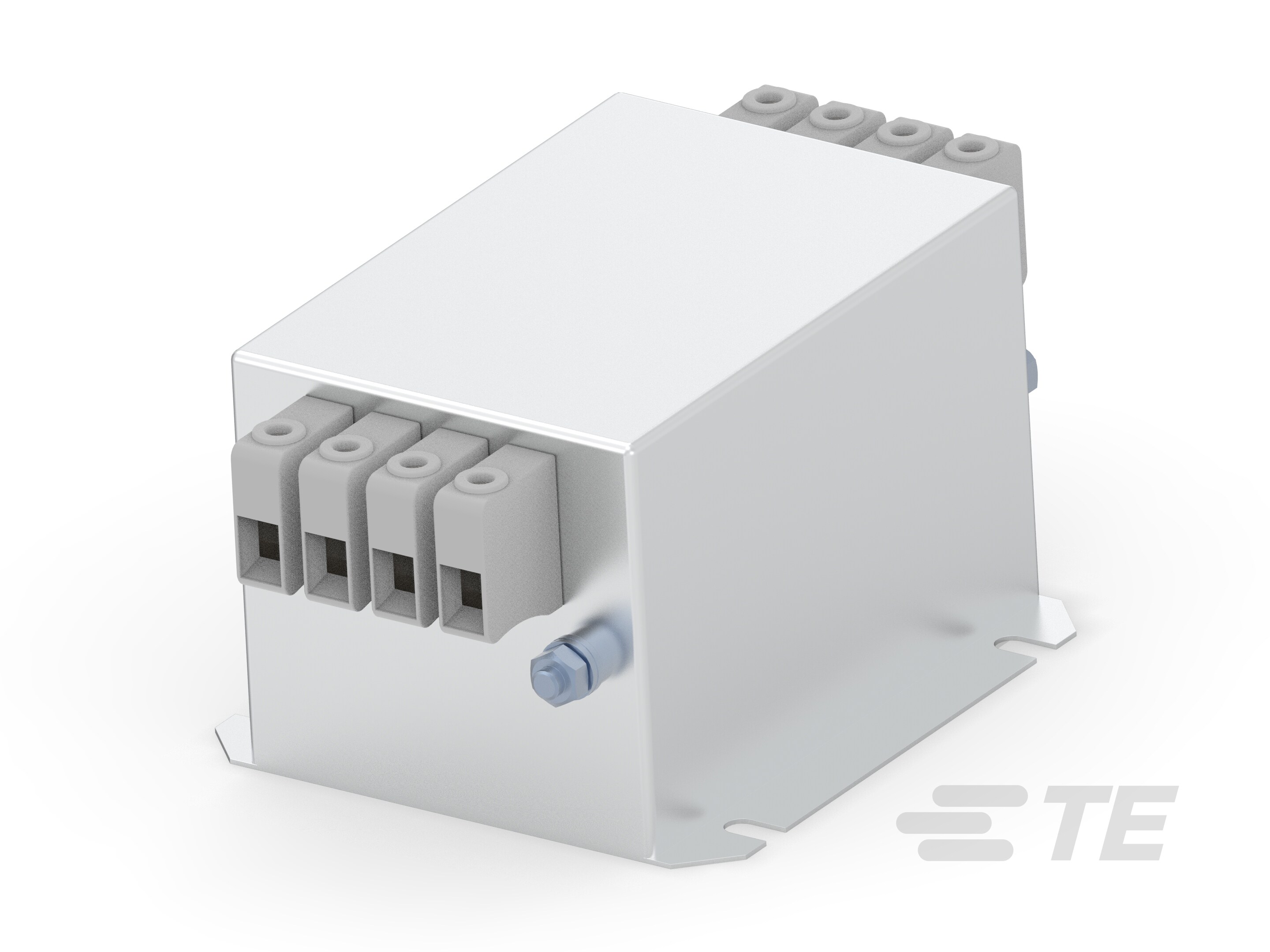

TE Connectivity AMP Connectors FN3256H-36-33	480 V	60 Hz	CSA ENEC UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	36 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-36-33-R69		60 Hz	CE CSA ENEC UKCA UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	36 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-8-29	480 V	60 Hz	CSA ENEC UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	8 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose

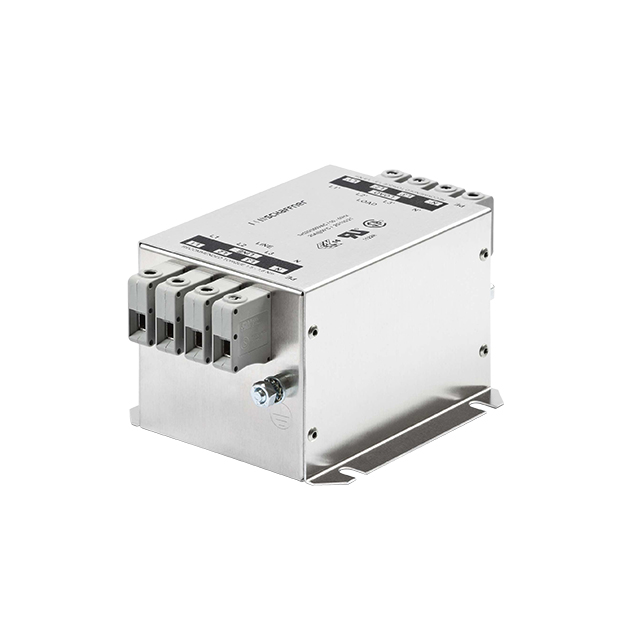

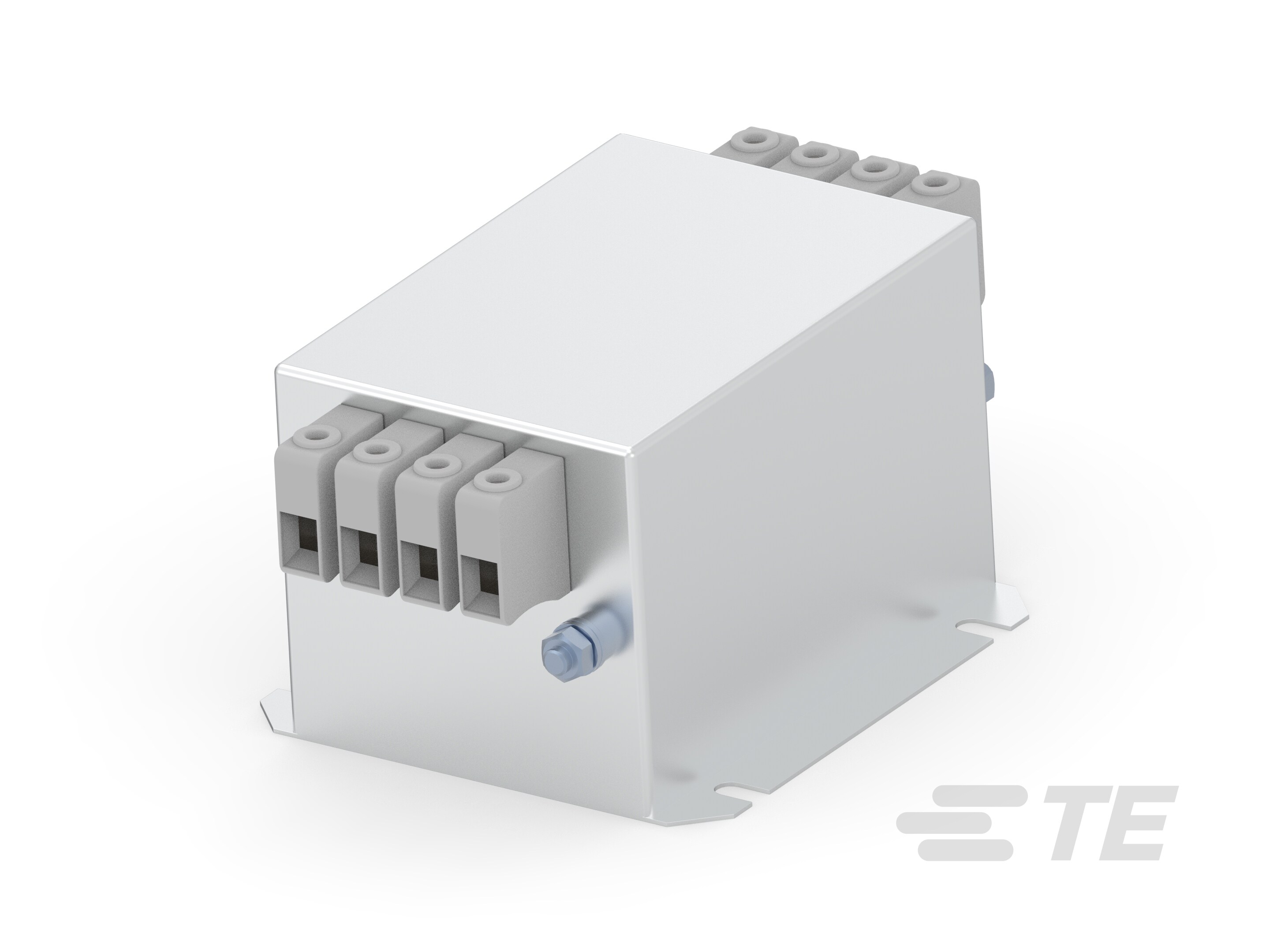

TE Connectivity AMP Connectors FN3256H-25-33	480 V	60 Hz	CSA ENEC UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	25 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-25-33-R69		60 Hz	CE CSA ENEC UKCA UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	25 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-64-34-R69		60 Hz	CE CSA ENEC UKCA UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	64 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-120-35	480 V	60 Hz	CSA ENEC UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	120 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-80-35-R69		60 Hz	CE CSA ENEC UKCA UR	Three Phase (Wye)	Single Stage	Chassis Mount	300 V	80 A	100 °C	-25 °C	520 V	Terminal Block	General Purpose
