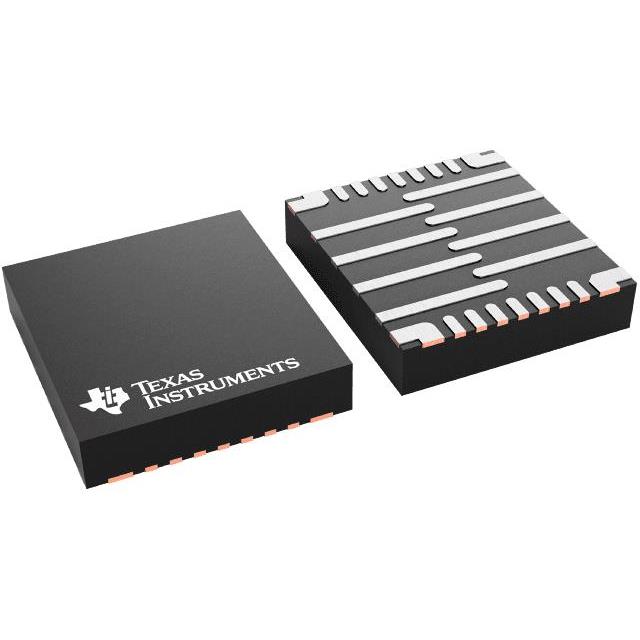

TPS25990 Series
2.9-V to 16-V, 0.79-mΩ, 60-A eFuse with digital telemetry controller
Manufacturer: Texas Instruments
Catalog
2.9-V to 16-V, 0.79-mΩ, 60-A eFuse with digital telemetry controller
Key Features
• Input operating voltage range: 2.9 V to 16 V20-V absolute maximum at inputWithstands up to –1 V at outputIntegrated low on-resistance FET: 0.79 mΩ (typ.)Rated for 50 A RMS and 60 A peak currentCan be used as a standalone eFuse or primary controller in parallel configurationSupports parallel connection of multiple eFuses for higher current supportActive device state synchronization and load sharing during start-up and steady-state for unlimited scalabilityPMBus® interface for telemetry, control, configuration and debugP IN/E IN/V IN/V OUT/I IN/temperature/fault monitoringPower cycle with a single commandOn-chip non-volatile configuration memoryBlackbox fault recording of multiple events with relative time-stamp and option to store on an external EEPROMRobust overcurrent protectionProgrammable overcurrent threshold (I OCP): 7 A to 50 A with accuracy of ±5% (max.)Circuit-breaker response during steady-state with a programmable transient blanking timer (OC_TIMER) to support peak load currentsActive current limit during start-up (I LIM)Robust short-circuit protectionFast-trip response (280 ns)Programmable and fixed thresholdsImmune to supply line transients — no nuisance trippingProgrammable overtemperature protection (OTP)Assured FET SOA: 8 W√sIntegrated FET health monitoring and reportingPrecise analog load current monitoring (IMON)±2% accuracy> 500-kHz analog bandwidthFast overvoltage protection with programmablethresholdProgrammable output slew rate control (dVdt)Programmable insertion delay timerProgrammable undervoltage lockout (UVLO)Analog die temperature monitor output (TEMP)Four configurable general purpose I/O pinsSmall footprint : QFN 4.5-mm × 5-mm, 0.6-mm pitch29-mil clearance between power and GND pins100% Pb FreeInput operating voltage range: 2.9 V to 16 V20-V absolute maximum at inputWithstands up to –1 V at outputIntegrated low on-resistance FET: 0.79 mΩ (typ.)Rated for 50 A RMS and 60 A peak currentCan be used as a standalone eFuse or primary controller in parallel configurationSupports parallel connection of multiple eFuses for higher current supportActive device state synchronization and load sharing during start-up and steady-state for unlimited scalabilityPMBus® interface for telemetry, control, configuration and debugP IN/E IN/V IN/V OUT/I IN/temperature/fault monitoringPower cycle with a single commandOn-chip non-volatile configuration memoryBlackbox fault recording of multiple events with relative time-stamp and option to store on an external EEPROMRobust overcurrent protectionProgrammable overcurrent threshold (I OCP): 7 A to 50 A with accuracy of ±5% (max.)Circuit-breaker response during steady-state with a programmable transient blanking timer (OC_TIMER) to support peak load currentsActive current limit during start-up (I LIM)Robust short-circuit protectionFast-trip response (280 ns)Programmable and fixed thresholdsImmune to supply line transients — no nuisance trippingProgrammable overtemperature protection (OTP)Assured FET SOA: 8 W√sIntegrated FET health monitoring and reportingPrecise analog load current monitoring (IMON)±2% accuracy> 500-kHz analog bandwidthFast overvoltage protection with programmablethresholdProgrammable output slew rate control (dVdt)Programmable insertion delay timerProgrammable undervoltage lockout (UVLO)Analog die temperature monitor output (TEMP)Four configurable general purpose I/O pinsSmall footprint : QFN 4.5-mm × 5-mm, 0.6-mm pitch29-mil clearance between power and GND pins100% Pb Free
Description
AI
The TPS25990 is an integrated, high-current circuit protection and power management device in a small package. The device provides multiple protection modes using very few external components and is a robust defense against overloads, short circuits, and excessive inrush current.
The integrated PMBus® interface allows a host controller to monitor, control and configure the system in real-time. Key system parameters can be read back by remote telemetry. Various protection, warning thresholds and coefficients can be configured through PMBus® or stored in non-volatile configuration memory. Blackbox fault recording feature helps in the debugging of field failures and returns.
The device can be used as a standalone eFuse, or connected as a primary controller in a parallel eFuse configuration for higher current support. All devices actively synchronize their operating state and share current during start-up and steady state to avoid over-stressing some of the devices which can result in premature or partial shutdown of the parallel chain.
An integrated fast and accurate sense analog load current monitor facilitates predictive maintenance and advanced dynamic platform power management techniques such as Intel PSYS and PROCHOT to maximize system throughput and power supply usage. This in conjunction with an integrated digital oscilloscope function and Blackbox, helps with predictive maintenance in critical systems.
The devices are characterized for operation over a junction temperature range of –40°C to +125°C.
The TPS25990 is an integrated, high-current circuit protection and power management device in a small package. The device provides multiple protection modes using very few external components and is a robust defense against overloads, short circuits, and excessive inrush current.
The integrated PMBus® interface allows a host controller to monitor, control and configure the system in real-time. Key system parameters can be read back by remote telemetry. Various protection, warning thresholds and coefficients can be configured through PMBus® or stored in non-volatile configuration memory. Blackbox fault recording feature helps in the debugging of field failures and returns.
The device can be used as a standalone eFuse, or connected as a primary controller in a parallel eFuse configuration for higher current support. All devices actively synchronize their operating state and share current during start-up and steady state to avoid over-stressing some of the devices which can result in premature or partial shutdown of the parallel chain.
An integrated fast and accurate sense analog load current monitor facilitates predictive maintenance and advanced dynamic platform power management techniques such as Intel PSYS and PROCHOT to maximize system throughput and power supply usage. This in conjunction with an integrated digital oscilloscope function and Blackbox, helps with predictive maintenance in critical systems.
The devices are characterized for operation over a junction temperature range of –40°C to +125°C.
