EEC-HZ Series

Catalog

CAP 4.7F -20% +40% 2.5V T/H

Part	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Package / Case	Tolerance [Max]	Tolerance [Min]	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Voltage - Rated	Lifetime @ Temp.	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

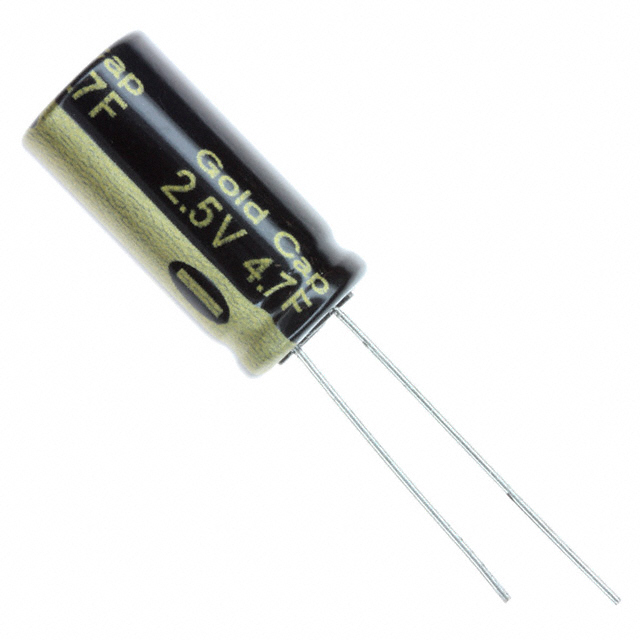

Panasonic Electronic Components EEC-HZ0E475	0.197 "	5 mm	300 mOhm	Can Radial	40 %	-20 %	PC Pins	0.394 in	10 mm	0.866 in	22 mm	-25 °C	70 °C	4.7 F	2.5 V	1000 Hrs	Through Hole

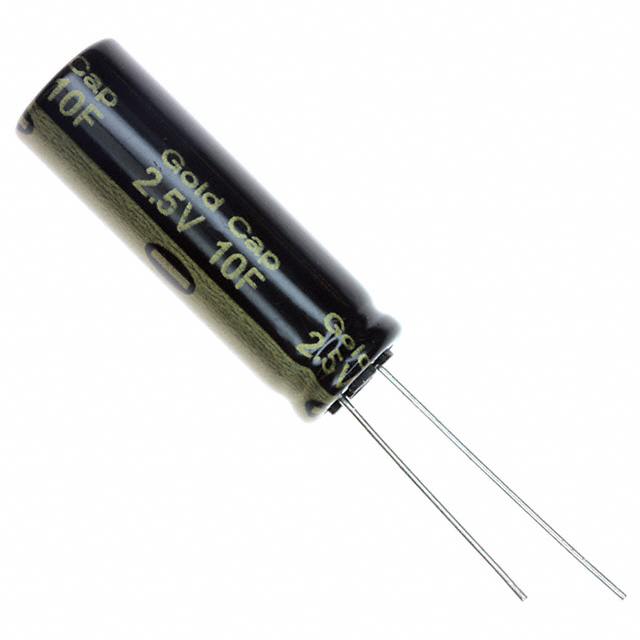

Panasonic Electronic Components EEC-HZ0E106	0.197 "	5 mm	200 mOhm	Can Radial	40 %	-20 %	PC Pins	0.394 in	10 mm			-25 °C	70 °C	10 F	2.5 V	1000 Hrs	Through Hole	1.26 in	32 mm

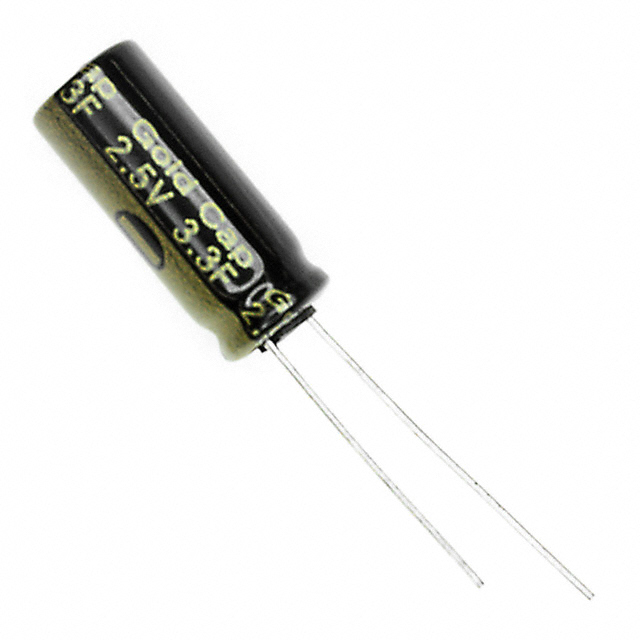

Panasonic Electronic Components EEC-HZ0E335	0.138 in	3.5 mm	300 mOhm	Can Radial	40 %	-20 %	PC Pins	0.315 in	8 mm	0.866 in	22 mm	-25 °C	70 °C	3.3 F	2.5 V	1000 Hrs	Through Hole
